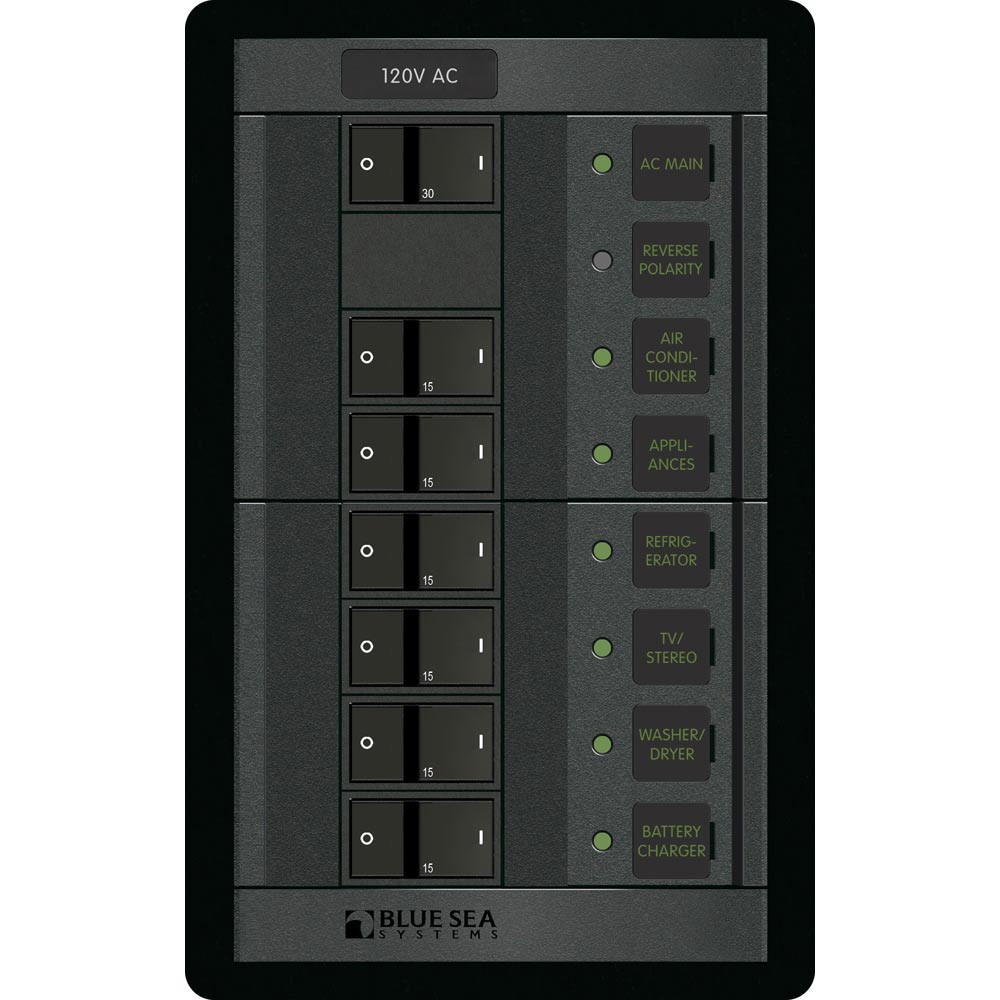

Blue Sea 1202 120V AC Main + 6 Positions Vertical 1202 Boat Sailboat Marine

DESCRIPTION:
120 Volt AC Main + 6 Position Vertical

Features:

• All circuit label positions are backlit

• "ON" indicating LEDs installed in all circuit positions

• Includes 4206-Square Format Label Set

Specifications:

• Positions: 6

• Nominal Voltage: 120V AC

• Maximum Amperage*: 100A

• Height: 7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 2.70lb (1.22kg)

Includes:
(6) 7403 A-Series Flat Rocker Circuit Breaker Single Pole 15A
(1) 4206 Basic AC Label Kit 30 Black Square Labels [LABEL]
(1) 7414 A-Series Flat Rocker Circuit Breaker Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

BRAND:
Blue Sea Systems

Internal Code: 57237
Manufacturer Part Number: 1202
