Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

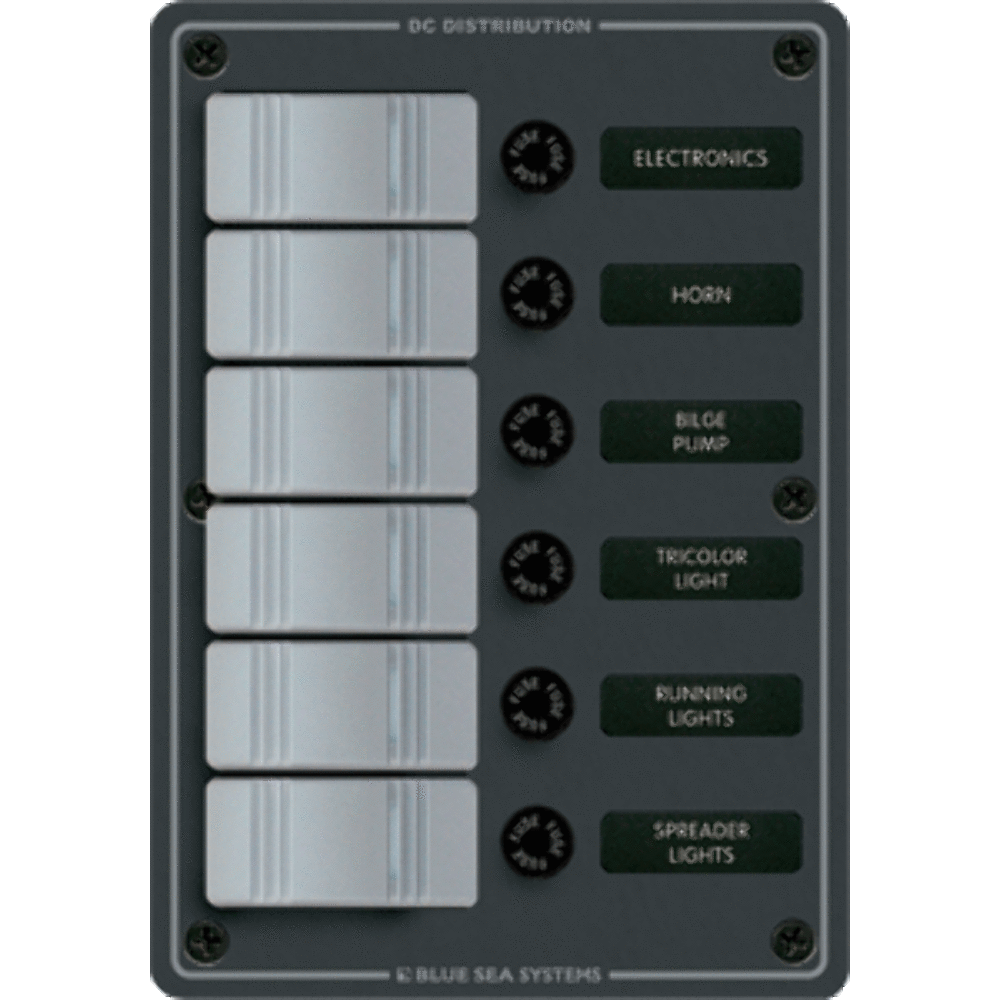

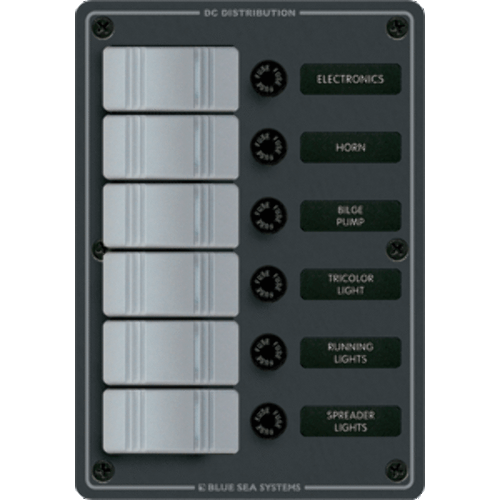

8053 Slate Grey 6 Position VerticalFeatures:Will withstand the water exposures normally encountered in above deck applications: salt spray rain hose washdowns momentary immersionsDesigned for flybridge and open cockpit applicationsON-OFF Contura SwitchesON indicating LEDs embedded in switchesWatertight mounting gasket includedCountersunk mounting holes throughoutTwo-part polyurethane slate gray finishIndustry standard height and widthMil-Spec chemical treatment via immersion to protect every surface detail from corrosionCompletely wired and ready to installSpecifications:Weatherproof: Water ResistantPositions: 6Nominal Voltage: 12v / 24v DCPanel Cumulative Rating: 45ASwitch Rating: 20A @ 12v DC / 15A @ 24v DCHeight: 7.5"Width: 5.25"Depth: 3"Included:(6) 5021 Panel Mount AGC/MDL Fuse Holder(1) 8030 Basic DC Panel Label Set 30 Labels(6) 8230 Contura Switch SPST Gray OFF-ON*NOTE: Waterproof panel labels are not backlitWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 8053
Internal Code: 19046
Brochure:
Instalation Guide:
Video:
