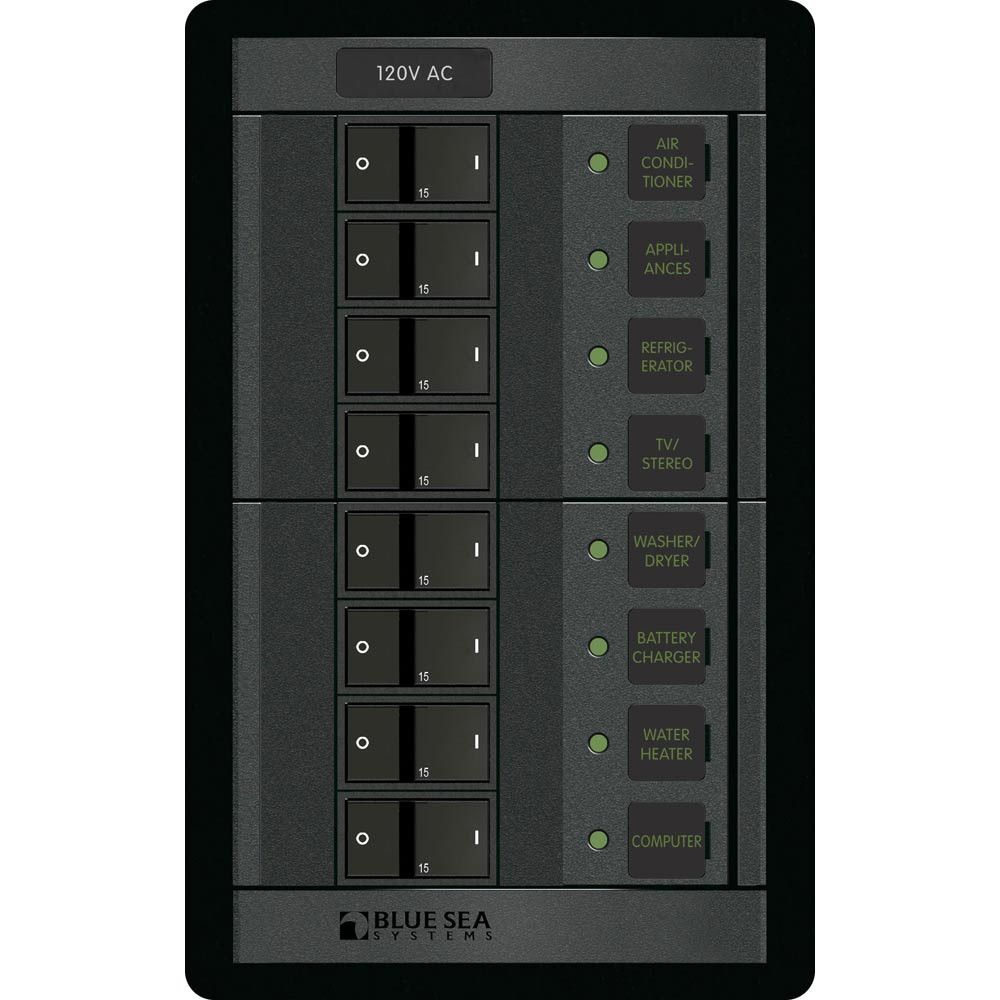

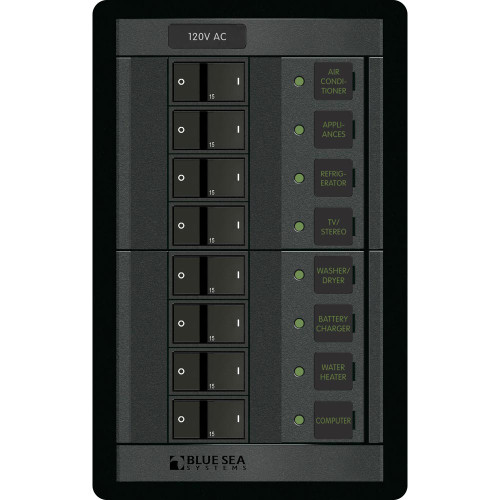

Blue Sea 1228 Electric Panel 8 Position 120V AC 100Amps Boat Sailboat Marine

DESCRIPTION:
120 Volt AC 8 Position

Features:

• All circuit label positions are backlit

• "ON" indicating LEDs installed in all circuit positions

• Includes 4206-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 120V AC

• Maximum Amperage*: 100A

• Height: 7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 2.68lb (1.22kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) 7403 A-Series Flat Rocker Circuit Breaker Single Pole 15A
(1) 4206 Basic AC Label Kit 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

BRAND:
Blue Sea Systems

Internal Code: 57233
Manufacturer Part Number: 1228
