Trident 6"ID 45Degree EPDM Exhaust Elbow Black Rubber Molded Wet 4 T-Bolt Clamp

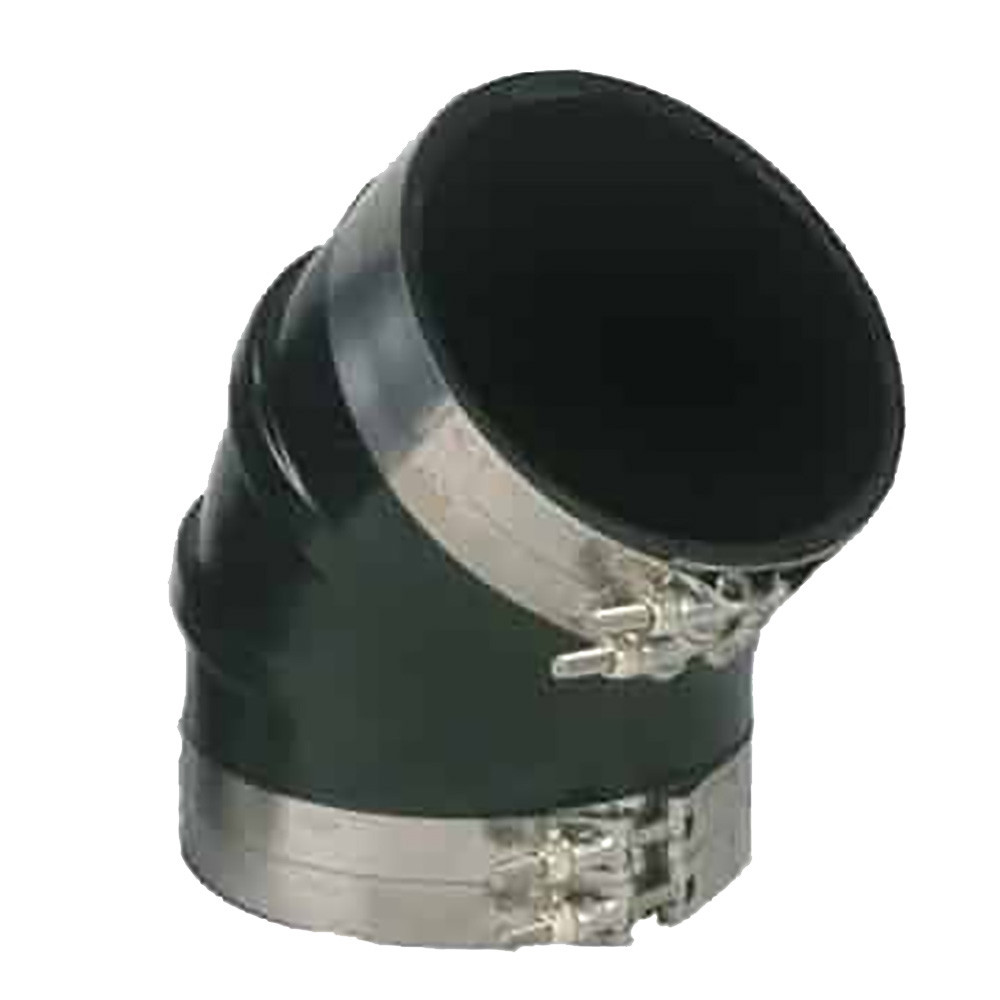

6" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6" I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6" I.D. and above
• Temperature Range: up to 250degF (121degC)

Specifications:

• Inner Diameter: (inch) 6" / (mm) 152.4
• Outer Diamter: (inch) 6.5" / (mm) 165.1
• A: (inch) 2" / (mm) 50.8
• B: (inch) 2" / (mm) 50.8
• C: (inch) 6.5" / (mm) 165
• W: (inch) 0.25" / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 1.95 / (Kg/Ea) 0.88
