Trident 4" ID 90Degree Elbow Wet Exhaust Blue Silicone Molded 4 T-Bolt Clamp

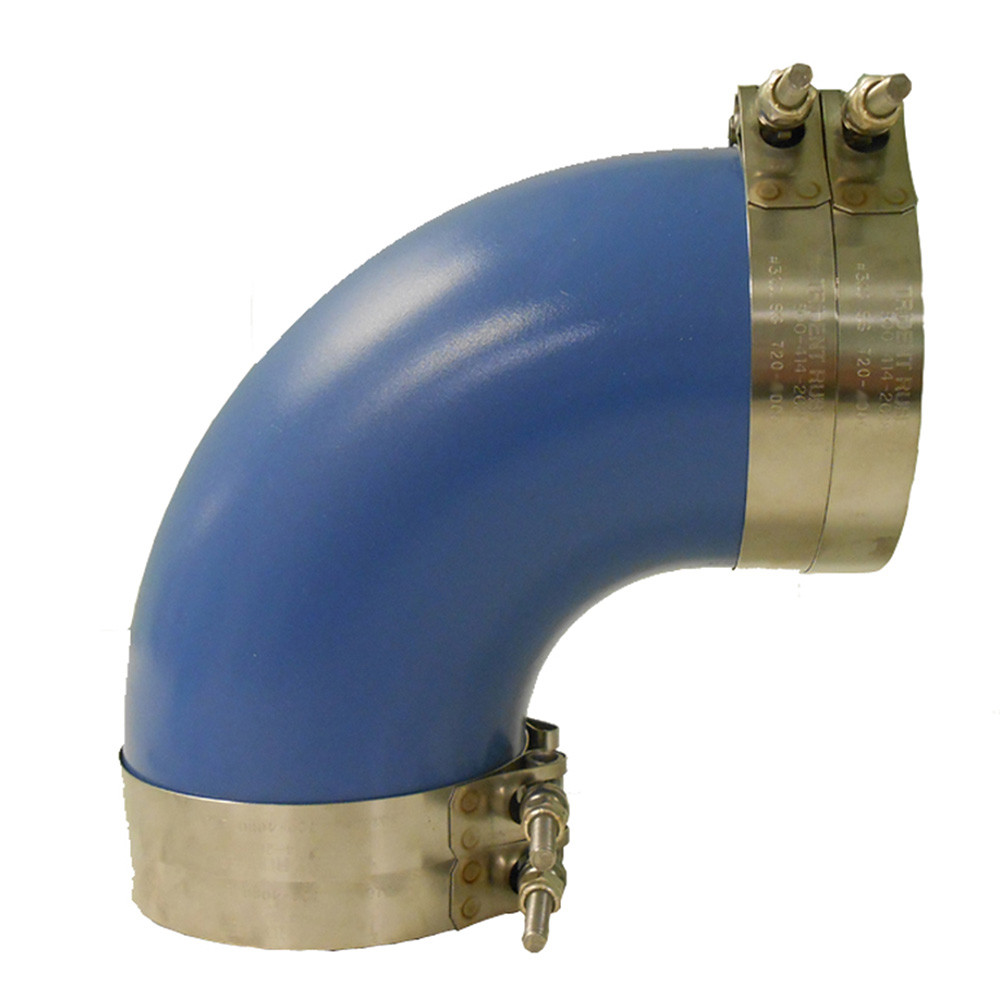

4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350degF (177degC) max continuous

Construction:

• Color: Blue
• Temperature Range: up to 350degF (177degC)

Specifications:

• Inner Diameter: (inch) 4" / (mm) 101.6
• A: (inch) 5.75" / (mm) 146
• B: (inch) 5.75" / (mm) 146
• C: (inch) 1.75" / (mm) 44.4
• D: (inch) 1.50" / (mm) 38.1
• R: (inch) 2" / (mm) 50.8
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 90 degrees
