Newmar SS Switch 7.5 INV AC Selector Switch SS SWITCH7.5INV Boat Sailboat Marine

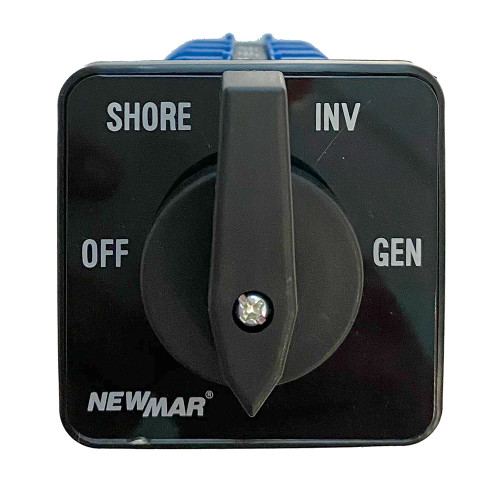

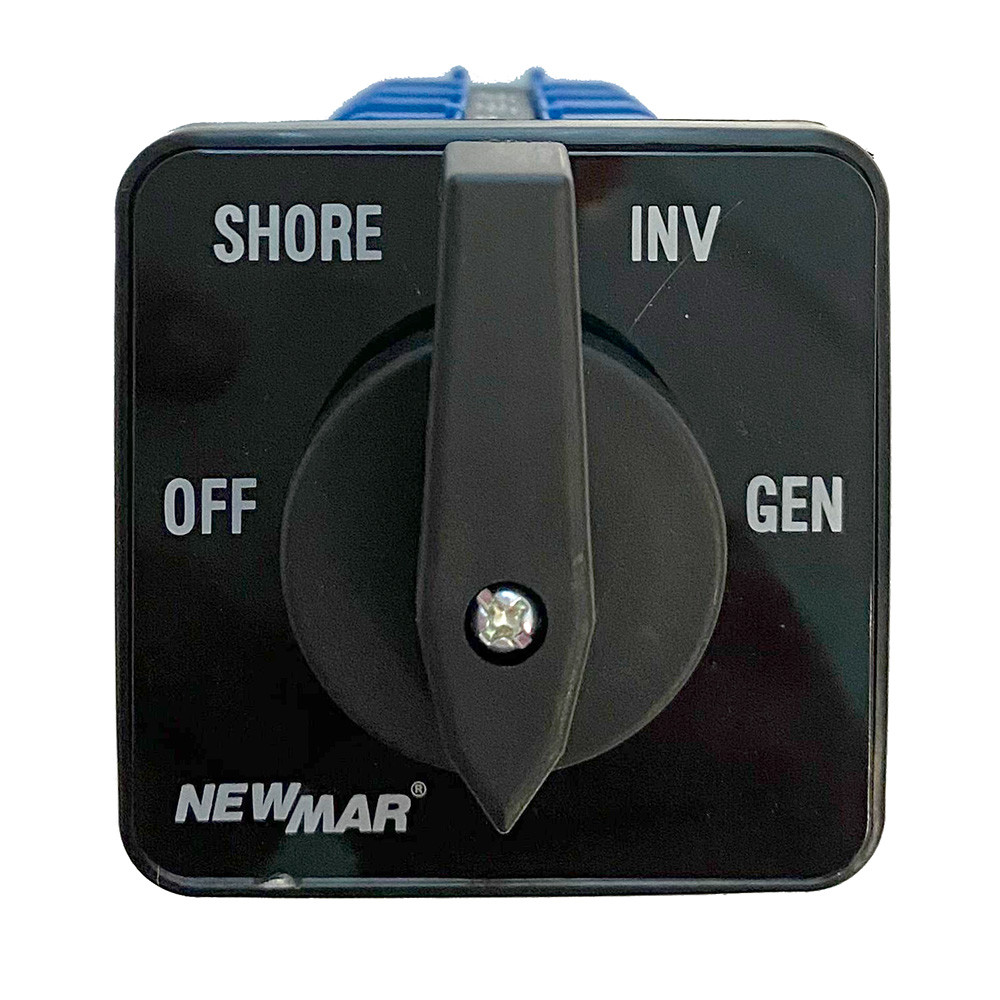

SS Switch 7.5 INV AC Selector Switch

This AC source selector switch is an essential item for any vessel with an on-board AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.

The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.

Features:

• May be rear-mounted in a panel with a thickness up to 1/4"
• For vessels with onboard generator and inverter

Specifications:

• Amperage @ 115/230V: 63
• Number of Poles: 2
• Switch Positions: 3 + “OFF"
• Standard Plate Markings: OFF-GEN-INV-SHORE
• Depth Dimensions: 3-1/2 in.
