Blue Sea 4163 SS Push Button Switch Off-(On) Red 10A 4163 Boat Sailboat Marine

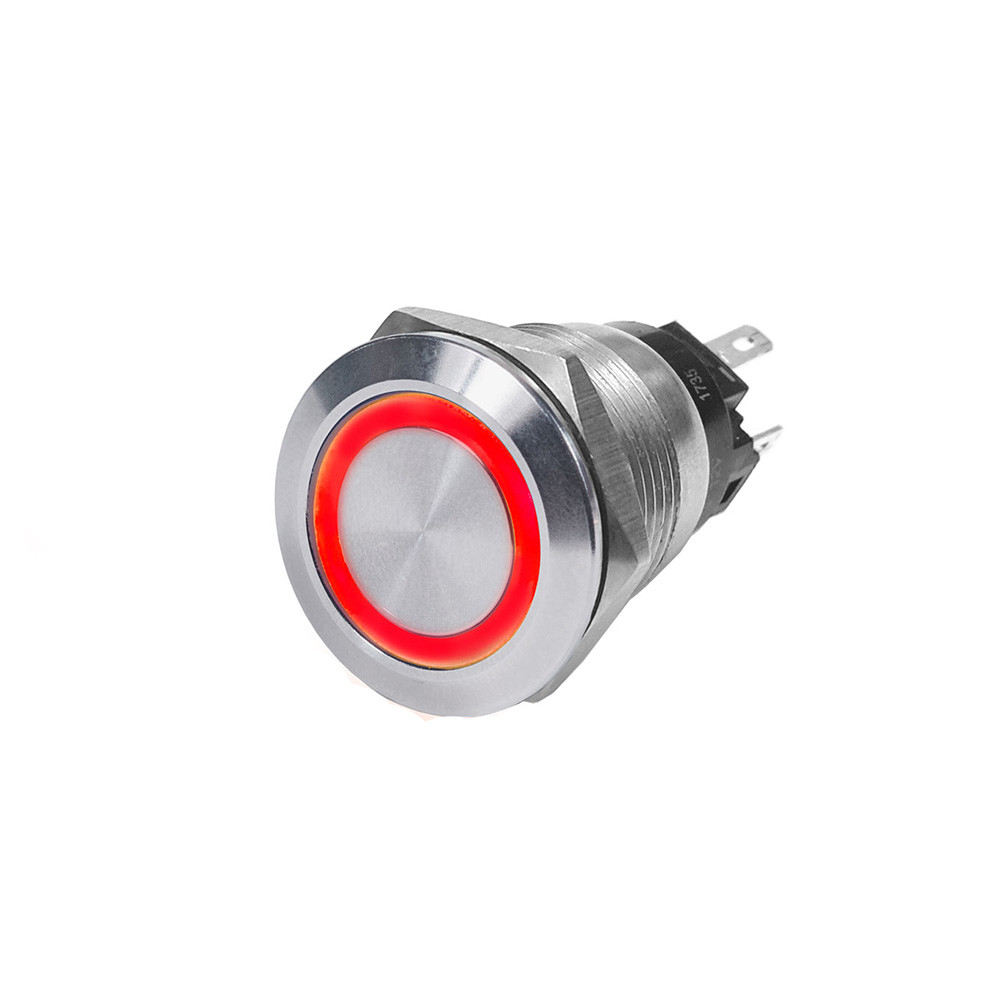

4163 SS Push Button Switch Off-(On) Red 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-(ON)
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10deg C
• Maximum Operating Temperature: 70deg C
• Minimum Storage Temperature: -55deg C
• Maximum Storage Temperature: 85deg C
• Illumination: Independent – Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 – 0.110inch Quick Connect terminals
