Marinco Wiper Motor 1000 Series 12V 1.5" Shaft 80Deg 36180 Boat Marine

$198.58

SKU:

SD00018533

Condition:

New

Shipping:

Add To Cart To Calculate

Quantity:

Product Description

BRAND: Marinco

DESCRIPTION:

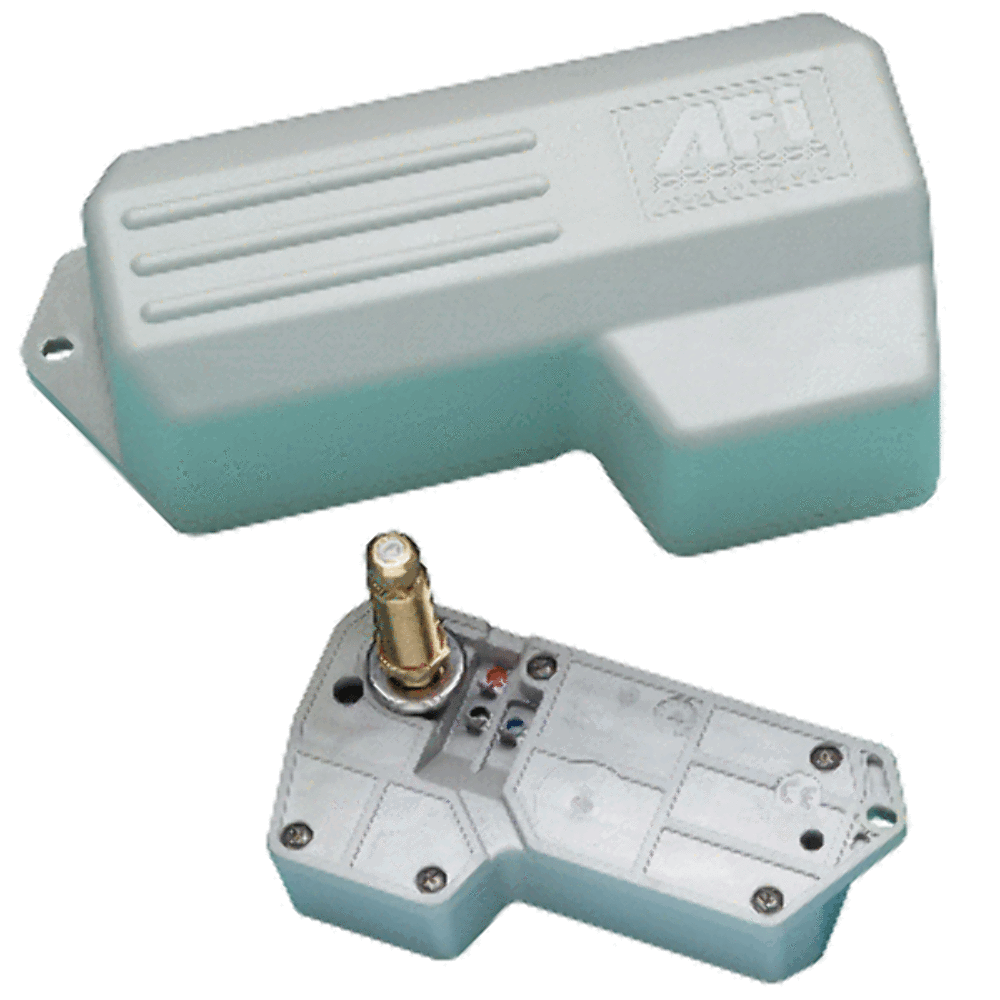

Wiper Motor 1000 Series 12V 1.5" Shaft 80Deg The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized high-temperature high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.Features:Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree 65 degree 80 degree or 110 degree0.625" diameter shaft (16 mm)12 volt heavy-duty motor with anti-rotation drive shaftKnurled drive shaft and solid brass arm drive nutCoast to park with adjustable right or left self parkingRetail version includes 5 amp fuse and holder (on/off switch not included)RF shielded circuitryWeight: 1.75 lbsAvailable in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)Measures approximately 6.625" L x 3.375"W x 2" DStall torque: 55 in-lbs (63 kgfor cm; 6.2 Nm)Stall current: 9.8-10.0 ampsNo load current: 0.8-1.2 amps+

Manufacturer Part Number: 36180
Internal Code: 79306
Brochure:
Instalation Guide:
Video:
