Marinco Waterproof Wiper Motor 12V 2.5" Shaft 80Deg Sweep 71082 Boat Marine

$303.68

SKU:

SD00018015

Condition:

New

Shipping:

Add To Cart To Calculate

Quantity:

Product Description

BRAND: Marinco

DESCRIPTION:

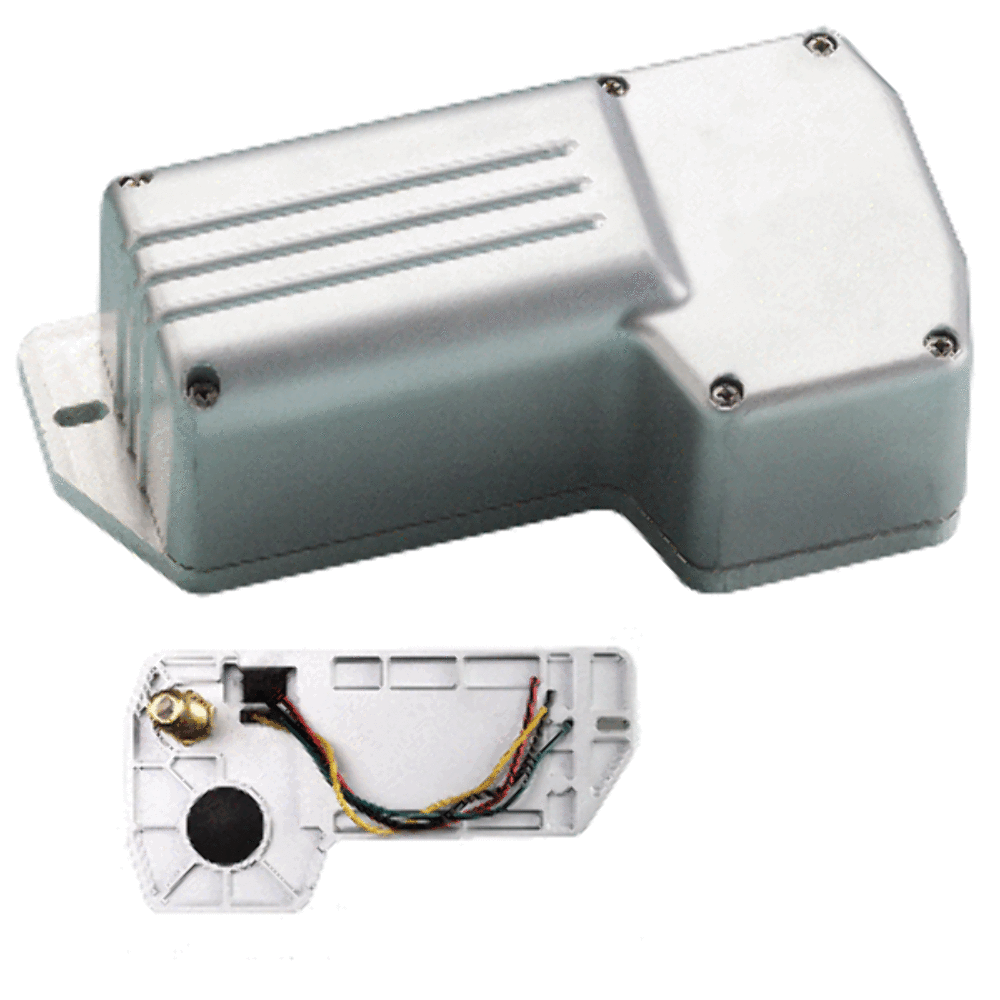

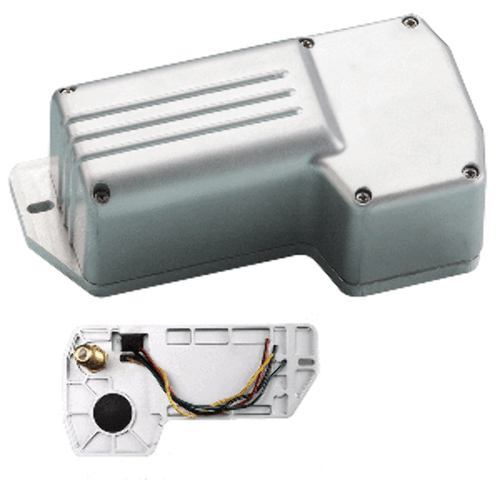

Waterproof Wiper Motor 12V 2.5" Shaft 80Deg SweepThe 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.Features:Available in three shaft lengths: 1.5" 2.5" and 3.5" (includes .5" length of knurled arm fitting)Factory pre-set sweep angles of 80 degrees or 110 degrees with easy adjustment to 45 degrees or 60 degreeChrome plated solid brass knurled drive nut with brass and St Steel driveshaftTwo-speed motorSealed 6" wire leads 16 AWGAdjustable right or left self-parking0.625" diameter shaft (16 mm)Available in 12V and 24V modelsCoast to parkRF shielded circuitryRetail version includes 5 amp fuse and holder (operating switch not included)Measures approximately 7.75" L x 4" W x 2.75" DStall torque: 109 in-lbs (125 kgfor cm; 12.3 Nm)Stall current: 11.5-13.0 ampsNo load current: 0.5-1.2 ampsReplaces AFI 2000 motor

Manufacturer Part Number: 71082
Internal Code: 89520
Brochure:
Instalation Guide:
