Johnson Evinrude 60Degree 135-150-175-200 Lower Unit 20" Shaft Gearcase 1991&UP

DESCRIPTION:
- Lower unit for many V6 from 135-150-175 HP, with 20" shaft, and years 1991 and UP.
- O-Type lower unit

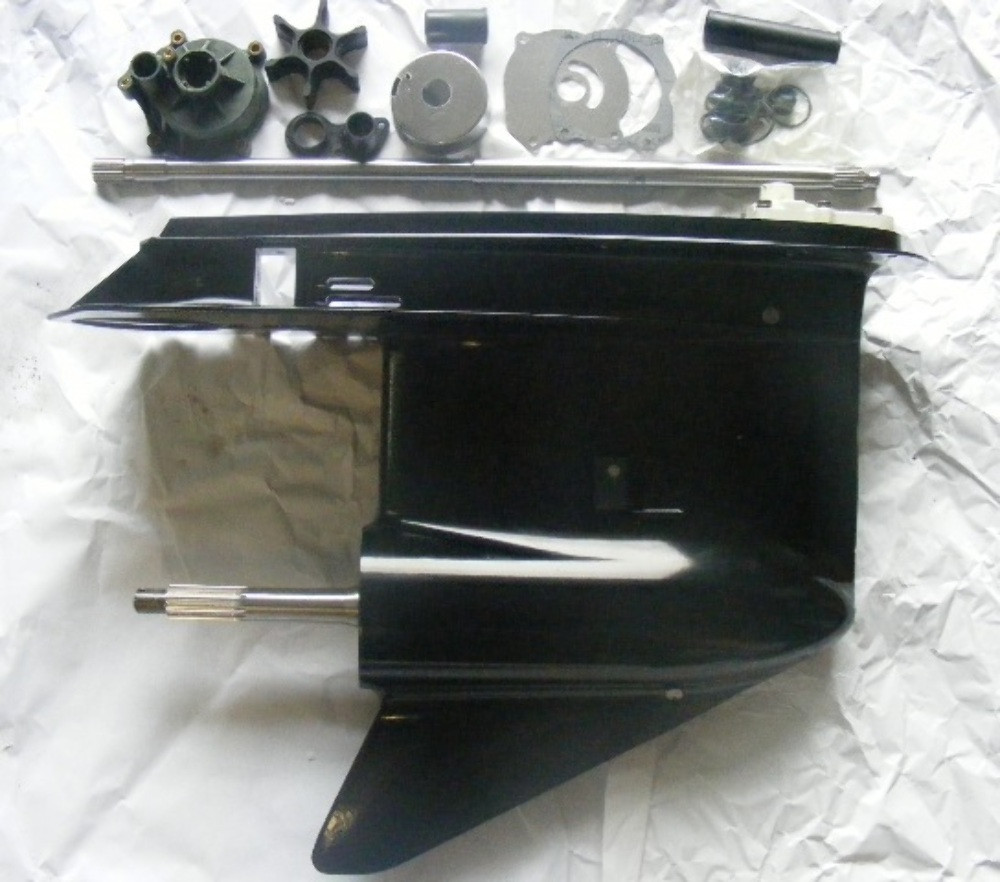

- Includes: Lower unit, upper drive shaft and water pump.

APPLICATION:
- Most 135 to 200 HP engines using 60 Degree Cylinder Block
- See applciation list at the end

DOUBTS?? SEND US YOUR ENGINE MODEL NUMBER, HP, YEAR......

IMPORTANT NOTE: PLEASE READ:
This lower unit includes the upper driveshaft and the water pump, but they are NOT INSTALLED.
- Once you receive the box with the parts, any mechanic can install Upper driveshaft water pump for you.
- You can also do it yourself with videos.
- Just clip in the driveshaft, install the water pump, fill it with oil and install your old shifter rod.
- Lower unit does not include shift rod. You will use yours

GENERAL INFORMATION
- 20" driveshaft for 20" mid sections.
- 15 spline propeller shaft for 15 spline propellers.
- Designed for V6 engines 4-3/4 diameter in the bullet For propeller with diameter 14" and UP
- You will need to use a 1991 or newer prop thrust washer. You can use your old one when installing the propeller.
- 3 year NO fault warranty, Must be send to facrory in the USA........

IMPORTANT DIMENSSIONS for you to compare to your lower unit:
- Drive shaft measurements: From top of lower unit housing (same as the bottom of water pump) to top of drive shaft 22 1/4" (90 degree engines) shaft 21 1/4" (60 degree engines). If your measurements ends on 3/4 or 7/8 this lower unit do not fit, as yours will be the old style pre 1991-1992. We have those as well.
- Propeller shaft with 15 splines. Propeller bullet 4 3/4 external diameter.
- Shifter rod: you use your old one.

Need more info?
If necessary txt or what sp +1954 and laso 610 and 0765
Best, send a question inlcudign engine model number
We answer quickly
