Johnson Evinrude 150-175-200-225-235 Lower Unit RH 20" Shaft Gearcase 1978&UP

DESCRIPTION:
- NEW aftermarket LOWER UNIT.
- Design to fit MOST BUT MAYBE NOT ALL engine V6 from 135 to 250 HP, years 1978 to 1991.

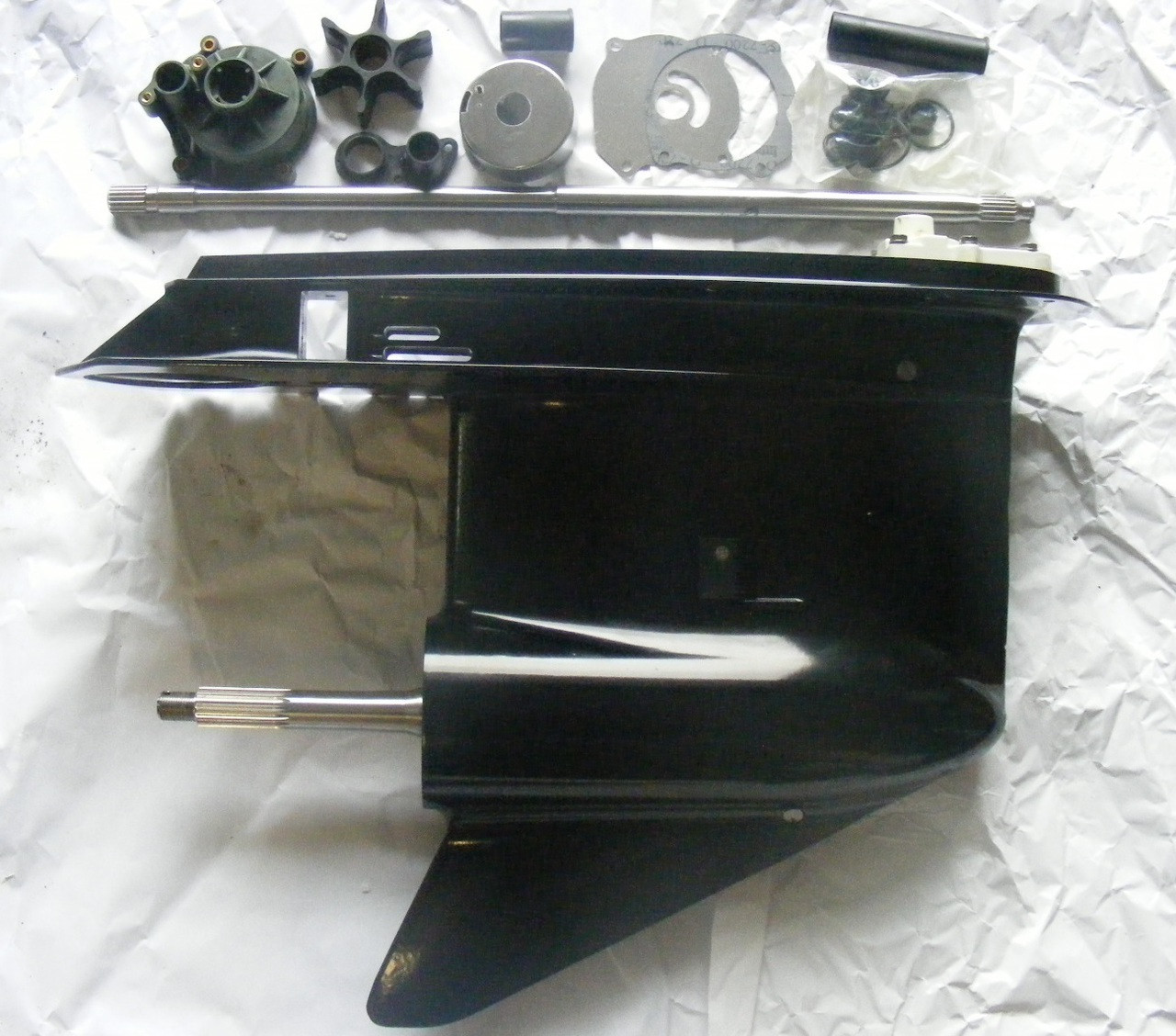

- Includes: Lower unit, upper drive shaft and water pump.
- 3 year NO fault warranty in the USA.......

DOUBTS??
Send us a message with: ENGINE MODEL NUMBER, HP, and YEAR....
We will find what lower unit fits your engine.
If model number not available, please provide Engine Brand, Year, and Shaft length

SPECIFICATIONS:
- 25" driveshaft for 25" mid sections or 20" as per title.
- 15 spline propeller shaft for 15 spline propellers.
- Designed for V6 engines 4-3/4" diameter in the bullet or propeller with diameter above 14"
- You will need to use a 1991 or newer prop thrust washer. You can use your old one whne installing the propeller.
- Shifter rod: Not included. You can use your old one.

IMPORTANT DIMENSSIONS for you to compare to your lower unit:
- Measure your Sriveshaft as follows: From top of lower unit housing (same as the bottom of water pump) to top of drive shaft: For 25" engines: Measurement of 26-3/4 to 7/8" (90 degree engines).
For 20" engines reduce previous measurements by 5".  NOTE: If your measurements ends on 1/4 this lower unit do not fit, as yours will be the newer style after 1991. We have those as well.

ASSEMBLING REQUIRED:
- This lower unit includes the upper driveshaft and the water pump, but they are NOT INSTALLED.
- Once you receive the box with the parts, any mechanic can install them for you.
- You can also do it yourself with videos. Just clip in the driveshaft, install the water pump, fill it with oil and install your old shifter rod.
- Shifter rod: Not included. You can use your old one.

Need more info?
Ask a question, we answer quickly
If necessary, txt 954 and also 610 and finally 07-65
SEND A QUESTION and provide engine HP, year, model number

APPLICATION:
