Product Description
BRAND: Iris Innovations
DESCRIPTION:

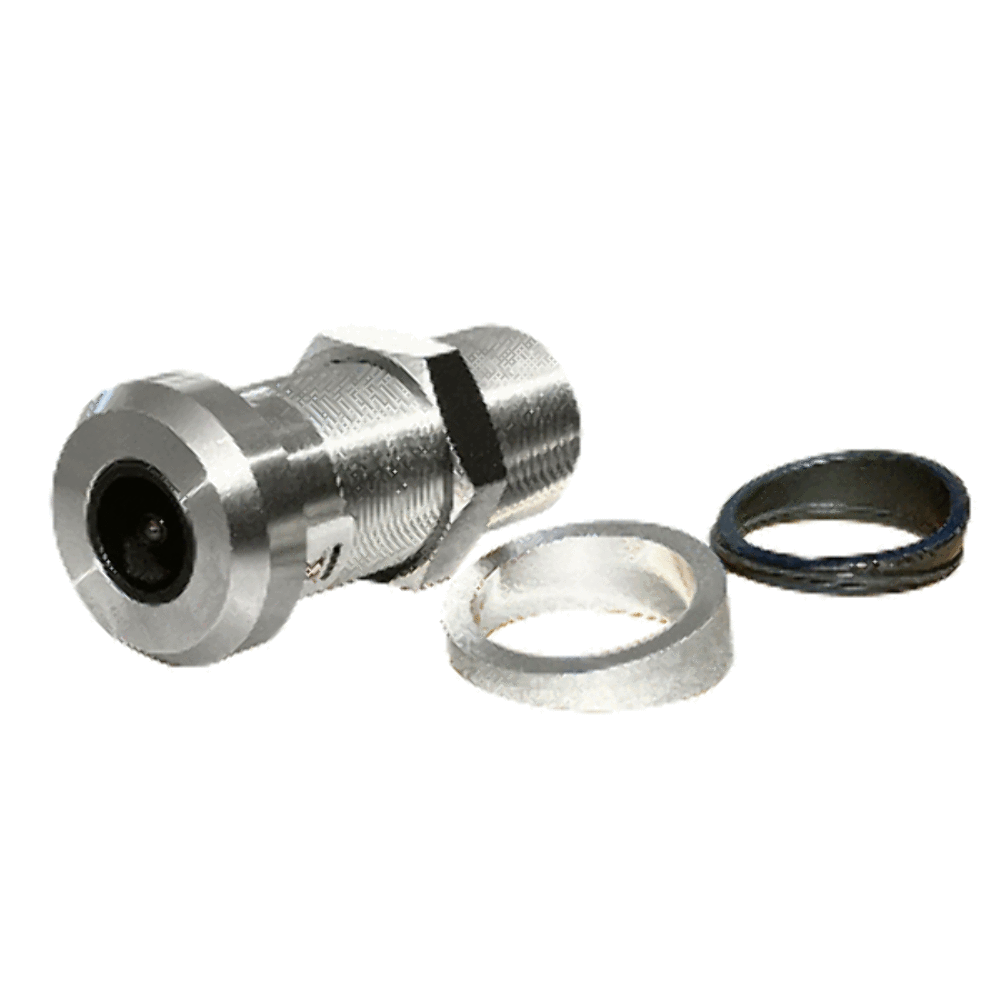

Mini Flush Mount Hi-Resolution Through-Hull Camera CVBS TVI CVI & AHDIntroducing the world's smallest through hull camera the IRIS735 machined from corrosion-resistant marine-grade 316L St Steel and measuring only 28 mm by 59mm long.The 735 has been designed to sit flush into the hull superstructure or transom of your vessel to provide all-around coverage without impacting the tines of your vessel with a bezel height of only 8.5mm.The camera module itself features a Sony Starlight sensor to provide excellent performance in low light and can be user-set to output composite (CVBS) or analog Hi-Def (TVI CVI AHD) video formats. When set to CVBS the 735 is compatible with all chart plotter models that support composite video inputs. When set to TVI the 735 will provide high-definition real-time video which can be viewed on MFDs via our CMAC systems or fed to a TV via our IRIS995 TVI/HDMI convertor.The camera has a 140-degree wide-angle field of view which makes it great to position along the sides and transom of your vessel to provide all-around coverage whilst docking and is also a great solution for sports fishing applications.If you are looking for a tiny cost-effective docking camera a sports fishing camera or an unobtrusive camera to add to your onboard security setup the IRIS735 is the perfect solution.The IRIS735 is also a perfect choice for robust and reliable semi-covert cameras for emergency response and law enforcement vehicles.Features:Micro-Compact Form Factor 28MM X 36MM (8MM From Panel)316L Marine Grade Corrosion-Proof St Steel Body4-In-1 Video Format (User Selectable) – CVBS TVI CVI AHD2.9MM Wide-Angle LensStarlight Sensor for Superb Low Light OperationCompatible With All Chart Plotters Supporting Composite or Analog VideoCompatible With CMAC and CMAC HVR SystemsSet to TVI for HD TV Viewing with the IRIS995 ConverterIP67 Environmental RatingExtremely Low Power ConsumptionApplications:Perfect for extreme environmentsRoad traffic surveillanceMonitoring dynamic digital signageEngine room monitoringDeck monitoringFishing vessel monitoring & surveillanceEmergency vehicle camera applicationsAnimal / Food processing applicationsSpecifications:Lens (millimeter): 2.9mmHorizontal Field of View: 140-degree HFOVSensor (inch): 1/2.8” SONY STARVIS CMOS SensorResolution: CVBS: 1920 x 1080P @ 30fps (NTSC) / 25fps (PAL) / 906H in CVBS modeMinimum Resolution: 0.001 Lux (F-1.2)Day & Night Operation: Auto / Colour / Monochrome / ExternalVideo Output Modes: Analogue HD Modes: HD-TVI HD-CVI AHD / Analogue: Composite Video (CVBS) NTSC / PALLens/Field of View: 2.9mm Standard (140-degree HFOV)Shutter Speed: Auto / Manual (1/50(60) 1/50,000 sec)Defog: Off / AutoWhite Balance: ATW / AWC / INDOOR / OUTDOOR / MANUAL / AWBBack Light Compensation: OFF / BLC / HSBLCD-WDR: Off / 08SENS-UP: Off / x2 x30DNR: Off / Low / Middle / HighBrightness: 0 100Motion Detection: Off / OnImage Mirror: Off / Mirror / V-Flip / RotateSharpness: 0 10 StepsMaterial: 316L Marine Grade Corrosion Resistant St SteelPower: DC12V +/-10% / 125mA (1.5W)Weight: 0.1KgDimensions: 28mm-diameter x 58mmEnvironmental / EMC: EN60529 IP67 / EMC EN60945 (TBC)Operating Temperature: -10-degrees C + 50-degrees C /
Manufacturer Part Number: IRIS735
Internal Code: 99635
Brochure: https://productimageserver.com/literature/brochure/99635BR.pdf
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
Mini Flush Mount Hi-Resolution Through-Hull Camera CVBS TVI CVI & AHDIntroducing the world's smallest through hull camera the IRIS735 machined from corrosion-resistant marine-grade 316L St Steel and measuring only 28 mm by 59mm long.The 735 has been designed to sit flush into the hull superstructure or transom of your vessel to provide all-around coverage without impacting the tines of your vessel with a bezel height of only 8.5mm.The camera module itself features a Sony Starlight sensor to provide excellent performance in low light and can be user-set to output composite (CVBS) or analog Hi-Def (TVI CVI AHD) video formats. When set to CVBS the 735 is compatible with all chart plotter models that support composite video inputs. When set to TVI the 735 will provide high-definition real-time video which can be viewed on MFDs via our CMAC systems or fed to a TV via our IRIS995 TVI/HDMI convertor.The camera has a 140-degree wide-angle field of view which makes it great to position along the sides and transom of your vessel to provide all-around coverage whilst docking and is also a great solution for sports fishing applications.If you are looking for a tiny cost-effective docking camera a sports fishing camera or an unobtrusive camera to add to your onboard security setup the IRIS735 is the perfect solution.The IRIS735 is also a perfect choice for robust and reliable semi-covert cameras for emergency response and law enforcement vehicles.Features:Micro-Compact Form Factor 28MM X 36MM (8MM From Panel)316L Marine Grade Corrosion-Proof St Steel Body4-In-1 Video Format (User Selectable) – CVBS TVI CVI AHD2.9MM Wide-Angle LensStarlight Sensor for Superb Low Light OperationCompatible With All Chart Plotters Supporting Composite or Analog VideoCompatible With CMAC and CMAC HVR SystemsSet to TVI for HD TV Viewing with the IRIS995 ConverterIP67 Environmental RatingExtremely Low Power ConsumptionApplications:Perfect for extreme environmentsRoad traffic surveillanceMonitoring dynamic digital signageEngine room monitoringDeck monitoringFishing vessel monitoring & surveillanceEmergency vehicle camera applicationsAnimal / Food processing applicationsSpecifications:Lens (millimeter): 2.9mmHorizontal Field of View: 140-degree HFOVSensor (inch): 1/2.8” SONY STARVIS CMOS SensorResolution: CVBS: 1920 x 1080P @ 30fps (NTSC) / 25fps (PAL) / 906H in CVBS modeMinimum Resolution: 0.001 Lux (F-1.2)Day & Night Operation: Auto / Colour / Monochrome / ExternalVideo Output Modes: Analogue HD Modes: HD-TVI HD-CVI AHD / Analogue: Composite Video (CVBS) NTSC / PALLens/Field of View: 2.9mm Standard (140-degree HFOV)Shutter Speed: Auto / Manual (1/50(60) 1/50,000 sec)Defog: Off / AutoWhite Balance: ATW / AWC / INDOOR / OUTDOOR / MANUAL / AWBBack Light Compensation: OFF / BLC / HSBLCD-WDR: Off / 08SENS-UP: Off / x2 x30DNR: Off / Low / Middle / HighBrightness: 0 100Motion Detection: Off / OnImage Mirror: Off / Mirror / V-Flip / RotateSharpness: 0 10 StepsMaterial: 316L Marine Grade Corrosion Resistant St SteelPower: DC12V +/-10% / 125mA (1.5W)Weight: 0.1KgDimensions: 28mm-diameter x 58mmEnvironmental / EMC: EN60529 IP67 / EMC EN60945 (TBC)Operating Temperature: -10-degrees C + 50-degrees C /
Manufacturer Part Number: IRIS735
Internal Code: 99635
Brochure: https://productimageserver.com/literature/brochure/99635BR.pdf
Instalation Guide:
Video:
