Product Description
BRAND: Iris Innovations
DESCRIPTION:

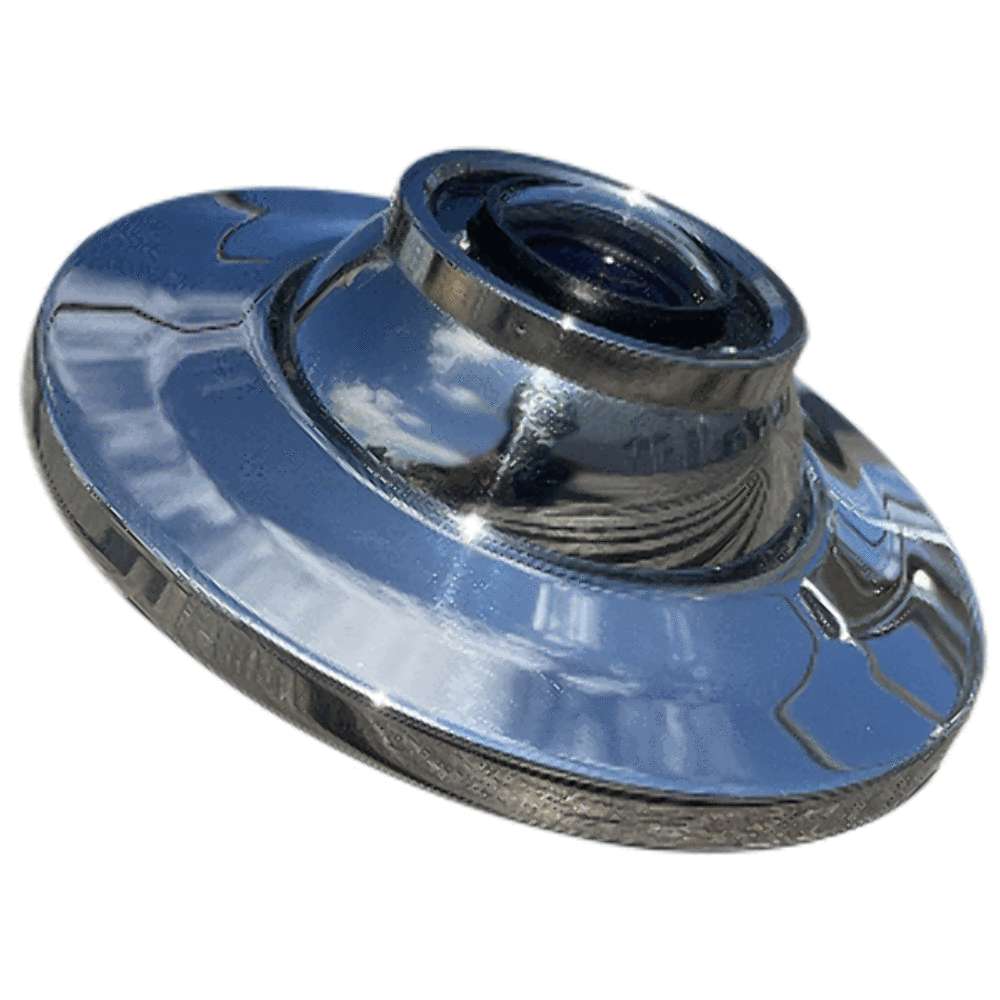

4-In-1 Flush Vertical Surface Mount - 316L Marine Grade St Steel Recess Mount DomeIris’ Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof St Steel case is machined from marine-grade 316L St Steel which means it will not corrode in harsh saltwater environments making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat it can even be used when mooring alongside jetties or pontoons. During installation the camera’s inner ball can be adjusted and locked into position by tightening the outer bezel to achieve the desired view. For analog or analog hi-def (such as TVI / CVI / AHD) systems the S076 version features 1080P resolution. The camera also outputs a CVBS signal for legacy composite video systems. As well as marine applications the camera's tough case and small footprint make it a perfect visibility aid for recreational vehicles fire and rescue trucks and other applications requiring a robust and reliable high-definition camera.The camera is certified to EN60945 EN55032 EN55035 and EN60529 (IP66) and is ONVIF compliant. For marine applications the camera is directly compatible with Raymarine LH2 and above Simrad Lowrance and B & G. For Garmin systems use them in conjunction with Iris CMAC systems.Features:1.8mm standard lens (160-degree horizontal field of view)Corrosion-Proof 316L Marine Grade St SteelAvailable in 4-in-1 (CVBS TVI CVI AHD) & IP formatsAnalogue Hi-Def resolutions up to 1920x1080P resolutionIP Version Max 3MP Hi-Def ResolutionSuper wide angle 160-degree lensIP version supports PoE and 12VDC ultra-low powerBuilt-in infrared LED illumination (10m range)EN60945 EN55032 EN55035 EN50529 (IP66) FCC CEShock & vibration proofSuper rugged and easy to installApplications:Perfect for extreme environmentsWorkboats & tug boatsFishing vesselsEngine room monitoringLaw enforcement & militaryWind farm vesselsSUVs RVs work vehicles and trucksLuxury vesselsPassenger ferries & cruise linersSpecifications:Lens (millimeter): 1.8mmHorizontal Field of View: 160-degree HFOVSensor (inch): Sensor 1/4” CMOS SensorResolution: CVBS: 960H / AHD HD-TVI. HD-CVI: 1920 x 1080Interface: OSD Menu via in-line Joystick in Cable TailVideo Processing: Analogue / Analogue HDProtocols/Video Format: 1VPP / 75Ω composite / AHD/TVI/CVI formatsOnvif: NABitrate: NAIllumination: 6 x 850nm Infra-Red 10-meter rangeLens/Field of View: 1.8mm Standard (160-degree HFOV)Mirroring: Horizontal & vertical configuration via the OSD Automatic Gain Control: Supported / multiple levelsCompatibility: CVBS: All MFDs / Screens featuring composite video input AHD/TVI/CVI via interface or IRIS CMAC SystemOperating Temperature: -30 + 60-degrees CConnections: Video: Video 75Ω BNC female / 2.1mm DC socketMaterial: Marine Grade 316L St Steel (highly polished as a standard)Power: +12VDC (+10 +15VDC range) / 1W Nominal / 1.8W max. (LEDs on)Power Over Ethernet (PoE): NAWeight & Dimensions: 88mm ø x 22.25mm above and below the mounting surfaceEnvironmental: EN60529 / IP66EMC: EN55032:2015/A11:2020 & EN55035:2017/A11:2020 EN60945:2002 Sections 9 & 10 / FCC Part 15 A & BRoHS: EN6300:2018
Manufacturer Part Number: IRIS-S076
Internal Code: 99632
Brochure: https://productimageserver.com/literature/brochure/99632BR.pdf
Instalation Guide:
Video:
