Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

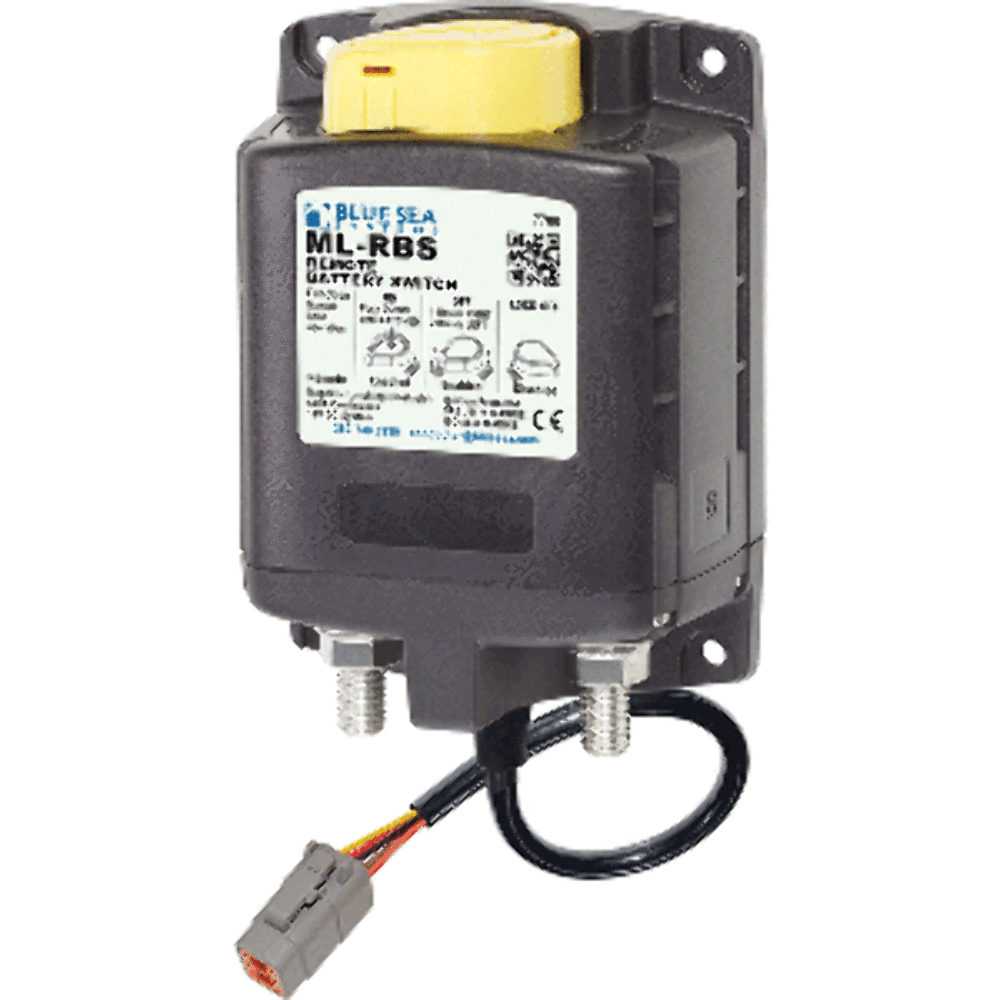

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector500 Amp magnetic latching switch provides high amperage switching under load manually or from remote locations.Features:Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicingLED output to remotely indicate switch state requires optional LED3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance7/8" (22 mm) stud length accepts multiple cable terminalsLabel recesses for circuit identificationSilver alloy contacts provide high reliability for switching live loadsSpecifications:Control Circuit Connection: Deutsch DTMNominal Voltage: 12VDCCoil Function: Bi-StableMounting: #10Amperage Operating Current Continous: 0mATerminal Stud Torque: 140 in-lb (15.82 Nm)Continuous Rating: 500AIntermittent Rating: 700A (5 min)Cranking Rating 30 Seconds: 1450A DCCable Size to Meet Ratings: 2x (4/0)Live Current Switching: 300A@12VDCMaster Control Switch Capability: NoMechanical Endurance: 100,000 CyclesTerminal Ring Diameter Clearance: 1.18" (29.97 mm)Terminal Stud Length: 0.875" (22.23 mm)Terminal Stud Size: 3/8" 16 (M10)Weight: 1.75lb (0.79 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 7700100
Internal Code: 81410
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/81410IN.pdf
Video:
