Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

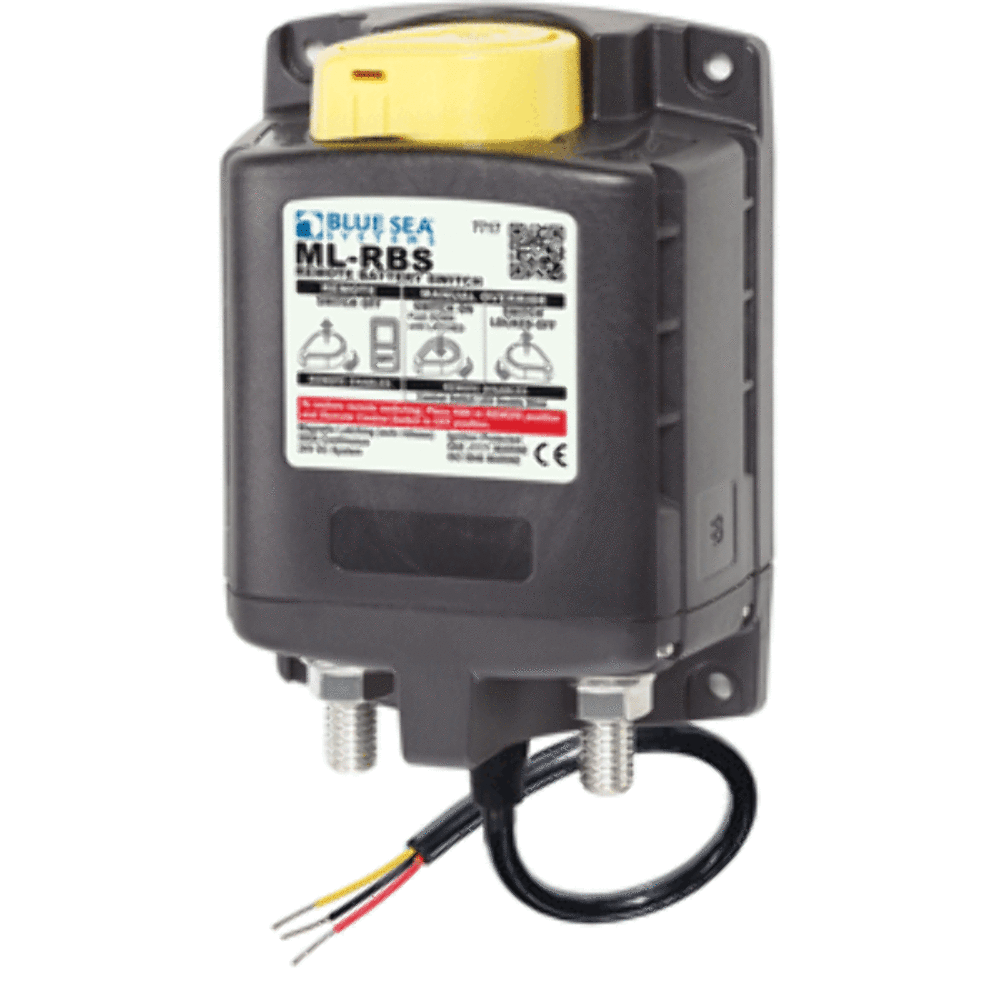

ML-RBS Remote Battery Switch with Manual Control Auto-Release 24VManual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicingLED output to remotely indicate switch state requires optional LED3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance7/ 8" (22mm) stud length accepts multiple cable terminalsLabel recesses for circuit identificationSilver alloy contacts provide high reliability for switching live loadsAuto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches but can be controlled with SPST or SPDT switch for applications where a normally open relay is desiredSpecificationsControl Circuit Connection:Tinned WireNominal Voltage:24V DCManual Control: YesCoil Function: Auto releasing Mounting: #10Amperage Operating Current:8mA when OFfor 13mA when ONAmperage Operating Current when changing state: Control Circuit Voltage: 20.2 to 32.9V DCContinuous Rating: 500AIntermittent Rating: 700A (5 min)Cranking Rating: 10 sec 2500ACranking Rating: 1 min 1100AMinimum Operating Temperature: -10Deg CMaximum Operating Temperature: 50Deg CCable Size to Meet Ratings: 2x (4/0)Live Current Switching: 300A @ 12V DC 10,000 CyclesMaster Control Switch Capability: YesMechanical Endurance: 100,000 CyclesSwitching Cycles: 100000Terminal Ring Diameter Clearance: 1.18" (29.97mm)Terminal Stud Length: 0.875" (22.23mm)Terminal Stud Size: 3/8-16 (M10)Terminal Stud Torque: 140 in-lb (15.82 Nm)Weight: 1.75lb (0.79 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 7717
Internal Code: 53465
Brochure: https://productimageserver.com/literature/brochure/53465BR.pdf
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
ML-RBS Remote Battery Switch with Manual Control Auto-Release 24VManual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicingLED output to remotely indicate switch state requires optional LED3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance7/ 8" (22mm) stud length accepts multiple cable terminalsLabel recesses for circuit identificationSilver alloy contacts provide high reliability for switching live loadsAuto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches but can be controlled with SPST or SPDT switch for applications where a normally open relay is desiredSpecificationsControl Circuit Connection:Tinned WireNominal Voltage:24V DCManual Control: YesCoil Function: Auto releasing Mounting: #10Amperage Operating Current:8mA when OFfor 13mA when ONAmperage Operating Current when changing state: Control Circuit Voltage: 20.2 to 32.9V DCContinuous Rating: 500AIntermittent Rating: 700A (5 min)Cranking Rating: 10 sec 2500ACranking Rating: 1 min 1100AMinimum Operating Temperature: -10Deg CMaximum Operating Temperature: 50Deg CCable Size to Meet Ratings: 2x (4/0)Live Current Switching: 300A @ 12V DC 10,000 CyclesMaster Control Switch Capability: YesMechanical Endurance: 100,000 CyclesSwitching Cycles: 100000Terminal Ring Diameter Clearance: 1.18" (29.97mm)Terminal Stud Length: 0.875" (22.23mm)Terminal Stud Size: 3/8-16 (M10)Terminal Stud Torque: 140 in-lb (15.82 Nm)Weight: 1.75lb (0.79 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 7717
Internal Code: 53465
Brochure: https://productimageserver.com/literature/brochure/53465BR.pdf
