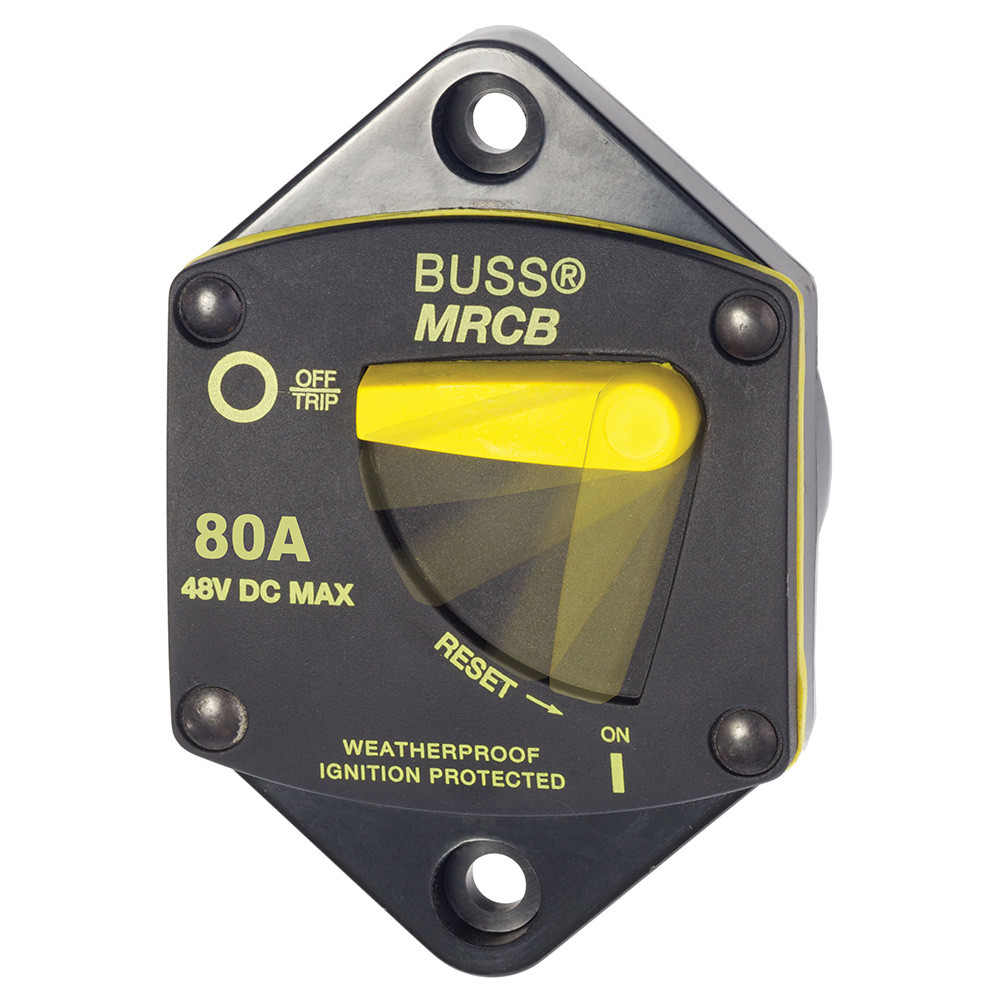

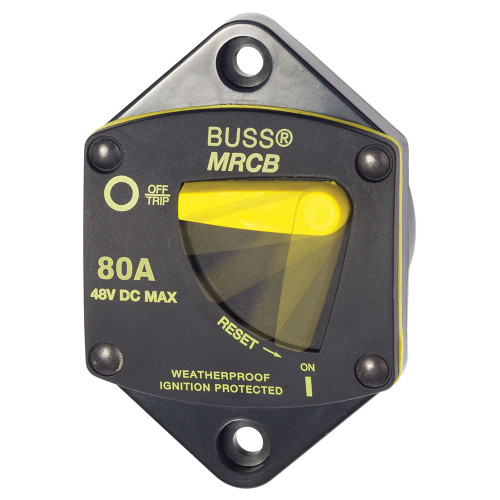

Blue Sea 7042 187-Series Circuit Breaker Panel Mount 80A 7042 Boat Marine

7042 187-Series Circuit Breaker Panel Mount 80A

Features:

• Combines switching and circuit protection into a single device*
• Precise, single-lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Ample Clearance around terminal studs accepts heavy gauge wire lugs
• Robust 5/16 M8 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition-protected Safe for installation aboard gasoline powered boats

Specifications:

• Amperage: 80A
• Maximum Voltage: 48V DC
• Mounting: Panel Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud Torque: 75 in-lb (8.47 Nm)
• Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
• Minimum Operating Temperature: -40deg C
• Maximum Operating Temperature: 85deg C
• Case Material: Thermoset Polyester
• Circuit Breaker Class: Type III switchable/manual reset trip-free
• Mounting Hole: Accept #10 (M5) Screw
• Terminal Stud Size: 5/16" 18
• Weight: 0.5lb (0.23 kg)
• Weight: 0.50lb (0.23 kg)

* Do not use as a switch where high inrush currents are expected.
