Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

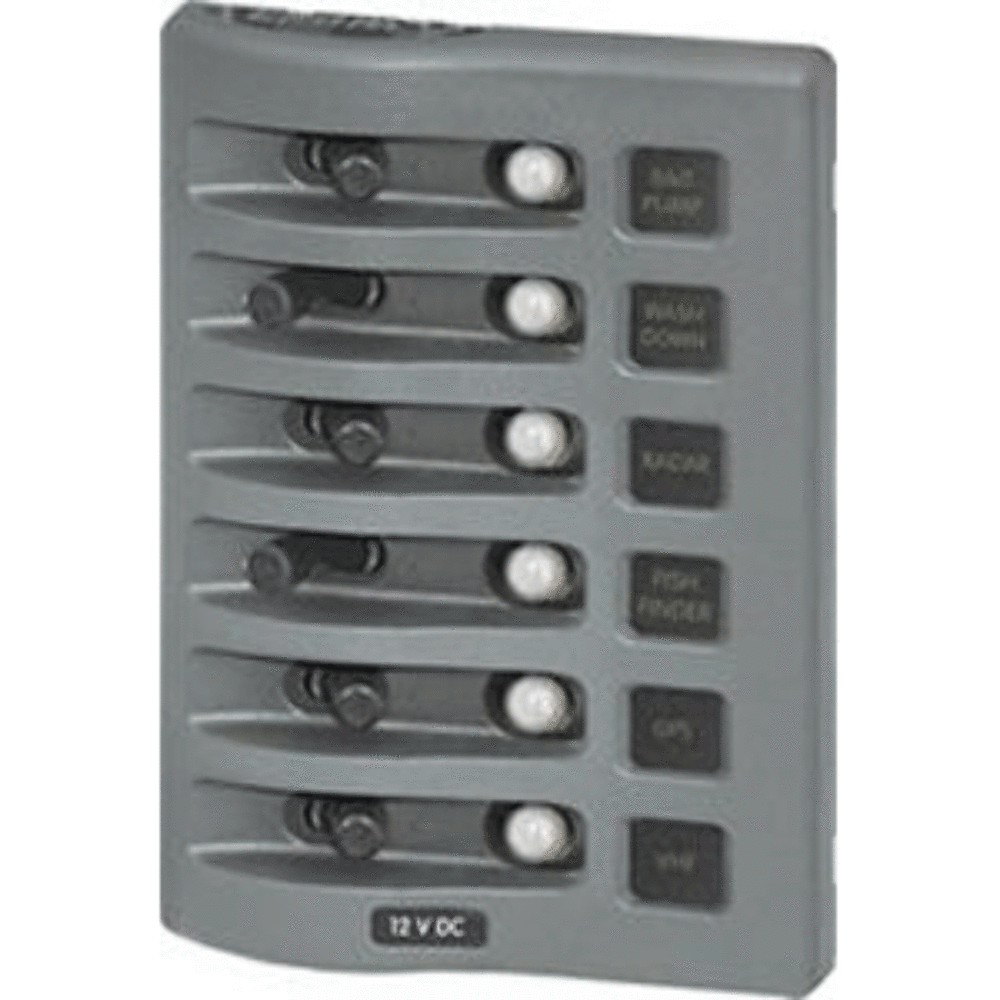

WeatherDeck Water Resistant Circuit Breaker PanelPN: 4376Color: GrayFeatures:Rated IP67-temporary immersion for 30 minutesDesigned for flybridge and open cockpit applicationsIndependent label backlighting allows switching and dimmingCompatible with all Blue Sea Systems Digital DimmersEach panel can be mounted in four different orientationsGreen LEDs aid low-light readability. All labels will be lit when the panel is powered regardless of individual switch position.Specifications:Weatherproof: WaterproofPositions: 6Nominal Voltage: 12v / 24v DCCircuit Protection: Circuit BreakerMaximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)Panel Cumulative Rating: 45ABacklit Label: Green LEDBacklighting Amperage: 10mA/Illuminated CircuitBacklighting Voltage: 12 or 24v DCHeight: 6.0"Width: 4.25"Depth: 3.5"Included:(6) 4135 Push Button Reset Only Circuit Breaker Boot Clear(6) 4138 WeatherDeck; Toggle Switch Boot Black(6) 4150 WeatherDeck; Toggle Switch SPST ON-OFF(1) 4215 Waterproof DC Label Kit 30 Black Square Labels V1(6) 7056 Push Button Reset Only Quick Connect Circuit Breaker 15 AmpsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 4376
Internal Code: 20423
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/20423IN.pdf
