Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

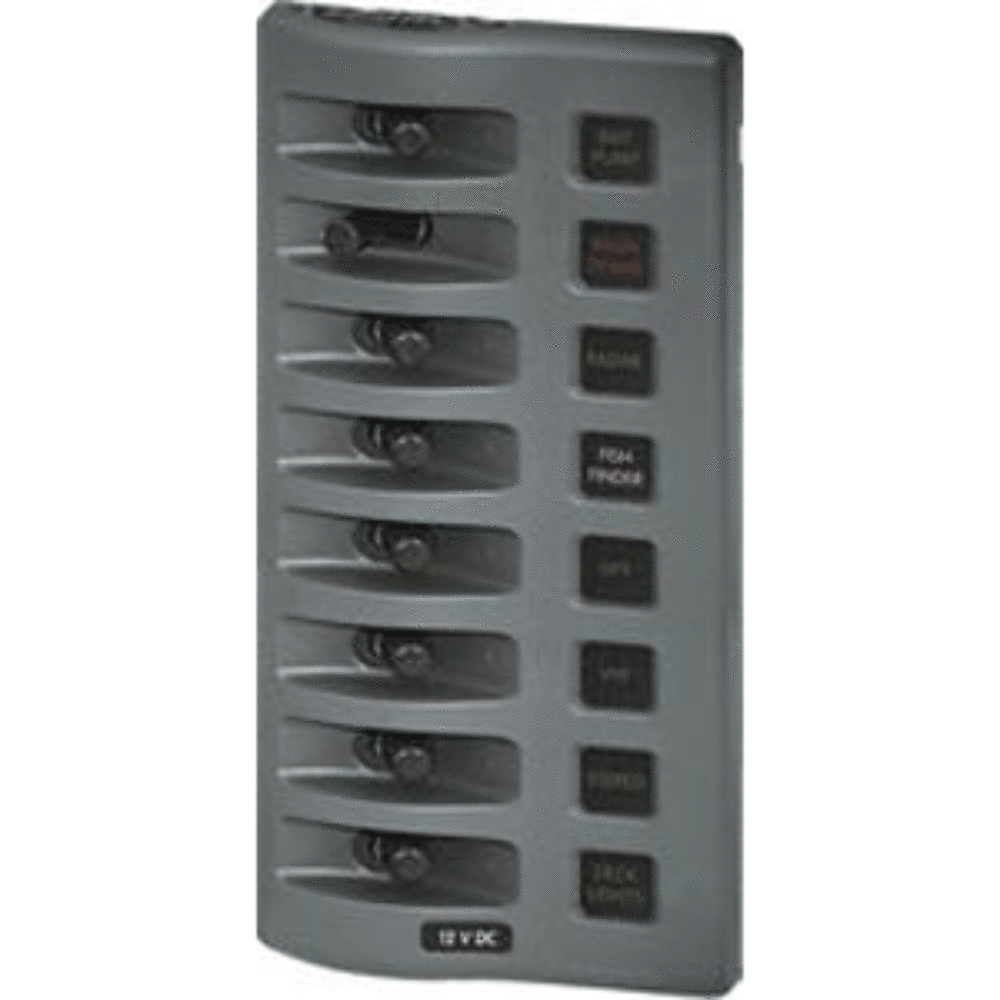

WeatherDeck Water Resistant Fuse PanelPN: 4308Color: GrayFeatures:Panel front rated IP67 when properly mounted with watertight mounting gasketIP67 – protected against immersion up to 1 meter for 30 minutesDesigned for flybridge and open cockpit applicationsIndependent label back lighting circuit for remote switching and dimmingEach panel can be mounted in four different orientationsIntegrated ATO/ATC fuse based circuit protectionBicolored LEDs illuminate circuit labels to quickly identify OFF (Red) ON (Green) or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.Specifications:Weatherproof: WaterproofPositions: 8Nominal Voltage: 12v DCCircuit Protection: FuseMaximum Amperage: 15A @ 12v DC (per circuit)Panel Cumulative Rating: 100ABacklit Label: Bicolored LEDBacklighting Amperage: 10mA/illuminated CircuitBacklighting Voltage: 12v DCHeight: 7.7"Width: 3.88"Depth: 2.5"Included:(8) 4138 WeatherDeck; Toggle Switch Boot Black(8) 4150 WeatherDeck; Toggle Switch SPST ON-OFF(1) 4215 Waterproof DC Label Kit 30 Black Square Labels V1(8) 5242 ATO/ATC Fuse 15 AmpWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 4308
Internal Code: 20417
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/20417IN.pdf
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
WeatherDeck Water Resistant Fuse PanelPN: 4308Color: GrayFeatures:Panel front rated IP67 when properly mounted with watertight mounting gasketIP67 – protected against immersion up to 1 meter for 30 minutesDesigned for flybridge and open cockpit applicationsIndependent label back lighting circuit for remote switching and dimmingEach panel can be mounted in four different orientationsIntegrated ATO/ATC fuse based circuit protectionBicolored LEDs illuminate circuit labels to quickly identify OFF (Red) ON (Green) or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.Specifications:Weatherproof: WaterproofPositions: 8Nominal Voltage: 12v DCCircuit Protection: FuseMaximum Amperage: 15A @ 12v DC (per circuit)Panel Cumulative Rating: 100ABacklit Label: Bicolored LEDBacklighting Amperage: 10mA/illuminated CircuitBacklighting Voltage: 12v DCHeight: 7.7"Width: 3.88"Depth: 2.5"Included:(8) 4138 WeatherDeck; Toggle Switch Boot Black(8) 4150 WeatherDeck; Toggle Switch SPST ON-OFF(1) 4215 Waterproof DC Label Kit 30 Black Square Labels V1(8) 5242 ATO/ATC Fuse 15 AmpWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 4308
Internal Code: 20417
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/20417IN.pdf
