Blue Sea 3130 SMS Panel Enclosure w/Main & 3 Branch (15A) 120V AC Boat Marine

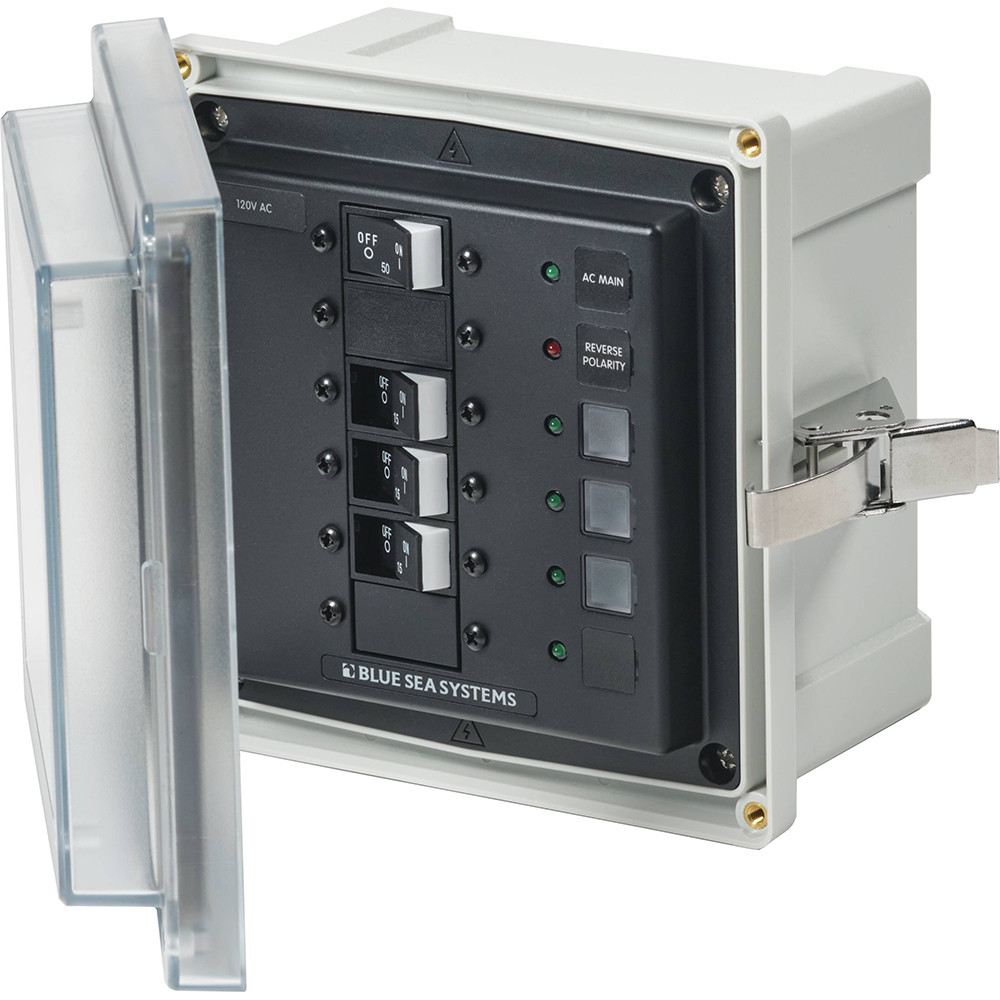

3130 SMS Panel Enclosure with Main & 3 Branch (15A) 120V AC

The 3130-panel enclosure is built with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements.

Features:

• Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type 1 x 120V Main and 3 x Branch (15A)
• Dimensions (Overall) (H x W x D) 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed 1 x Red (Reverse Polarity 120V AC and 5 x Green ON (120V AC)

In the Box:

• 3130 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual
