 and 3 Blanks 120V Boat Sailboat, $681.36 (https://landmarinetoys.com/blue-sea-3116-sms-panel-enclosure-w-elci-30a-and-3-blanks-120v-boat-sailboat/))
Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

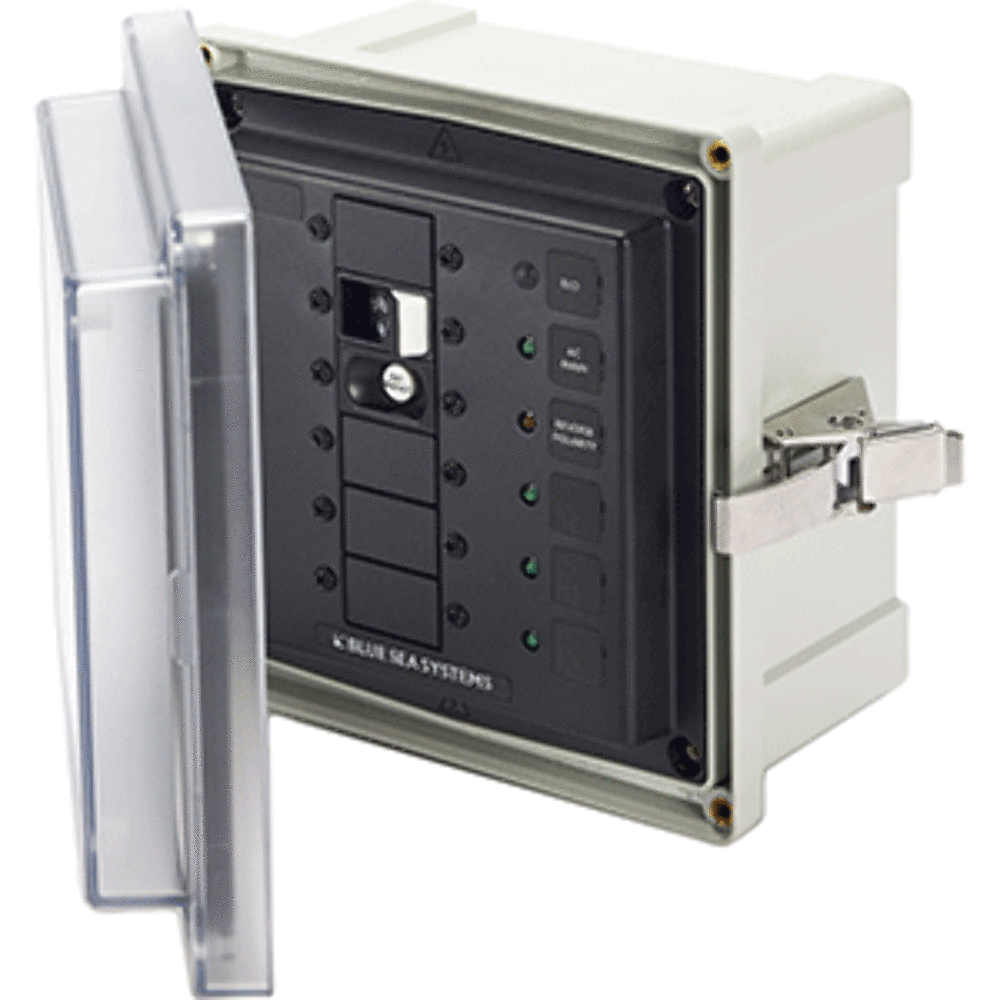

3116 SMS Panel Enclosure with ELCI (30A) and 3 Blanks 120VThe 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.Features:Blank apertures for custom breaker loading Glass filled polycarbonate baseClear cover allows easy view of circuit breaker statusOverlapping cover for strength and increased gasket protectionOversized formed in place seamless PUR gasketEasily removable St Steel hinge pin for unobstructed installationSt Steel latch secures cover without penetrating the enclosureBlank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakersIncludes waterproof glandsLED lights for back lighting and ON indicationTechnical Specifications:Circuit Breaker Type 1 x ELCI (30A) Main 120V and 3 x BlankDimensions (Overall) (H x W x D) 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)Dimensions (Enclosure) (H x W x D) 6" x 6" x 4" (152 x 152 x 102mm)LEDs Installed 1 x Red (Reverse Polarity 120V AC and 4 x Green ON (120V AC)In the Box:3116 EnclosureGlands x 5LabelsMounting hardwareInstruction manual*Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 3116
Internal Code: 65548
Brochure: https://productimageserver.com/literature/brochure/65548BR.pdf
Instalation Guide: https://productimageserver.com/literature/installations/65548IN.pdf
Video:
