Blue Sea 1463 8 Position Switch CLB + Meter Vertical 1463 Boat Sailboat Marine

DESCRIPTION:

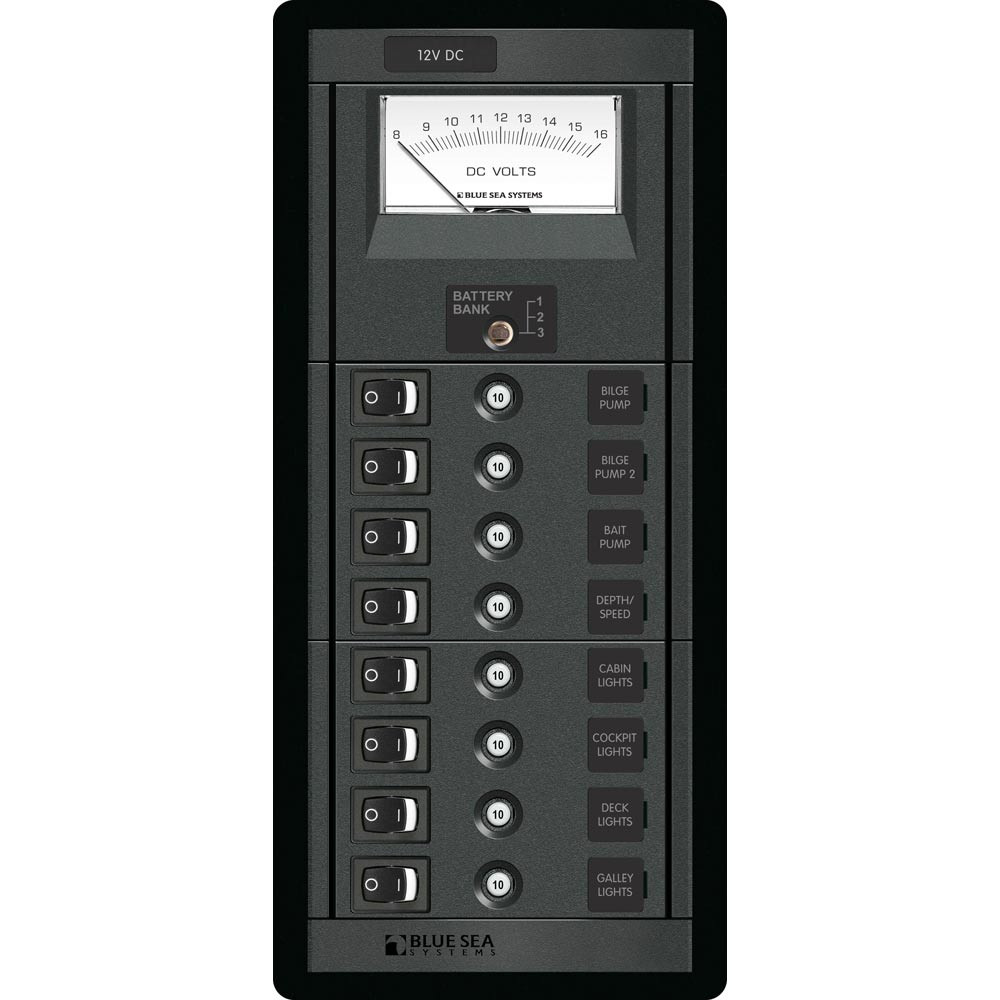

8 Position Switch CLB + Meter Vertical

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 80A per bus

• Height: 10.75" (273.05mm)

• Width: 4.88" (123.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 3.66lb (1.66kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) 7054 Push Button Reset Only Quick Connect Circuit Breaker 10 Amps
(8) 7480 Rocker Switch SPST ON-OFF
(1) 4205 Basic DC Label Kit 30 Black Square Labels [LABEL]
(1) 8003 DC Analog Voltmeter 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

BRAND:
Blue Sea Systems

Internal Code: 57224
Manufacturer Part Number: 1463
