Yamaha F 200-225 HP 4 Stroke Lower Unit 25" 64cms Shaft Gearcase Casing 2002&UP
Product Description
IMPORTANT DISCLAIMER ABOUT LOWER UNIT COLOR:

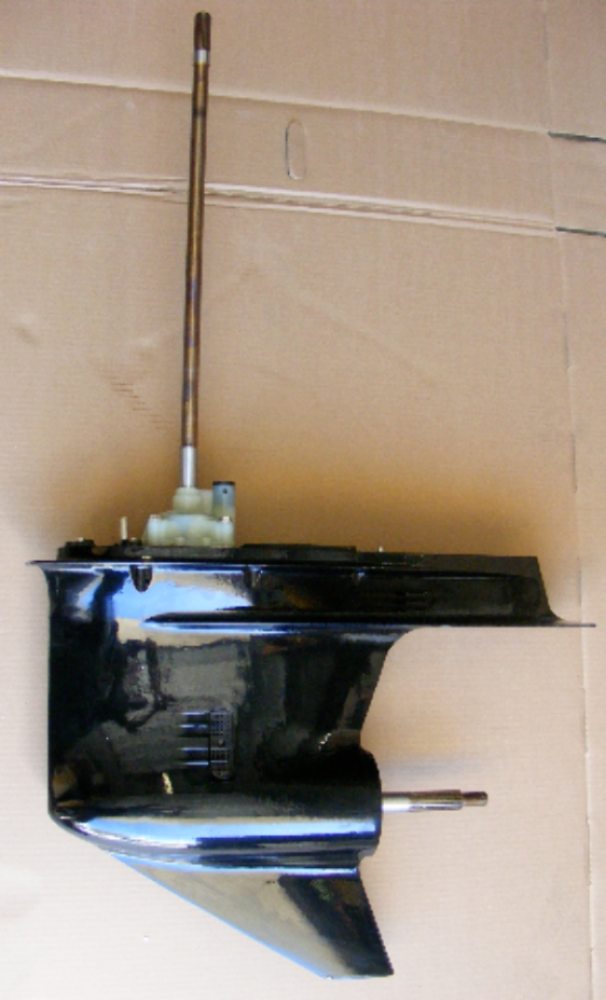

Lower unit comes painted with Black Primer. Some pictures may shows lower unit painted Yamaha Silver/Gray color.
Lower unit come now with BLACK PRIMER.
You can paint the lower unit to match your engine
PLEASE SEND US YOUR ENGINE MODEL NUMBER TO MAKE SURE IT FITS YOUR ENGINE.
DESCRIPTION:
- Yamaha F 200-225 Lower Unit 4 Stroke Casing 25" Shaft Gearcase
- NEW aftermarket LOWER UNIT
- Comes with 3 year NO fault warranty in the USA for recreational users. (Damaged Lower unit must be returned for inspection, repair or replacement).
- Fits 25" midsections.
- 15 spline propeller shaft for 15 spline propellers.
- 27.5" from top of the drive shaft to the mounting surface (top of housing)
- Box measurements: 51"x29"x9" and weights 58 lbs.
- Replaces OE #: 69J-45300-21-8D
APPLICATION:
| YEAR | MODEL NUMBER | DRIVE SHAFT | GEAR RATIO |
| 2018 | F200XA | 25 | 2:01 |
| 2018 | F225XA | 25 | 2:01 |
| 2017 | F200XA | 25 | 2:01 |
| 2017 | F225XA | 25 | 2:01 |
| 2016 | F200XA | 25 | 2:01 |
| 2016 | F225XA | 25 | 2:01 |
| 2015 | F200XA | 25 | 2:01 |
| 2015 | F225XA | 25 | 2:01 |
| 2014 | F200XA | 25 | 2:01 |
| 2014 | F225XA | 25 | 2:01 |
| 2013 | F200XA | 25 | 2:01 |
| 2013 | F225XA | 25 | 2:01 |
| 2012 | F200XA | 25 | 2:01 |
| 2012 | F225XA | 25 | 2:01 |
| 2011 | F200XA | 25 | 2:01 |
| 2011 | F225XA | 25 | 2:01 |
| 2010 | F200TXR | 25 | 2:01 |
| 2010 | F225TXR | 25 | 2:01 |
| 2009 | F200TXR | 25 | 2:01 |
| 2009 | F225TXR | 25 | 2:01 |
| 2008 | F200TXR | 25 | 2:01 |
| 2008 | F225TXR | 25 | 2:01 |
| 2007 | F200TXR | 25 | 2:01 |
| 2007 | F225TXR | 25 | 2:01 |
| 2006 | F200TXR | 25 | 2:01 |
| 2006 | F225TXR | 25 | 2:01 |
| 2005 | F200TXRD | 25 | 2:01 |
| 2005 | F225TXRD | 25 | 2:01 |
| 2004 | F200TXRC | 25 | 2:01 |
| 2004 | F225TXRC | 25 | 2:01 |
| 2003 | F200TXRB | 25 | 2:01 |
| 2003 | F225TXRB | 25 | 2:01 |
| 2002 | F200TXRA | 25 | 2:01 |
| 2002 | F225TXRA | 25 | 2:01 |
Need more info?
If ncessary txt or whats ap +1954 and also 610 and 0765
Ask a question.
We will answer questions in a matter of minutes...
Warranty Information
3 Year (Damaged unit must be returned)
