Yamaha C/S 115-130 HP 2 Stroke Lower Unit Right H. 20"Shaft Gearcase Foot Casing
Product Description
IMPORTANT DISCLAIMER ABOUT LOWER UNIT COLOR:

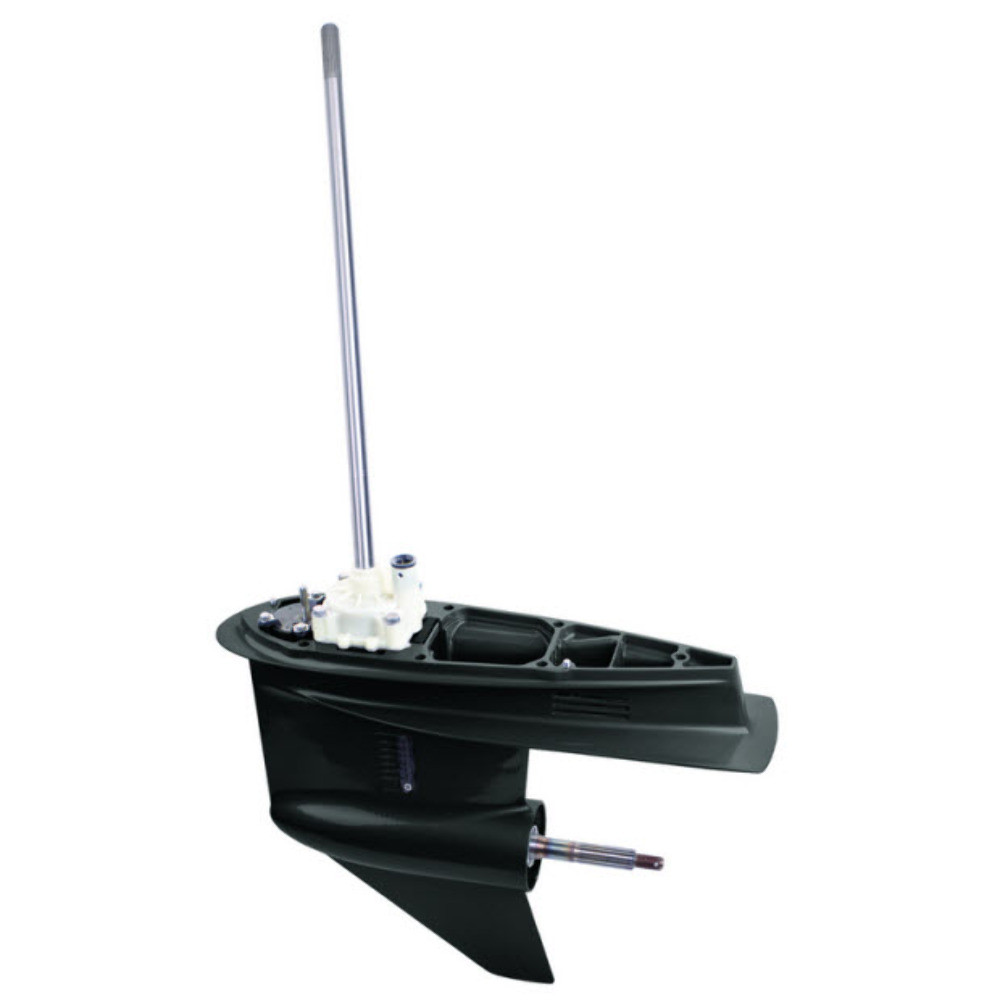

The pictures shows lower unit painted Yamaha Silver/Gray color. Manufacturing process was changed and starting July 2017 the Yamaha lower unit will NOT come anylonger painted with Yamaha Silver/Gray top coat.
Lower unit come now with BLACK PRIMER.
You will need to paint the lower unit
PLEASE SEND US YOUR ENGINE MODEL NUMBER TO MAKE SURE IT FITS YOUR ENGINE.
DESCRIPTION:
- Yamaha 115-130 HP 2 Stroke Lower Unit Casing 25" Shaft Gearcase
- RIGHT HAND lower unit.
- NEW aftermarket LOWER UNIT
- Comes with 3 year NO fault warranty in the USA for recreational users. (Damaged Lower unit must be returned).
INFORMATION AND SPECS:
- Fits 20" midsections.
- 22" from top of the drive shaft to the mounting surface (top of housing)
- Box measurements: 47"x29"x9" and weights 65 lbs.
APPLICATION:
| YEAR | MODEL | SHAFT | RATIO |
| 2010 | 115TLR | 20 | 2:01 |
| 2009 | 115TLR | 20 | 2:01 |
| 2008 | 115TLR | 20 | 2:01 |
| 2007 | 115TLR | 20 | 2:01 |
| 2006 | 115TLR | 20 | 2:01 |
| 2005 | 115TLRD | 20 | 2:01 |
| 2004 | 115TLRC | 20 | 2:01 |
| 2004 | 130TLRC | 20 | 2:01 |
| 2003 | 115TLRB | 20 | 2:01 |
| 2003 | 130TLRB | 20 | 2:01 |
| 2002 | 115TLRA | 20 | 2:01 |
| 2002 | 130TLRA | 20 | 2:01 |
| 2001 | 115TLRZ | 20 | 2:01 |
| 2001 | 130TLRZ | 20 | 2:01 |
| 2000 | 115TLRY | 20 | 2:01 |
| 2000 | 130TLRY | 20 | 2:01 |
| 2000 | C115TLRY | 20 | 2:01 |
| 1999 | 115TLRX | 20 | 2:01 |
| 1999 | 130TLRX | 20 | 2:01 |
| 1999 | S115TLRX | 20 | 2:01 |
| 1999 | S130TLRX | 20 | 2:01 |
| 1999 | C115TLRX | 20 | 2:01 |
| 1998 | 115TLRW | 20 | 2:01 |
| 1998 | 130TLRW | 20 | 2:01 |
| 1998 | S115TLRW | 20 | 2:01 |
| 1998 | S130TLRW | 20 | 2:01 |
| 1998 | C115TLRW | 20 | 2:01 |
| 1997 | 115TLRV | 20 | 2:01 |
| 1997 | 130TRLV | 20 | 2:01 |
| 1997 | S115TLRV | 20 | 2:01 |
| 1997 | P115TLRV | 20 | 2:01 |
| 1997 | S130TLRV | 20 | 2:01 |
| 1997 | C115TLRV | 20 | 2:01 |
| 1996 | 115TLRU | 20 | 2:01 |
| 1996 | 130TLRU | 20 | 2:01 |
| 1996 | C115TLRU | 20 | 2:01 |
| 1996 | P115TLRU | 20 | 2:01 |
| 1996 | S115TLRU | 20 | 2:01 |
| 1996 | S130TLRU | 20 | 2:01 |
| 1995 | 115TLRT | 20 | 2:01 |
| 1995 | 130TRLT | 20 | 2:01 |
| 1995 | C115TLRT | 20 | 2:01 |
| 1995 | P115TLRT | 20 | 2:01 |
| 1994 | 115TLRS | 20 | 2:01 |
| 1994 | 130TLRS | 20 | 2:01 |
| 1994 | C115TLRS | 20 | 2:01 |
| 1994 | P115TLRS | 20 | 2:01 |
| 1993 | 115TLRR | 20 | 2:01 |
| 1993 | 130TLRR | 20 | 2:01 |
| 1993 | C115TLRR | 20 | 2:01 |
| 1993 | P115TLRR | 20 | 2:01 |
| 1992 | 115TLRQ | 20 | 2:01 |
| 1992 | 130TLRQ | 20 | 2:01 |
| 1992 | C115TLRQ | 20 | 2:01 |
| 1991 | 115TLRP | 20 | 2:01 |
| 1991 | 130TLRP | 20 | 2:01 |
| 1991 | C115TLRP | 20 | 2:01 |
| 1990 | 115ETLD | 20 | 2:01 |
| 1990 | 130ETLD | 20 | 2:01 |
| 1989 | 115ETLF | 20 | 2:01 |
| 1989 | 130ETLF | 20 | 2:01 |
| 1988 | 115ETLG | 20 | 2:01 |
| 1988 | 130ETLG | 20 | 2:01 |
| 1987 | 115ETLH | 20 | 2:01 |
| 1987 | 130ETLH | 20 | 2:01 |
| 1986 | 115ETLJ | 20 | 2:01 |
| 1985 | 115ETLK | 20 | 2:01 |
| 1984 | 115ETLN | 20 | 2:01 |
DOUBTS?? Please send us your engine model number
Satisfaction guaranteed in all products we sell.
Returns accepted in NEW lower units are 14 days for money back in NEW ITEMS ONLY, UNOPENED BOXES.
PLEASE SEND US YOUR ENGINE MODEL NUMBER TO MAKE SURE IT FITS YOUR ENGINE.
Client pays 10% RESTOCKING FEE + shipping costs for ordering incorrect lower unit
