Wichard Self-Locking Twisted Shackle Diameter 8mm 5/16" 01224 Sailboat Marine

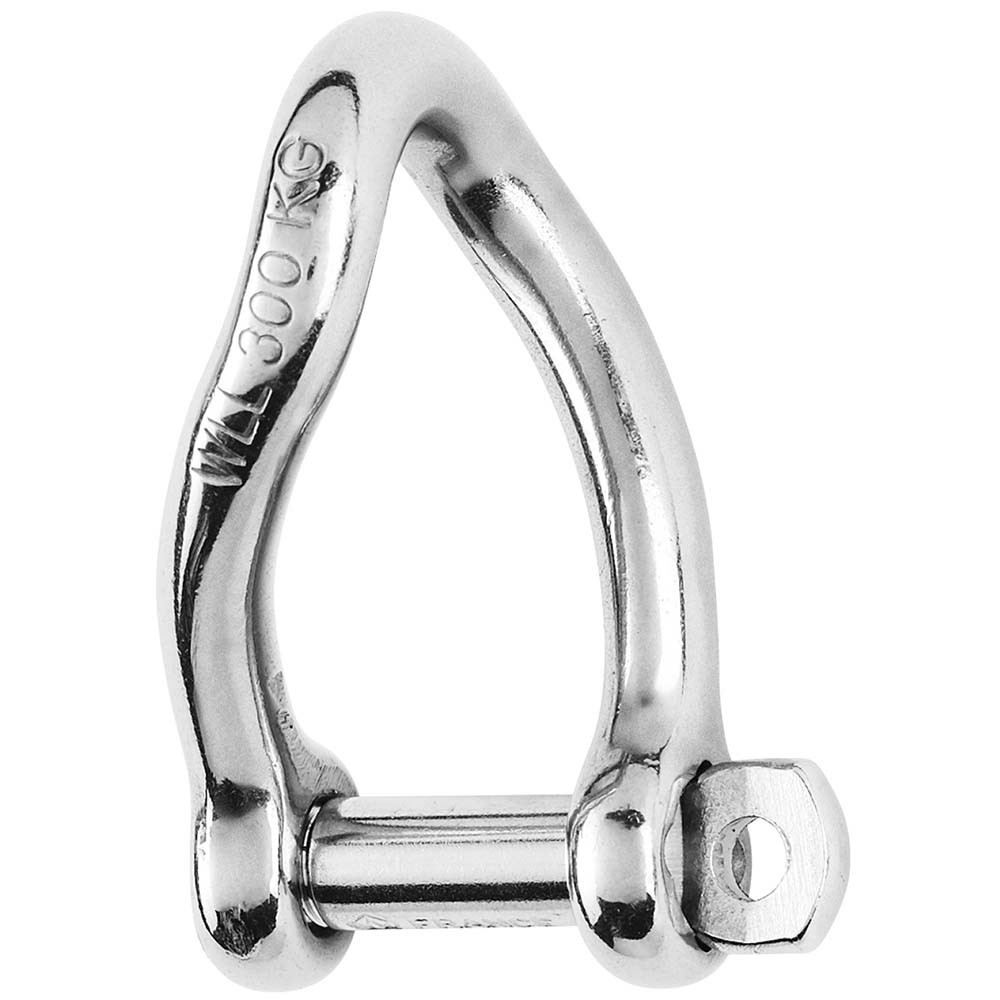

Self-Locking Twisted Shackle Diameter 8mm 5/16"

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a 90deg angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 6610
• Weight (lb) 0.148

Dimensions (see 2nd image):

• A (inch)1-37/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 2-23/64"
