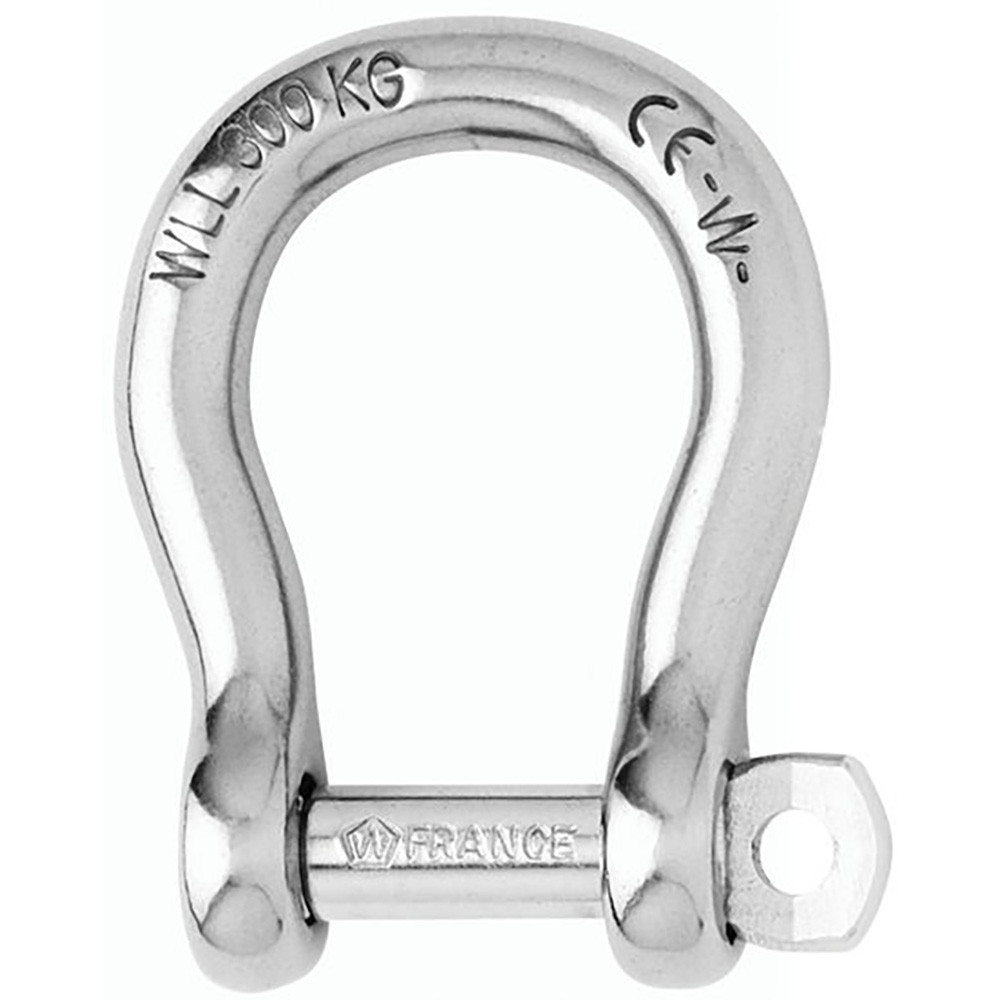

Wichard Not Self-Locking Bow Shackle 20mm Diameter 25/32" 01248 Sailboat Marine

Not Self-Locking Bow Shackle 20mm Diameter 25/32"

Features:

• Bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking
• Part # 01248 is not self-locking

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 9920 / (kg) 4500
• WLL: (lb) 6610 / (kg) 3000
• Breaking load: (lb) 33060 / (kg) 15000
• Weight: (lb) 2.328 / (kg) 1.056

Dimensions:

• A: (inch) 3 5/32" / (mm) 80
• B: (inch) 1 37/64" / (mm) 40
• C: (inch) 25/32" / (mm) 20
• D: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 25/32" / (mm) 20
• E: (inch) 45/64" / (mm) 18
• M: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
