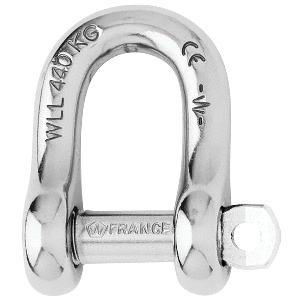

Wichard Captive Pin D Shackle Diameter 6mm 1/4" Sailboat 1403

Captive Pin D Shackle Diameter 6mm 1/4"

Features:

• Captive pin "D" shackle forged in grade 316L St Steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks head...

Specifications:

• Materials 316 St Steel grade
• Working load (lb) 1490
• WLL (lb) 970
• Breaking load (lb) 4850
• Weight (lb) 0.062

Dimensions (see 2nd image):

• A (inch) 25/32"
• B (inch) 15/32"
• C (inch) 9/32"
• D (inch) 35/64"
• D diameter (inch) 15/64"
• E (inch) 15/64"
• F (inch) 1-27/64"
• G (inch) 1-17/64"
