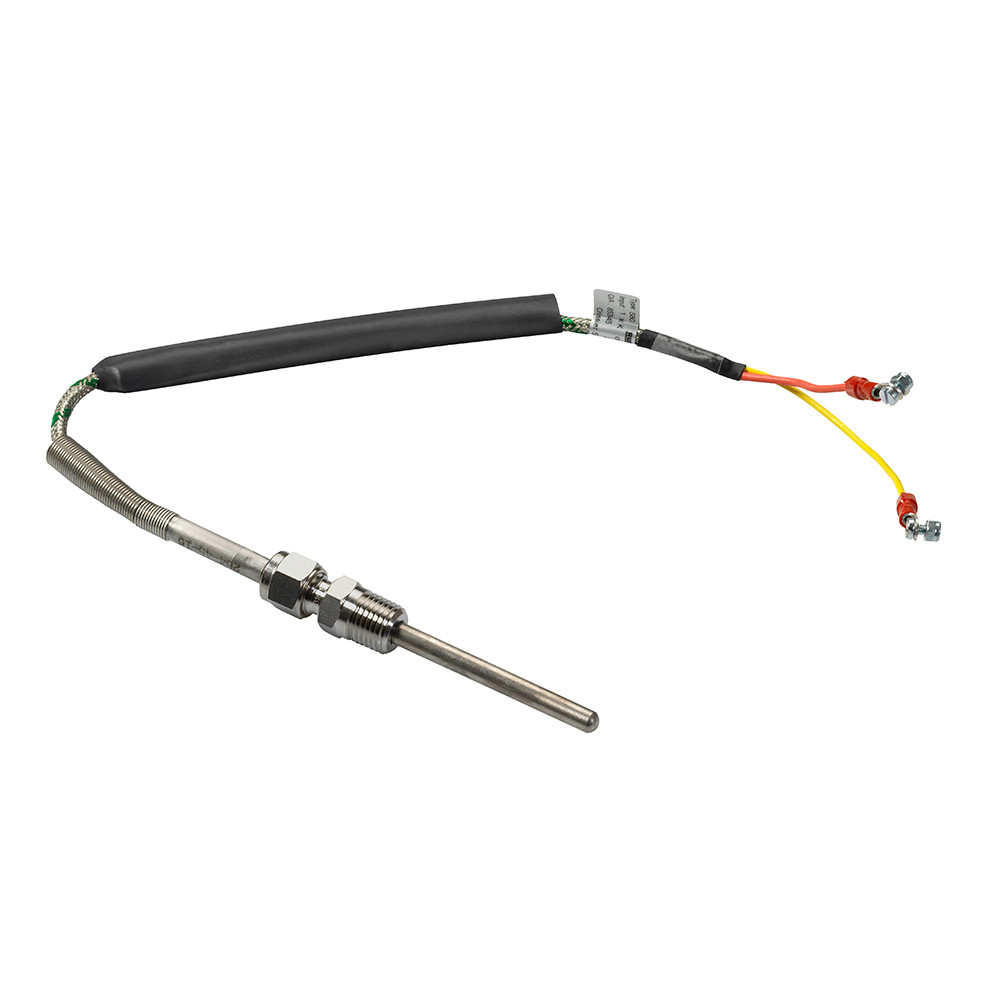

Veratron Pyrometer Sensor 100-900degC/250-1650degF N03-320-264 Boat Marine

$298.53

SKU:

SD0000175208

Condition:

New

Shipping:

Add To Cart To Calculate

Quantity:

Product Description

DESCRIPTION:

Pyrometer Sensor 100-900degC/250-1650degF

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

Plug-and-Play installation and configuration
NMEA 2000 certified

Technical Specifications:

Temperature medium Exhaust gas Coolant Water Air Engine oil Transmission oil Fuel
Input Signal LIN bus
Operating Voltage 6 24 VDC
Pyrometer Sensor
Thermocoupler Element
Measurement Range 100-900degC/250-1650degF
Communication Analog
Signal Output 0 37 MV TC
Sensor Connector Ring Tongue
Thread R 1/4" Male
Warning Contact None
Connector Type Kabeloog
Sender element length + thread (L) Adjustable maximal 60 mm
Sensor diameter 6 mm
Torque 20 Nm

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

BRAND:
Veratron

Internal Code: 83063
Manufacturer Part Number: N03-320-264
