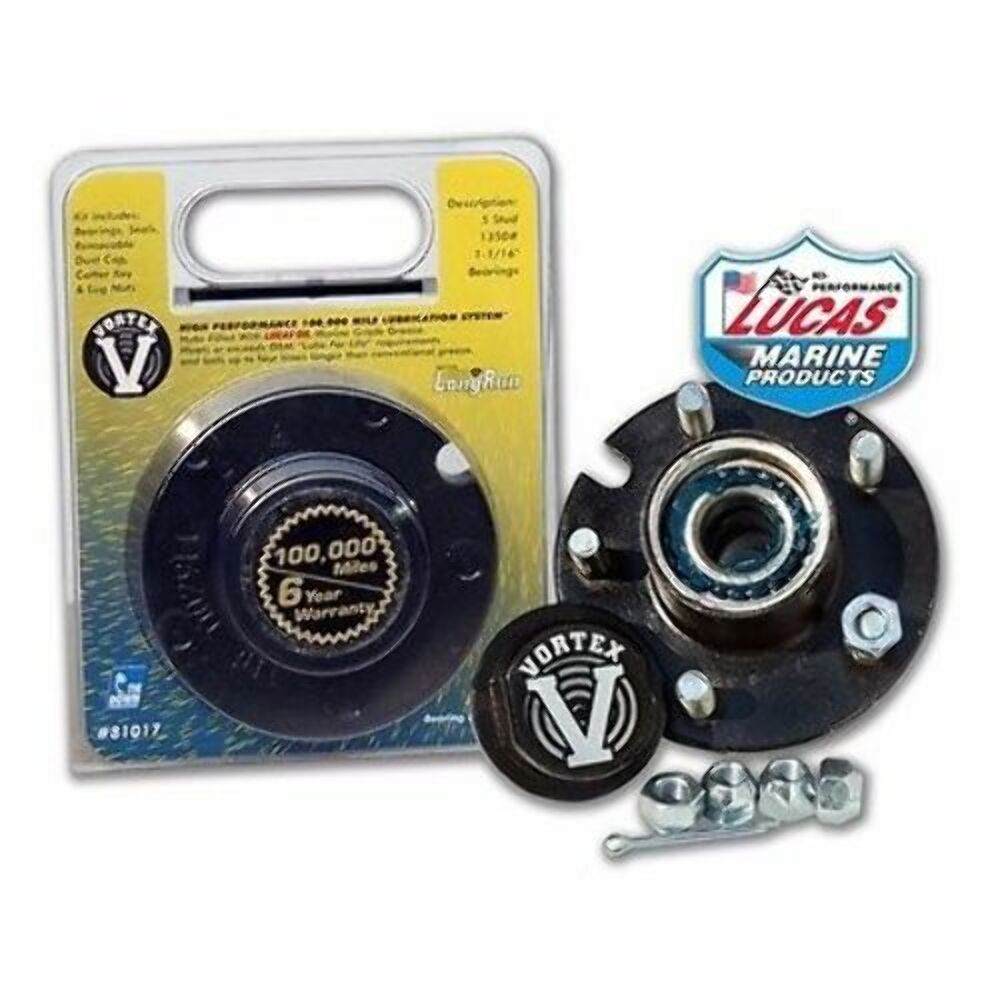

Tie Down 81022 Vortex Hub KIT 5 Bolt on 4-1/2" Marine 1750Lbs Boat Trailer

BRAND: Tie Down Engineering

DESCRIPTION:
- Hub 5 studs on 4 1/2"
- Part Number: K08-528-98
- 1,750# LBS
- Bearings: 1 Each 1-1/16” & 1-3/8” Bearings

FEATURES & ATRIBUTES:
- Feature a 6 year/100,000 mile zero maintenance warranty.
- Completely sealed lubrication reservoir chamber permits maximum lubrication.
- Easily accessible external lubrication port fitting.
- Triple lip spring loaded seal provides improved sealing over single and double lip seals.
- Hub assembly comes pre-greased with Lucas Red N Tacky grease providing wear protection in tough marine environments.

KIT INCLUDES: Bearings, seals, dust cap, cotter pin and lug nuts.

Techical Information
- Bolt pattern: 5 on 4 1/2
- Capacity: 1,750 lbs.
- Hub length: 4-1/4"
- Inner bearing: 1-3/8"
- Outer bearing: 1-1/16"
- E-Coated

Includes:
- (1) Inner bearing: 68149, 1 3/8"
- (1) Outer bearing: 44649, 1 1/16"
- (1) Seal, triple lip, spring loaded
- (1) Dust cap
- (1) Cotter key
- (5) Lug nuts

Manufacturer PN: 81022
Internal Code: 657642
