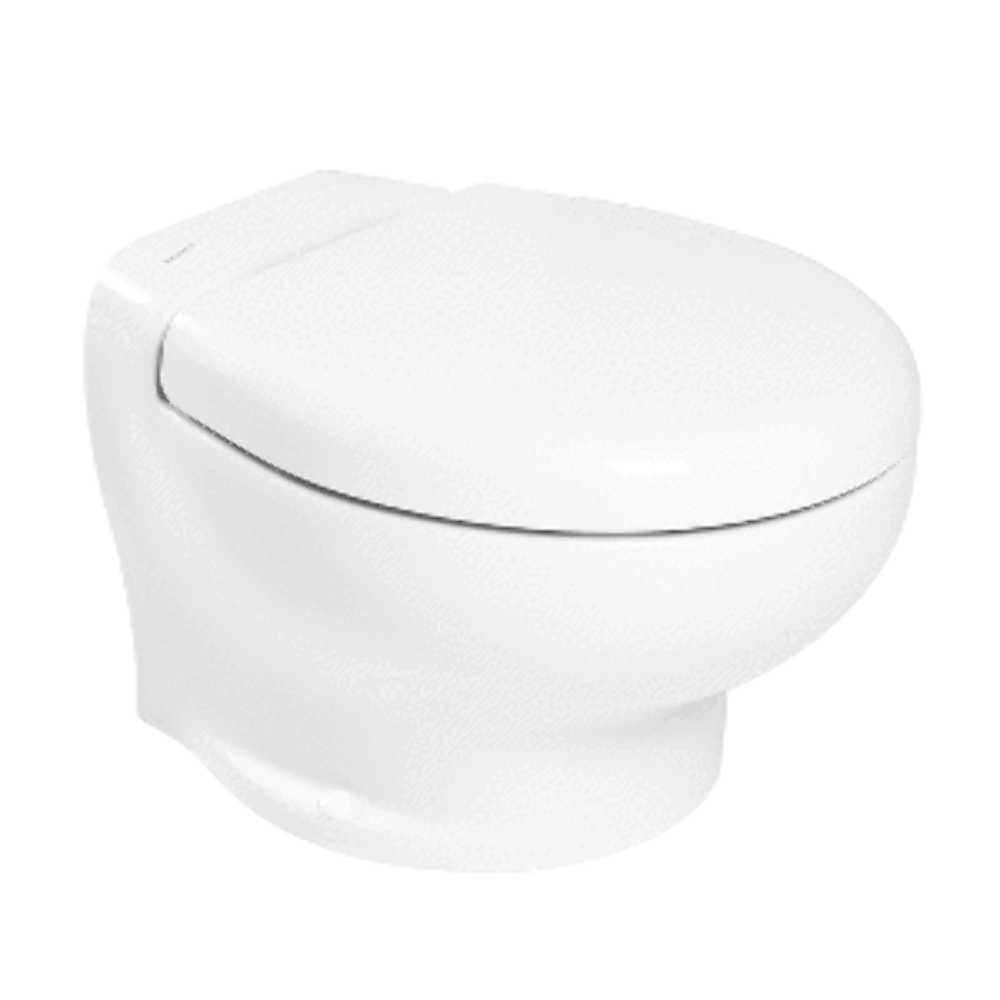

Thetford Nano Touch Compact Toilet 12V Boat RV Marine NAN012PW/TSFT/NA

Nano Touch Compact Toilet 12V

The Tiny Turbo Toilet!

From the experts in macerating toilets Nano toilet utilizes Turbine Technology to produce a powerful clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It&rsquos the result of a strong relationship with the market and fulfills new requirements for vessels below 50&prime (45m). Thetford Marine product development team has created a design that is extremely elegant but also very flexible to install thanks to its compact size.

Features:

• Uses 2 check valves and this combined with a water trap ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean dry bowl after every powerful flush
• User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features

Technical Specifications:

• Material Italian ceramic
• Flush Rate 0.1-0.7 gallons per flush
• Outlet pump recommended fuse 30A
• Outlet pump performance 13.1ft vertical suction 131.2ft horizontal suction
• Inlet solenoid (freshwater) power consumption 9.5W
• Inlet pump (raw water) fuse 8A
• Inlet pump (raw water) pressure 45 PSI

In the Box:

• 1 12v Tecma Nano toilet
• 1 Wall switch and controller
• 1 Black wall switch bezel
• 1 Bone wall switch bezel
• 2 1/4 10 x 2.5&rdquo St Steel lag screws
• 2 1/4&rdquo St Steel washer
• 2 Plastic washers
• 2 Bolt caps
• 2 Hose clamps &ndash 1 1/4&rdquo- 2&rdquo Stainless
• 1 Full tank sensor
• 1 Lower Discharge Check Valve (with straight and elbow fittings)
• 1 Installation/Owner's Manual
