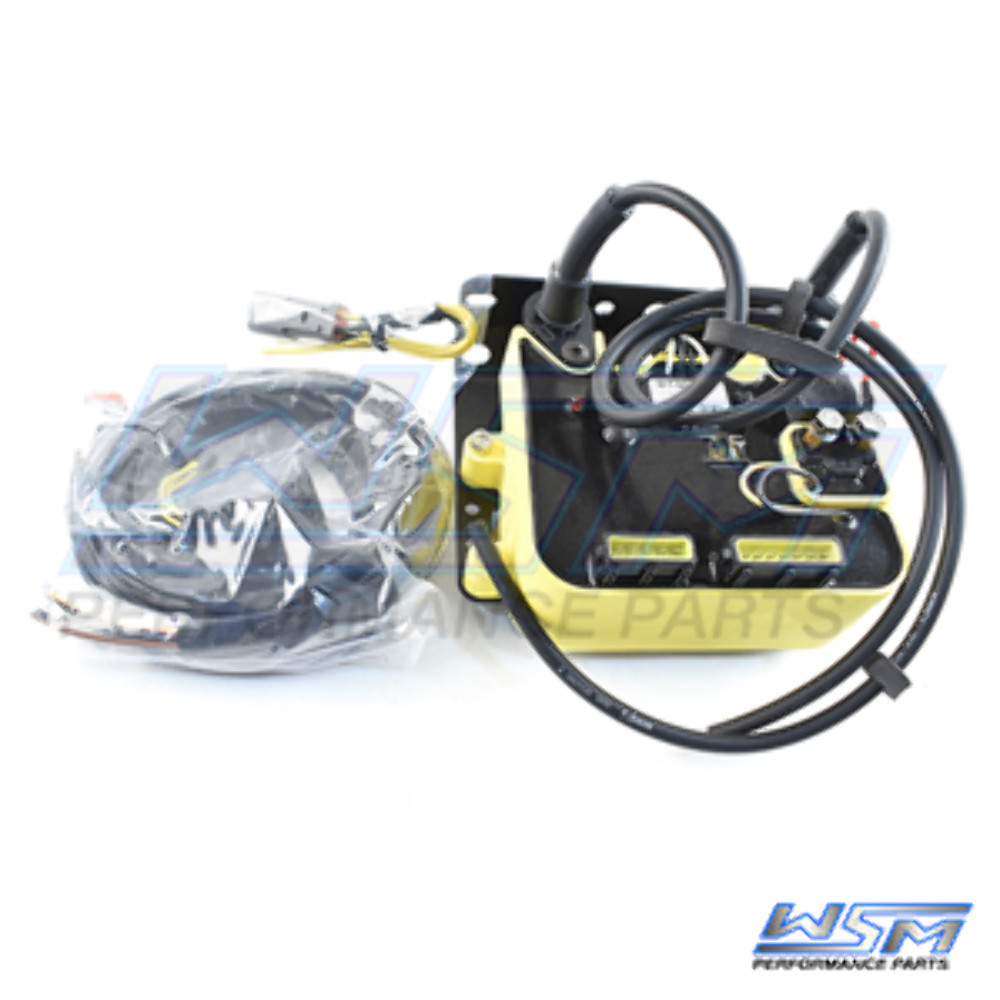

Seedoo 800-951 GSX-GTX-LRV-RX-SPX-XP Electronic Module CDI 78000510 278000897

BRAND: WSM Performance Parts

DESCRIPTION:
- Electronic Module
- Seadoo 800 / 951, 1995-02
- NOTE: COMPLETE ELECTRIC SYSTEM

DETAILS:
- THESE MODULES HAVE EVERYTHING THE PWC NEEDS IN A SINGLE UNIT. IGNITION COIL, STARTER RELAY, RECTIFIER AND A NEW HARNESS.
- IT ALSO HAS SOME EXCLUSIVE FEATURES, SUCH AS, INCREASING THE RPM LIMIT, KEY CODING, IGNITION POINT ADJUSTMENT AND OTHER SETTINGS DESCRIBED IN THE MANUAL.
- ALL CONFIGURATION IS DONE ON THE MODULE ITSELF WITHOUT THE AID OF A DEVICE OR COMPUTER, USING ONLY THE MODULE'S PROGRAMMING BUTTON AND THE PWC START BUTTON.
- AUDIBLE SIGNALS AND LED ASSIST IN CONFIGURATION.

APPLICATION LIST:
Sea-Doo  GSX 800  1996-1997
Sea-Doo  GSX LTD 951  1998-1999
Sea-Doo  GTX 800  1996-1997
Sea-Doo  GTX 951  2000-2002
Sea-Doo  GTX LTD 951  1998-1999
Sea-Doo  LRV 951  2000-2001
Sea-Doo  RX 951  2000-2002
Sea-Doo  RX X 951  2001
Sea-Doo  SPX 800  1997-1999
Sea-Doo  XP 800  1995-1997
Sea-Doo XP 951  2000-2002
Sea-Doo XP LTD 951  1998-1999

Cross Reference, Replaces: 278000510, 278000897, 278000981, 278001079, 278001133, 278001255, 278001342, 278001343, 278001398, 278001499, 278001525, 278001526, 278001718, 289100003

Manufacturer PN: 04-220-24
Internal Code: 04-220-24
