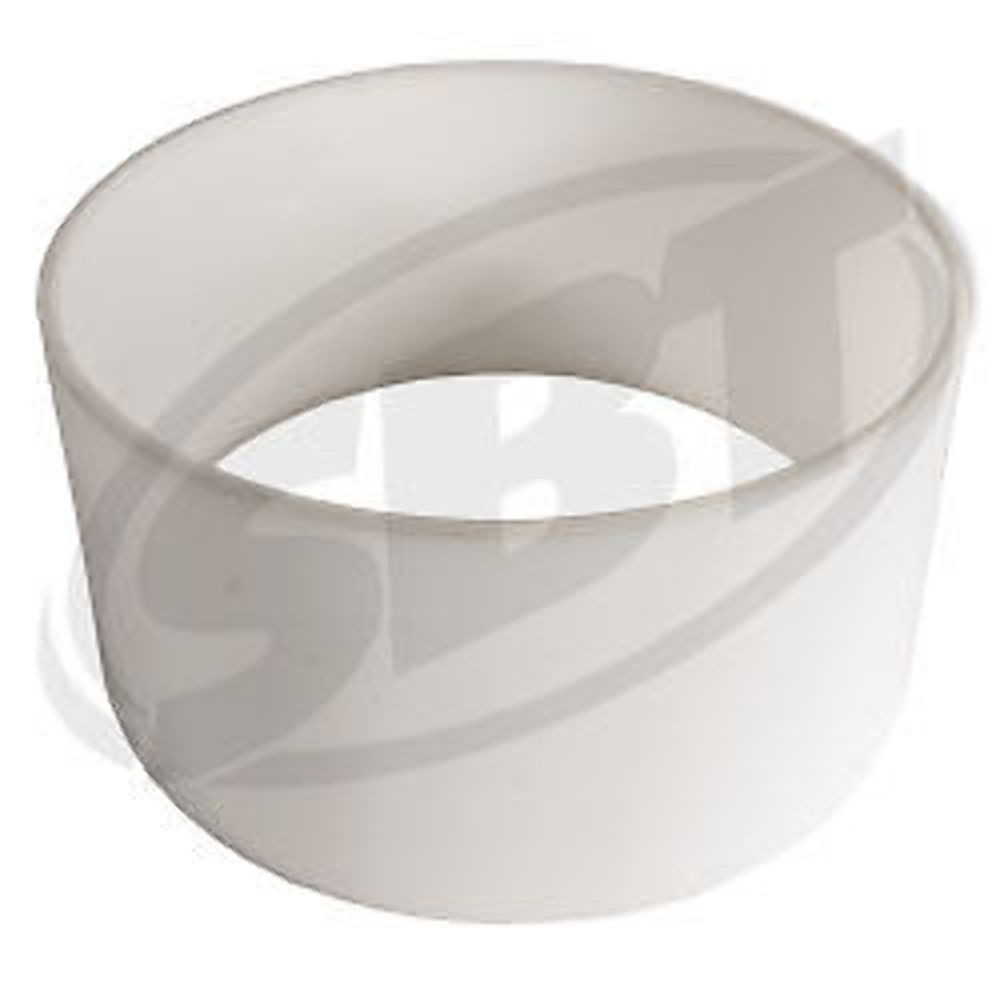

Yamaha Jet Pump Housing Insert Wave Raider/Wave Venture/GP/Xl 700 78-402-02 SBT

• SBT's Delrin wear rings are created as a replacement to OEM wear rings.
• The wear rings aid in stopping speed-rubbing cavitations in your worn jet pump.
• Our SBT Delrin wear rings and liners will restore the tight clearance to your impeller.
• A Jet Ski wear ring is a sacrificial ring that is installed into the jet pump to provide a minimal clearance for the impeller to build thrust.
• More specifically, SBT has engineered our replacement Jet Ski wear rings for reduced friction using one hundred percent Delrin instead of fiberglass filled plastics.
• Polyoxymethylene or polyacetal, commonly known as Delrin, is an engineering thermoplastic used in precision parts that require high stiffness, low friction and excellent dimensional stability.
• The Delrin wear rings have very low water absorption and are chemically resistant because they are acetal based plastics.
• The SBT wear rings perform better and are more economical, which allows you to replace the wear ring every time you are doing work on the jet pump.

Yamaha: Please note that SBT liners will work only with SBT jet pump housings and not OEM jet pump housings.

Fits:

1995 Yamaha Wave Raider 1100 Jet Pump Housing Insert

1996 Yamaha Wave Raider 1100 Jet Pump Housing Insert

1996 Yamaha Wave Venture 1100 Jet Pump Housing Insert

1997 Yamaha GP 1200 Jet Pump Housing Insert

1997 Yamaha Wave Venture 1100 Jet Pump Housing Insert

1997 Yamaha Wave Venture 760 Jet Pump Housing Insert

1998 Yamaha GP 1200 Jet Pump Housing Insert

1999 Yamaha Xl 700 Jet Pump Housing Insert

1999 Yamaha GP 1200 Jet Pump Housing Insert

2000 Yamaha Xl 700 Jet Pump Housing Insert

2001 Yamaha Xl 700 Jet Pump Housing Insert

2002 Yamaha Xl 700 Jet Pump Housing Insert

2003 Yamaha Xl 700 Jet Pump Housing Insert

2004 Yamaha Xl 700 Jet Pump Housing Insert

Years:  1995-2004
