Product Description
BRAND: Ronstan
DESCRIPTION:

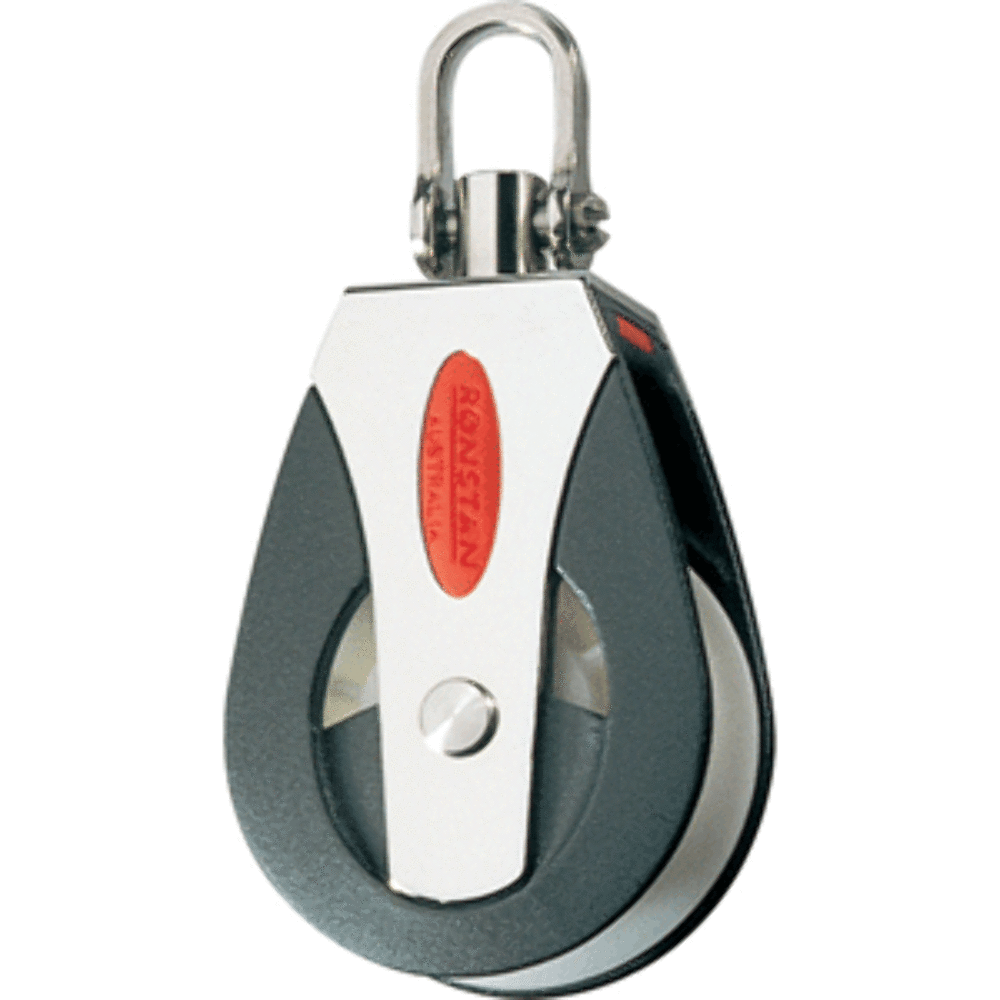

Series 50 All Purpose Block Single Universal Head
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished St Steel races perform equally well with dynamic loads and high static loads. For durability and a long service life these blocks are the right choice for sheets halyards and control line applications for cruising and racing. Captive Lock universal head can be fixed in either of two planes or free to swivel as required
Features:
Applications:
Mainsheet and halyard applications vang and spinnaker control lines on boats to 10M(33')
Materials:
Specifications:
Sheave Ø: 50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Pin Ø: 5mm(3/16")
M.W.L.: 750kg(1,650lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 118g(4.1oz)
Manufacturer Part Number: RF51100
Internal Code: 55253
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
Series 50 All Purpose Block Single Universal Head
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished St Steel races perform equally well with dynamic loads and high static loads. For durability and a long service life these blocks are the right choice for sheets halyards and control line applications for cruising and racing. Captive Lock universal head can be fixed in either of two planes or free to swivel as required
Features:
- Exceptionally high working loads
- Low maintenance long service life
- Self lubricating sheave
- Captive Lock universal head
- Slotted pin shackle eliminates fouled lines
Applications:
Mainsheet and halyard applications vang and spinnaker control lines on boats to 10M(33')
Materials:
- Nylatron sheave
- Grade 316 St Steel load strap and head fitting
- Impact and U.V. resistant fiber reinforced Nylon cheeks
Specifications:
Sheave Ø: 50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Pin Ø: 5mm(3/16")
M.W.L.: 750kg(1,650lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 118g(4.1oz)
Manufacturer Part Number: RF51100
Internal Code: 55253
