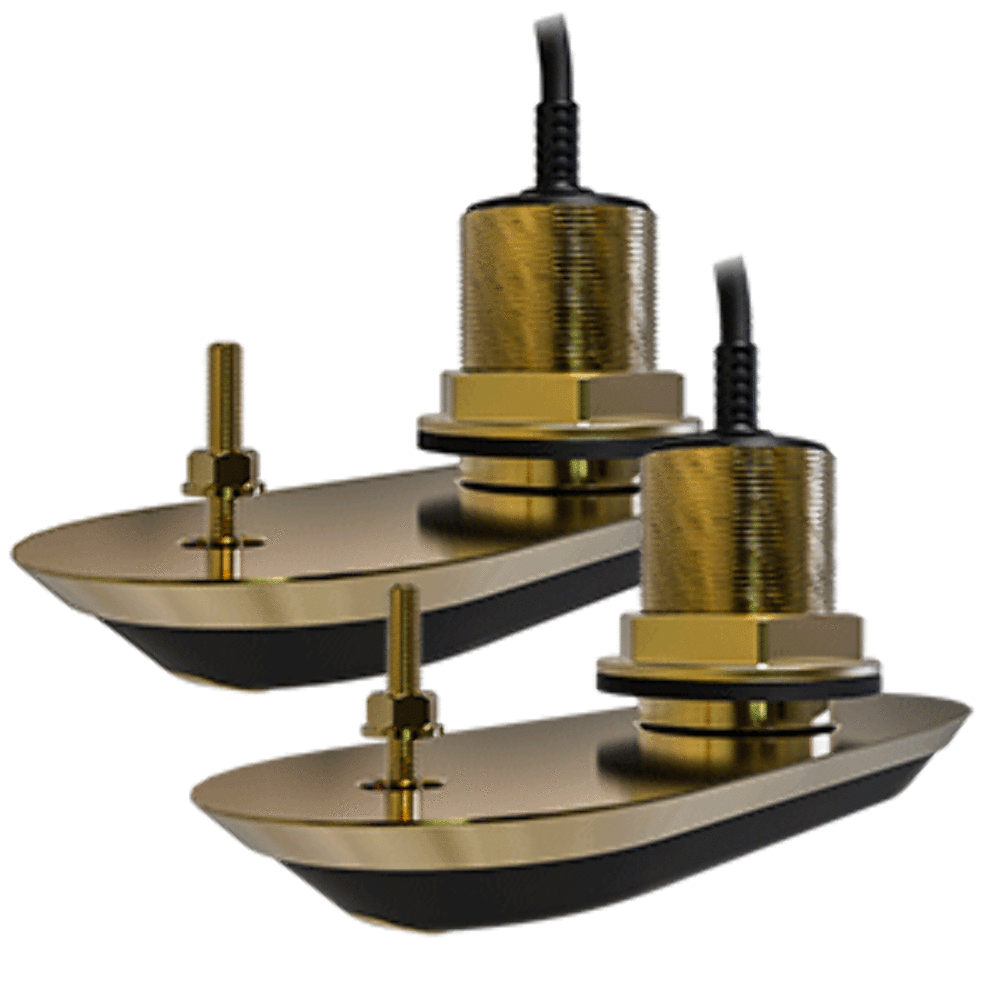

Raymarine RV-220 RealVision 3D Bronze Transducer PAIR Thru-Hull 20Deg 8M Cable

RealVision 3D Bronze Thru-Hull Transducer Pair Pack 20Deg 8M Cable & Y-Cable

Designed for inboard or outboard boats the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar.

The RV-220 system is a 4-channel Wide Spectrum CHIRP transducer system with DownVision SideVision high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery automatically compensating for vessel motion. You&rsquoll enjoy crystal-clear imagery in waves swells and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick accurate readings.

Raymarine&rsquos RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13Deg to 20Deg. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards the other to starboard and downwards ensuring a full 180Deg of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail joining y-cable and 8-meter extension cable resulting in an overall cable length of 10M (33'.)

What&rsquos in the Box?

• RV-220P Bronze Port Transducer with 2M cable
• RV-220S Bronze Starboard Transducer with 2M cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8M (26') Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions
