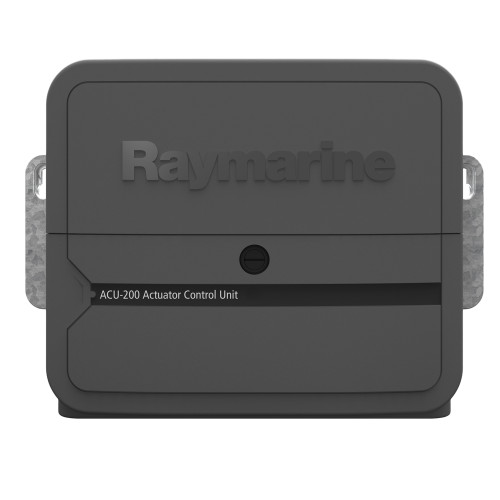

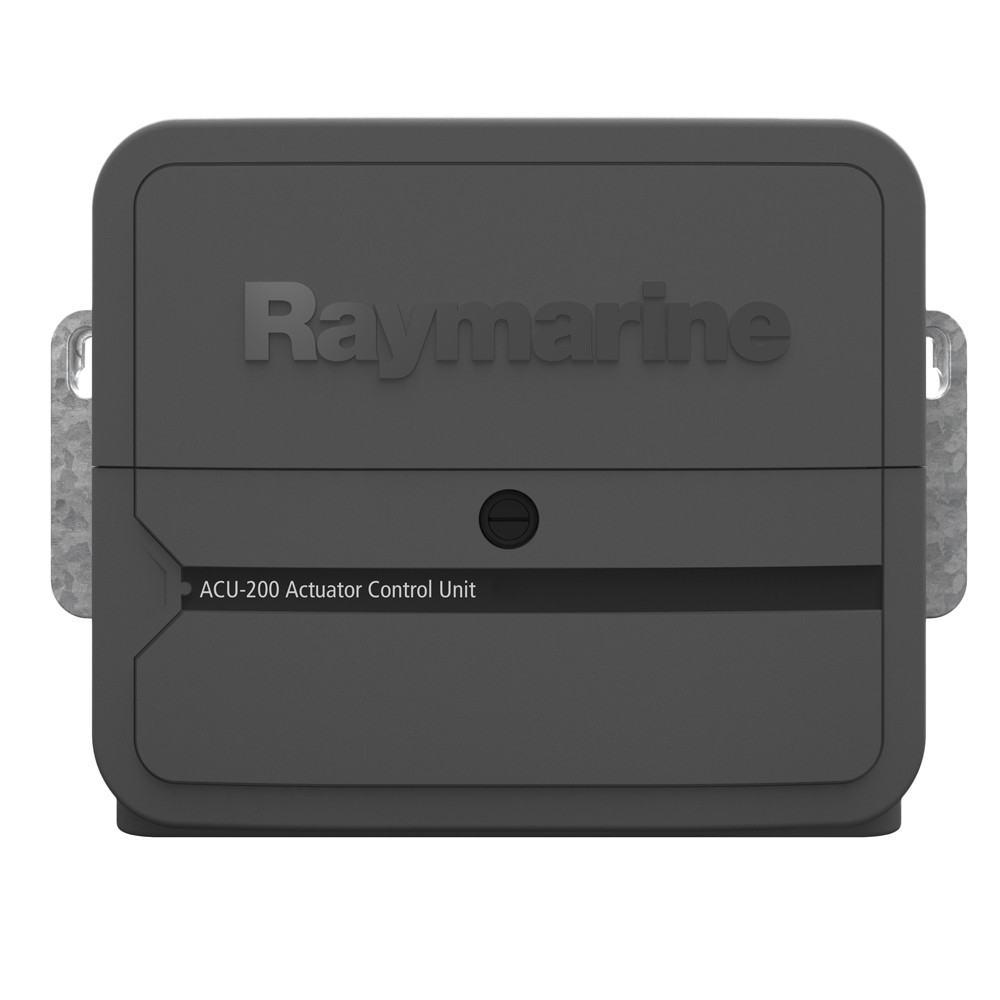

Raymarine ACU-200 Acuator Control Unit Type 1 Hydraulic Linear-Rot Drive E70099

DESCRIPTION:
Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V

Connections

• Includes the M81105 Rotary Rudder Reference


• Sleep switch

• Power

• Drive motor

• Drive clutch

• Ground

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) Main Power Supply
300 mA (12/24V)
Power Consumption (standby) SeaTalk^ng Power Supply
20 mA (12V)
SeaTalk^ng LEN (Load Equivalency Number)
1
SeaTalk^ng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalk^ng

Installation Environment

• Operating Temperature: -20DegC to +55DegC (-4DegF to +131DegF)

• Storage Temperature: -30DegC to +70DegC (-22DegF to +158DegF)

• Relative Humidity: MAX 93%

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance

• Europe: 2004/108/EC

• Australia and New Zealand: C-Tick, Compliance Level 2

BRAND:
Raymarine

Internal Code: 49109
Manufacturer Part Number: E70099
