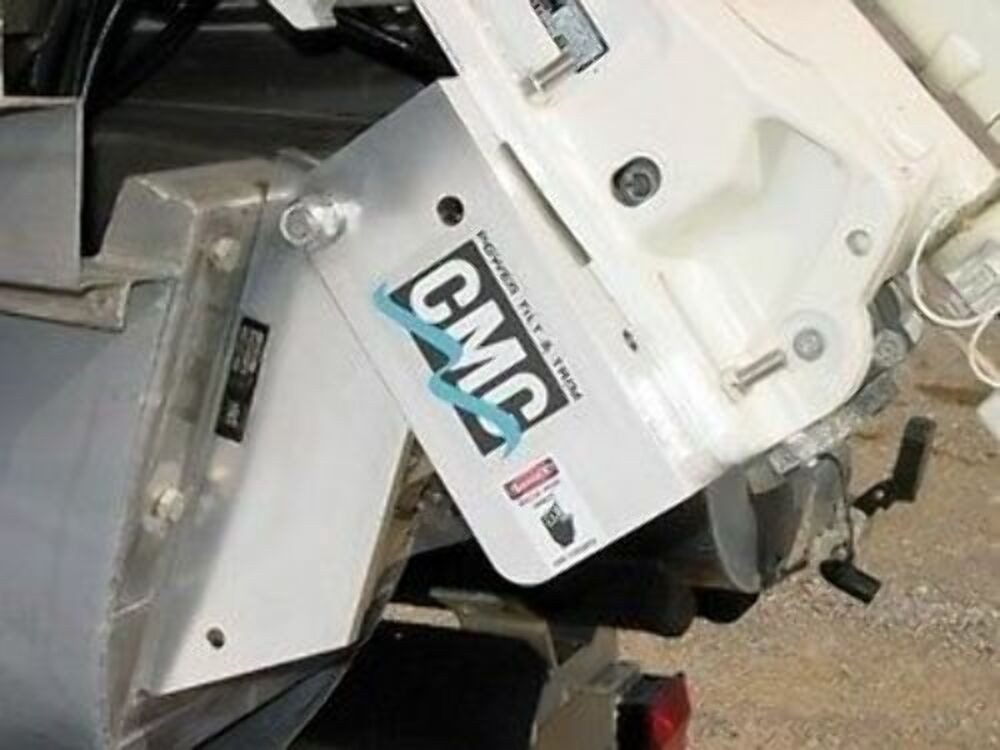

Power Tilt Trim Electric Hydraulic CMC PT-35 UNIVERSAL 52100 Outboard UP to 35HP

BRAND: CMC

DESCRIPTION:
- CMC Electric Hydraulic Tilt and Trim
- Includes: Hydraulic Trim, harness and switch.
- Does not include mounting bolts.

FEATURES:
- Benefits: You Get Power Tilt & Trim, Better Boat Handling, More Speed, Lower Fuel Consumption and No More Back Strain!
- Rated for 35 HP and smaller outboard motors.
- Engine mounting bracket MUST be 11" or less.  See note at the bottom.
- Can be mounted using bolts or using the OEM stock clamp bolt
- 5-1/2” set back to enhance boat stability and performance.
- 84° of tilt and trim.
- 1/4” 6061 T6 extruded aluminum construction with stainless steel fasteners.
- Electric hydraulic actuator rated at 7853 lbs. of thrust.
- Accommodates clamp-on or bolt-on motors without the need of an adapter

SPECIFICATIONS:
- Power rating: up to 35 h
- Set Back: 5-1/2" Set Back to Enhance Boat Stability and Performance
- Trim and tilt: 84°
- Inside dimension of the motor mounting area: 11"
- Electric hydraulic actuator rating: 7853 lbs. of thrust
- Weight: 24 lbs

IMPORTANT FITTING NOTE:
- The inside dimension of the motor mounting area of the PT-35 is 11 inches.  Before ordering, please make sure that the maximum width of the clamp mounting feet and/or mounting bolts of the motor fit into this area.
- In other words: the pre-drilled holes of the mounting bolts are 11" center to center.  If client is mounting the engine using the stock clamp bolts the distance between center to center must be less than 11" as well.
- Mounting bolts are not included with the PT-35.

Manufacturer PN: 52100
Internal Code: 303444
