Newmar PT-14W Battery Charger 115-230VAC w 3 Back at 14A Boat Yacht Gel-AGM-Lead

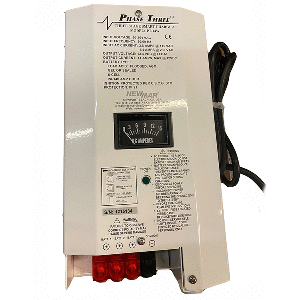

PT-14W Battery Charger

Newmar&rsquos Phase Three Series Battery Chargers employ &ldquoSmart&rdquo battery charging technology for 12-volt systems aboard marine applications including workboats military vessels commercial vessels and recreational craft. This charger interacts with batteries providing the optimum three-stage charge process for fast recovery and conditioning maximizing performance and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell flooded lead-acid or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries&rsquo ambient temperature. This model is housed in a rugged stainless-steel case with a durable white powder coat finish and the internal circuitry is polyurethane-coated for maximum corrosion resistance.

Features:

• &ldquoSmart&rdquo circuitry provides three-stage charging &ndash bulk absorption float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks ammeter indicates total output current. (Except PT-7)
• The optional sensor adjusts output voltage based on battery temperature. (Except PT-7)
• Current limiting prevents damage from overloading
• Clean well-regulated output can be used as a power supply can power loads directly without a battery in line
• Built to last &ndash rugged stainless-steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting Thermal Protection Forced Air Cooling Drip Shield
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 85-264
• Input Amps @ Full Load: @ 115 VAC: 2.8 @ 230 VAC: 1.4
• P.F. Rating: .93@230V and .98@115V
• Max Output Amps: 14
• Output Banks: 3
• Battery Capacity (Amp-Hours): 28-140
• Operating Temp. Rating Reference: T-2
• Case Size Reference: A-2
• Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (31.8A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1&rdquo (2.8 cm) to height and .92&rdquo (2.3 cm) to depth
• Weight Lbs./Kg: 8/4
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Equalize Option: Yes
• Output Indicator Reference: M-3
• Compliance Reference: CG CE

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 40 degrees C to 60% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
• Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

• CG: USCG CFR 183.410 (Ignition protected)
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9 Under 90 meters Rules 2006 4-6-4/7.19 and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel model RP for use with all models except PT-7 and PT-40U (LEDs indicate the charger output stage. Manual re-initialization of a three-stage charge cycle. With 25&prime of cable. Panel dimensions: 3&Prime H x 4.75&Prime W)
