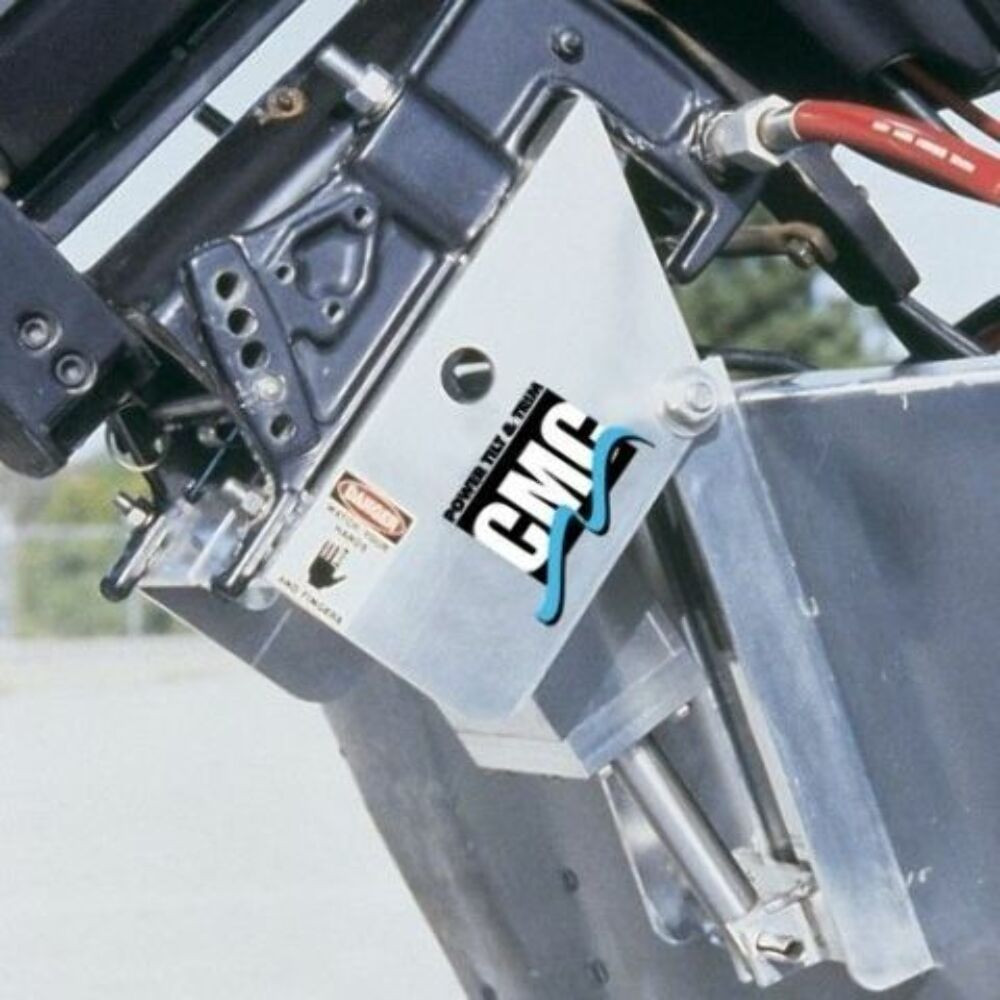

Mercury Yamaha Honda UNIV Electric Hydraulic Power Tilt Trim 35HP Max CMC PT-35
Product Description
BRAND: CMC
DESCRIPTION:
- CMC Electric Hydraulic Tilt and Trim
- Includes: Hydraulic Trim.
- Does not include mounting bolts.
FEATURES:
- Benefits: You Get Power Tilt & Trim, Better Boat Handling, More Speed, Lower Fuel Consumption and No More Back Strain!
- Rated for 35 HP and smaller outboard motors.
- Engine mounting bracket MUST be 11" or less. See note at the bottom.
- Can be mounted using bolts or using the OEM stock clamp bolt
- 5-1/2” set back to enhance boat stability and performance.
- 84° of tilt and trim.
- 1/4” 6061 T6 extruded aluminum construction with stainless steel fasteners.
- Electric hydraulic actuator rated at 7853 lbs. of thrust.
- Accommodates clamp-on or bolt-on motors without the need of an adapter
SPECIFICATIONS:
- Power rating: up to 35 h
- Set Back: 5 1/2"
- Trim and tilt: 84°
- Inside dimension of the motor mounting area: 11"
- Electric hydraulic actuator rating: 7853 lbs. of thrust
- Weight: 24 lbs
Manufacturer PN: 52100
Internal Code: 303444
IMPORTANT FITTING NOTE:
- In other words: the pre-drilled holes of the mounting bolts are 11" center to center. If client is mounting the engine using the stock clamp bolts the distance between center to center must be less than 11" as well.
- Mounting bolts are not included with the PT-35.
Returns IN NEW ITEMS accepted in 30 days"""ONLY""" if they have NOT being installed and are in similar condition as when they were shipped. If you missed parts of the item, item CANNOT be returned.
