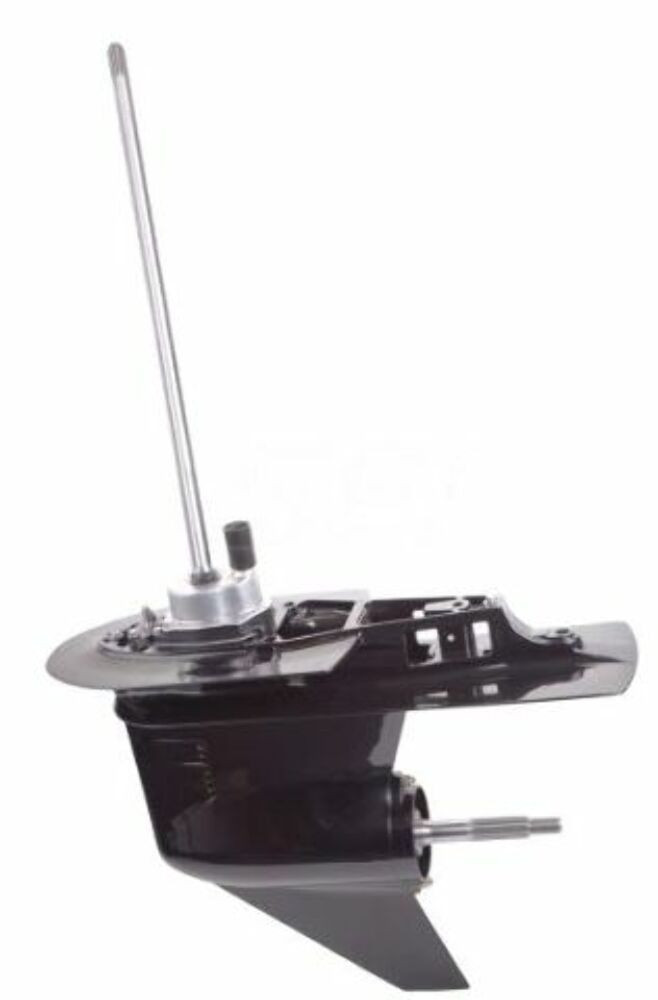

Mercury 70-90-115-125 CARBUR 2 Stroke Lower Unit Shaft 20" Ratio 2:07:1 Gearcase
$1,411.13
Product Description
Replaces MOST but not all 3 & 4 Cylinder 70 to 125 HP 1987 to current.
MAKE SURE THE PICTURE OF YOUR DRIVESHAFT MATCHES YOUR DRIVESHAFT AT THE TOP
The easiest way to identify if this lower unit fits your engine it is by the amount of shift shaft protruding from the shift bushing.
- If it measures 7/8 or 5-7/8, our units will work.
- If the measurements are 3/4 inch longer, our unit will not work
|
4 STROKE 70-90-115HP EARLY |
|||||||||
|
Type of Motor |
Midsection Length |
Driveshaft Mercury PART # |
Driveshaft splines |
Spline Outside Diameter |
Lenght of Splines |
Driveshaft Length* |
Gear Ratio |
Gear Teeth Count |
PICTURE REF# |
|
L |
20" |
45-858765T1 |
18 |
.760" |
2.390" |
23" |
2:07:01 |
14-29 |
4 |
|
XL |
25" |
45-878575T1 |
18 |
.760" |
2.390" |
28" |
2:07:01 |
14-29 |
4 |
|
L |
20" |
45-858765T1 |
18 |
.760" |
2.390" |
23" |
2:31:1 / 2:33:1 |
13-30 / 12-28 |
4 |
|
XL |
25" |
45-878575T1 |
18 |
.760" |
2.390" |
28" |
2:31:1 / 2:33:1 |
13-30 / 12-28 |
4 |
Notes:
- 2006 & up models may use a different shift system
- To compare the driveshaft length from your lower unit to our chart. Measure your driveshaft from top of lower unit housing (bottom of water pump) to top of driveshaft
DESCRIPTION:
- NEW aftermarket LOWER UNIT, not a remanufactured unit or a rebuilt unit
- Warranty: 3 year no fault warranty
- 100% OEM compatible, Bolt on application
- Includes water pump and driveshaft,
- Does NOT include anode kit
- Does NOT include gearcase OIL
- No core charge, keep your old unit
RESTOCKING FEES OF 10% APPLIES IF YOU ORDER THE INCORRECT LOWER UNIT.
IT COST US OVER $100 TO PROCESS A LOWER UNIT RETURN IN DIRECT FEES
CLIENT MUST SEND ENGINE INFORMATION SUCH AS SERIAL NUMBER AFTER PLACING ORDER.
Doubts??
CLIENT MUST SEND ENGINE INFORMATION SUCH AS SERIAL NUMBER AFTER PLACING ORDER.
Doubts??
Need more info? Send us a question. (bottom left ""Ask a Question"")
If extremely necessary, txt or what ap +1954 and 610 and finally 0765
Satisfaction guaranteed in all products we sell.
Returns accepted in 14 days for money back in NEW ITEMS ONLY.
