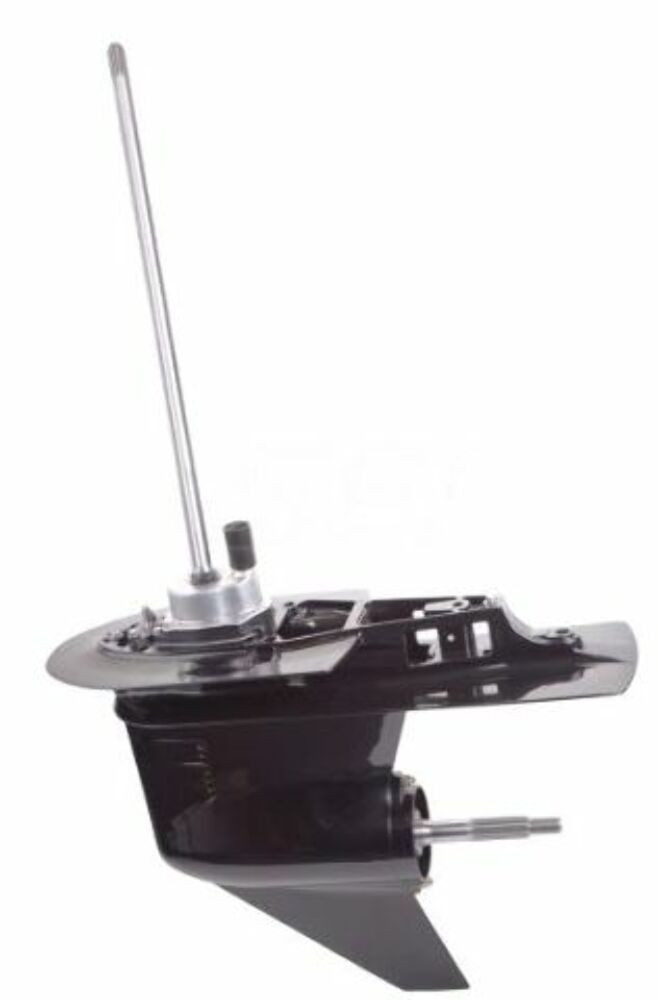

Mercury 4 Stroke 75-90-115 EARLY Lower Unit Ratio2.33 Shaft 20" Gearcase 9011J29
$1,411.13
Product Description
Replaces:
- MOST but not all mercury 75-90-115 HP 4 strokes engines
- Gear Ratio 2.31 and 2.33:1
- For engines 20" shaft
Replaces Mercury PN: 9011J29
PLEASE SEND US A QUESTION INCLUDING:
- Engine serial number to confirm gear ratio
- Engine model number to confirm shaft lenght
- HP and year
- MOST but not all mercury 75-90-115 HP 4 strokes engines
- Gear Ratio 2.31 and 2.33:1
- For engines 20" shaft
Replaces Mercury PN: 9011J29
PLEASE SEND US A QUESTION INCLUDING:
- Engine serial number to confirm gear ratio
- Engine model number to confirm shaft lenght
- HP and year
MAKE SURE THE PICTURE OF YOUR DRIVESHAFT MATCHES YOUR DRIVESHAFT AT THE TOP
The easiest way to identify if this lower unit fits your engine it is by the amount of shift shaft protruding from the shift bushing.
- If it measures 7/8 or 5-7/8, our units will work.
- If the measurements are 3/4 inch longer, our unit will not work
|
4 STROKE 70-90-115HP EARLY |
|||||||||
|
Type of Motor |
Midsection Length |
Driveshaft Mercury PART # |
Driveshaft splines |
Spline Outside Diameter |
Lenght of Splines |
Driveshaft Length* |
Gear Ratio |
Gear Teeth Count |
PICTURE REF# |
|
L |
20" |
45-858765T1 |
18 |
.760" |
2.390" |
23" |
2:07:01 |
14-29 |
4 |
|
XL |
25" |
45-878575T1 |
18 |
.760" |
2.390" |
28" |
2:07:01 |
14-29 |
4 |
|
L |
20" |
45-858765T1 |
18 |
.760" |
2.390" |
23" |
2:31:1 / 2:33:1 |
13-30 / 12-28 |
4 |
|
XL |
25" |
45-878575T1 |
18 |
.760" |
2.390" |
28" |
2:31:1 / 2:33:1 |
13-30 / 12-28 |
4 |
NOTES:
- 2006 & up models may use a different shift system
- To compare the driveshaft length from your lower unit to our chart. Measure your driveshaft from top of lower unit housing (bottom of water pump) to top of driveshaft
DESCRIPTION:
- NEW aftermarket LOWER UNIT, not a remanufactured unit or a rebuilt unit
- Warranty: 3 year no fault warranty
- 100% OEM compatible, Bolt on application
- Includes water pump and driveshaft,
- Does NOT include anode kit
- Does NOT include gearcase OIL
- No core charge, keep your old unit
- 2006 & up models may use a different shift system
- To compare the driveshaft length from your lower unit to our chart. Measure your driveshaft from top of lower unit housing (bottom of water pump) to top of driveshaft
DESCRIPTION:
- NEW aftermarket LOWER UNIT, not a remanufactured unit or a rebuilt unit
- Warranty: 3 year no fault warranty
- 100% OEM compatible, Bolt on application
- Includes water pump and driveshaft,
- Does NOT include anode kit
- Does NOT include gearcase OIL
- No core charge, keep your old unit
Internal Code: 90205A20FEI
RESTOCKING FEES OF 10% APPLIES IF YOU ORDER THE INCORRECT LOWER UNIT.
IT COST US OVER $100 TO PROCESS A LOWER UNIT RETURN IN DIRECT FEES
CLIENT MUST SEND ENGINE INFORMATION SUCH AS SERIAL NUMBER AFTER PLACING ORDER.
Need more info?
Send us a question. (bottom left ""Ask a Question"")
If extremely necessary, txt +1954 and also 610 and finally 0765
CLIENT MUST SEND ENGINE INFORMATION SUCH AS SERIAL NUMBER AFTER PLACING ORDER.
Need more info?
Send us a question. (bottom left ""Ask a Question"")
If extremely necessary, txt +1954 and also 610 and finally 0765
Satisfaction guaranteed in all products we sell.
Returns accepted in 14 days for money back in NEW ITEMS ONLY.
We must make sure you are ordering the correct lower unit before shipping. We must recieve engine information to make sure this fits your engine
