Product Description
BRAND: Marinco
DESCRIPTION:

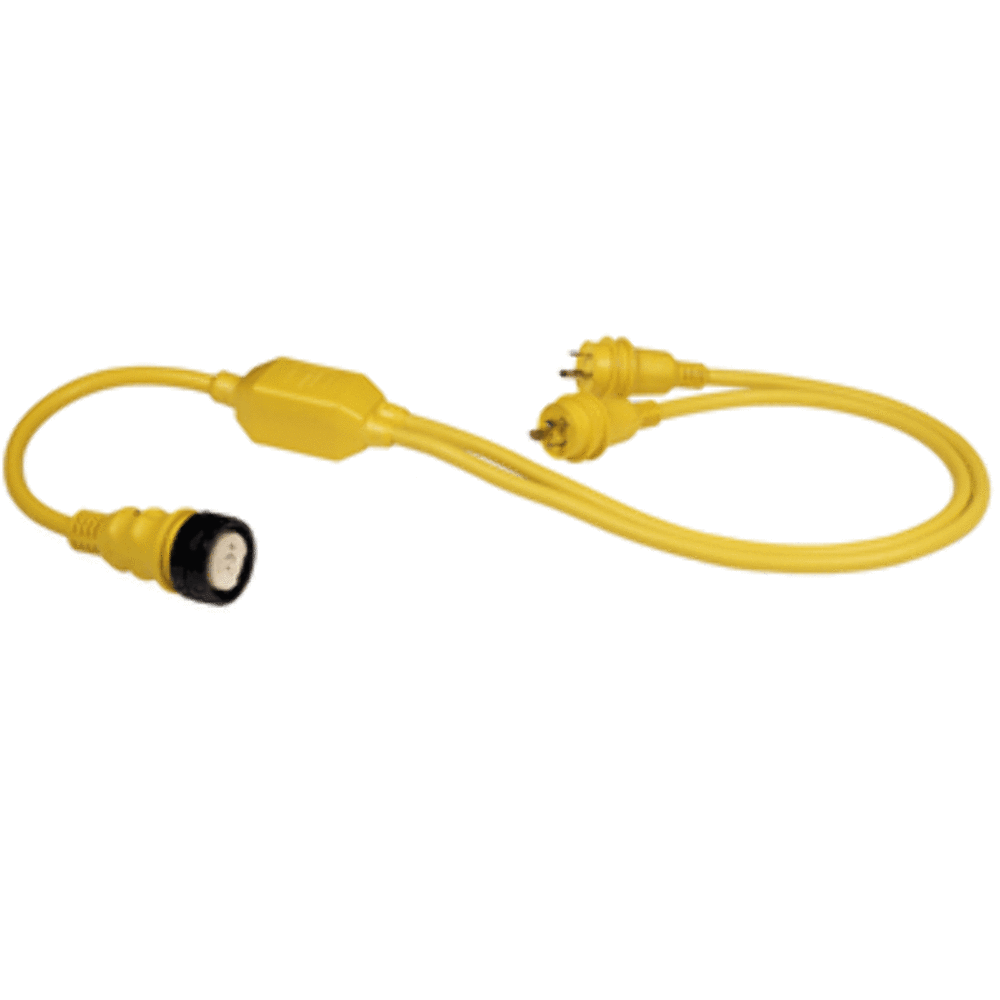

Reverse "Y" AdapterThe Reverse "Y" Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only two 30A 125V receptacles are available. Note: Reverse "Y" will NOT work with 50A 125V 3-wire inlets. Power is provided in both circuits to the 4-wire inlet but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation. Boat Side: Female Connector50A 125/250Vw/Sealing Collar SystemAttaches to boat inlet or cordsetDock Side: Male Plug2-30A 125V LockingAttaches to dockside receptacle or cordsetWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: RY504-2-30
Internal Code: 49257
Brochure:
Instalation Guide:
Video:
