Product Description
BRAND: Maretron
DESCRIPTION:

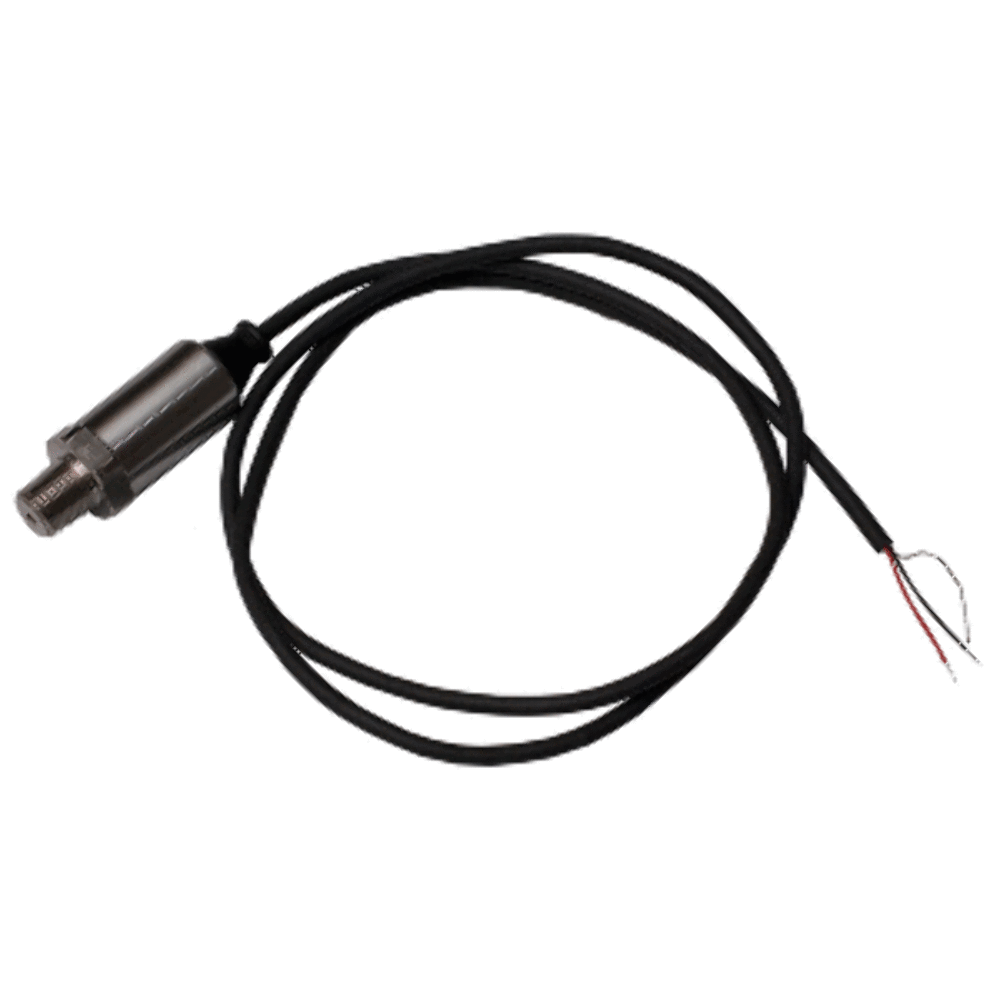

Pressure Transducer 0 to 5000 PSIThis pressure transducer is designed to connect to the NMEA 2000; network via a Maretron FPM100 Fluid Pressure Module.Specifications:Range: 0 to 5000 PSI (344.74 bar)Accuracy: +/- 0.5% Full ScaleType: Absolute (no vent tube)Installation:All Maretron pressure transducer assemblies are equipped with a 1/4 in. NPT male threaded fitting. Install the pressure transducer to a 1/4 in. NPT female fitting on the system or tank is to be monitored with a maximum torque of 150 in-lbs (16.95 Nm).If you are monitoring a system where pressure spikes or transients will occur or where the pressure will exceed the maximum pressure rating of the pressure transducer install a Pressure Snubber (PT-SNUB-01) onto the system being monitored first then install the pressure transducer to the female port on the pressure snubber.
Manufacturer Part Number: PT-0-5000PSI-01
Internal Code: 99018
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/99018IN.pdf
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
Pressure Transducer 0 to 5000 PSIThis pressure transducer is designed to connect to the NMEA 2000; network via a Maretron FPM100 Fluid Pressure Module.Specifications:Range: 0 to 5000 PSI (344.74 bar)Accuracy: +/- 0.5% Full ScaleType: Absolute (no vent tube)Installation:All Maretron pressure transducer assemblies are equipped with a 1/4 in. NPT male threaded fitting. Install the pressure transducer to a 1/4 in. NPT female fitting on the system or tank is to be monitored with a maximum torque of 150 in-lbs (16.95 Nm).If you are monitoring a system where pressure spikes or transients will occur or where the pressure will exceed the maximum pressure rating of the pressure transducer install a Pressure Snubber (PT-SNUB-01) onto the system being monitored first then install the pressure transducer to the female port on the pressure snubber.
Manufacturer Part Number: PT-0-5000PSI-01
Internal Code: 99018
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/99018IN.pdf
Video:
