Product Description
BRAND: Maretron
DESCRIPTION:

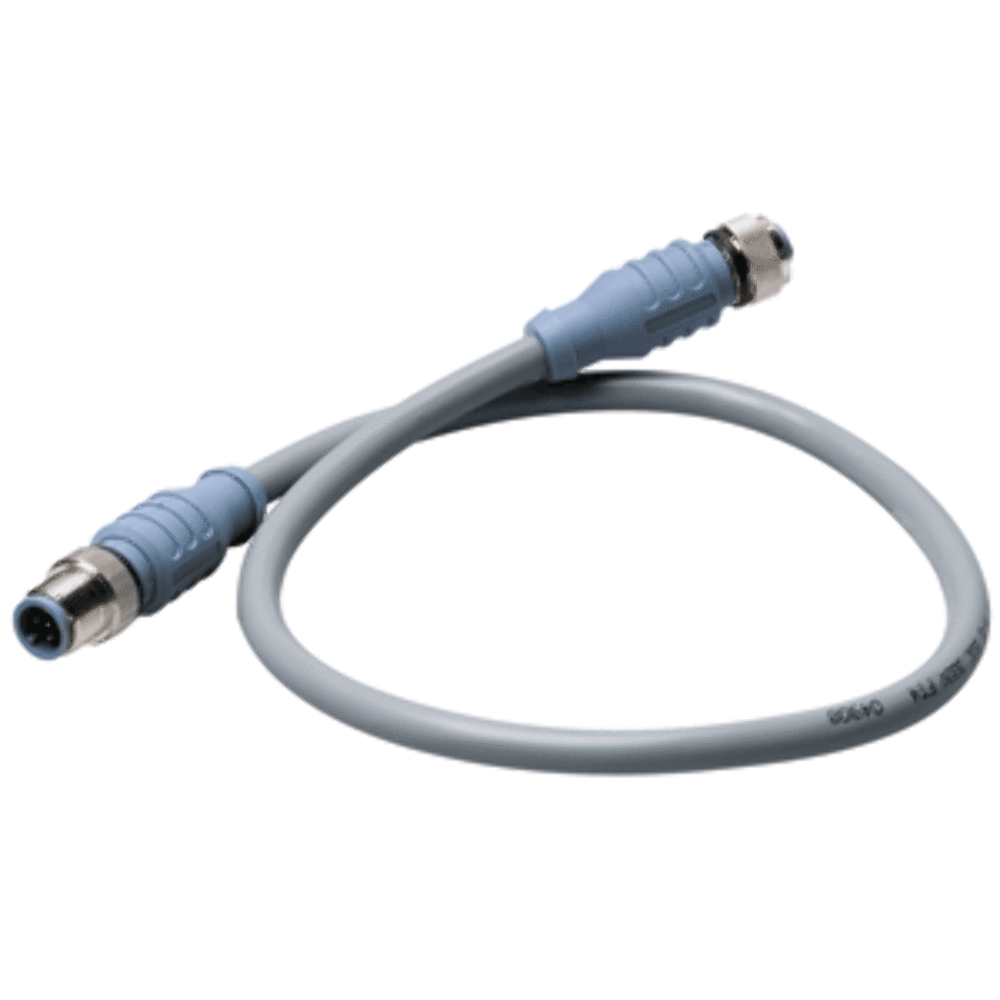

Micro Double-Ended Cordset 0.5MMechanicalContact Carrier Mat/Color: Thermoplastic PUR/Blue-GrayMolded Body Mat/Color: Thermoplastic PUR/Blue-GrayContact Mat/Plating: Brass/GoldCoupling Nut Mat/Plating: Brass/NickelConnector Outside Diameter: 0.59" ElectricalCurrent Rating: 4.0 AmpsVoltage Rating: 250 V CableOuter Jacket Mat/Color: PVC/GrayConductor Insulation Material: HDPE (data pair) SRPVC (power pair)Number of Conductors: 4X22 AWG 22 AWG Drain WireShielding (3-Levels): FOIL (Overall) FOIL (Power Pair) FOIL (Data Pair)EnvironmentalProtection Class: IEC IP68 NEMA 1,3,4,6PTemperature Rating: -40Deg C to 80Deg C to (-40Deg F to 176Deg F)Approvals(Cable) UL: PLTC 75Deg C Sunlight Resistant E90625 AWM 80Deg C 300V(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75Deg C AWM I/II A/B 80C 300V FT4NMEA: NMEA 2000 Approved
Manufacturer Part Number: CM-CG1-CF-00.5
Internal Code: 31797
Brochure:
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
Micro Double-Ended Cordset 0.5MMechanicalContact Carrier Mat/Color: Thermoplastic PUR/Blue-GrayMolded Body Mat/Color: Thermoplastic PUR/Blue-GrayContact Mat/Plating: Brass/GoldCoupling Nut Mat/Plating: Brass/NickelConnector Outside Diameter: 0.59" ElectricalCurrent Rating: 4.0 AmpsVoltage Rating: 250 V CableOuter Jacket Mat/Color: PVC/GrayConductor Insulation Material: HDPE (data pair) SRPVC (power pair)Number of Conductors: 4X22 AWG 22 AWG Drain WireShielding (3-Levels): FOIL (Overall) FOIL (Power Pair) FOIL (Data Pair)EnvironmentalProtection Class: IEC IP68 NEMA 1,3,4,6PTemperature Rating: -40Deg C to 80Deg C to (-40Deg F to 176Deg F)Approvals(Cable) UL: PLTC 75Deg C Sunlight Resistant E90625 AWM 80Deg C 300V(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75Deg C AWM I/II A/B 80C 300V FT4NMEA: NMEA 2000 Approved
Manufacturer Part Number: CM-CG1-CF-00.5
Internal Code: 31797
