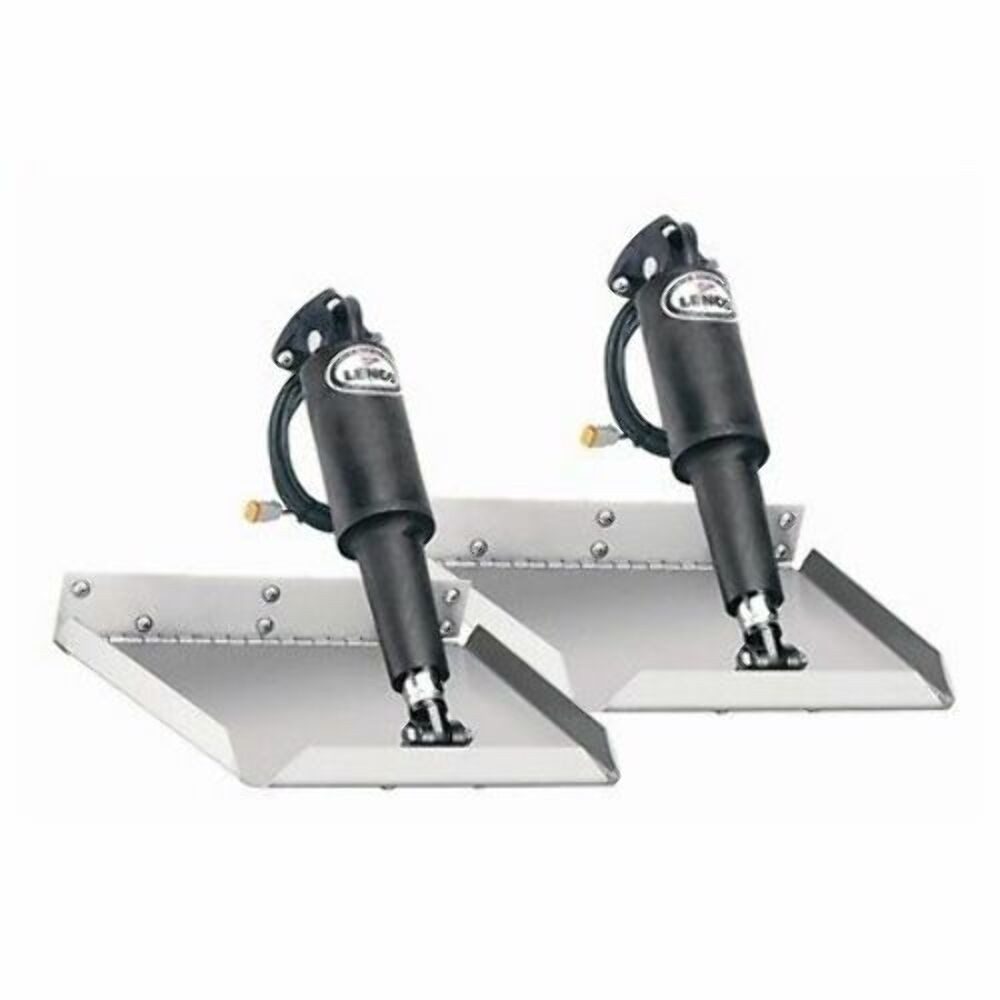

Lenco 15015-101 Edge Mount Trim Tab Kit 12"Lx9"W Actuator 12V w/out Switch Boat

BRAND: Lenco

DESCRIPTION:
- Edge Mount Trim Tab Kits 12-Volt Standard Finish Blades
- SWITCH KITS SOLD SEPARATELY
- Boat Length:14'-18'
- Hinge Height Minimum:  2"
- Transom Height:11"

FEATURES of all Edge Mount Trim Tab Kits:
- Designed for boat applications where a lower actuator mounting height is desirable.
- Actuator mounts at the trailing edge of the blade giving it a ½” lower mounting height on 9” long blades & 3” lower mounting height on 12” long blades.
- All edges are turned up for added strength and style.
- Boat lengths 14’ to 36’

KIT INCLUDES:
(2) 12-gauge laser cut 304 stainless steel blades with 1” turned up edges, a 5 degree taper on both sides to the trailing edge, & 1/8” diameter hinge pin
(2) 15054-001 actuators with 6' leads and Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses - 20’ length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Owner’s/installation manual
Stainless steel mounting hardware

Manufacturer PN:15015-101
Internal Code:252344
