Product Description
BRAND: Lectrotab
DESCRIPTION:

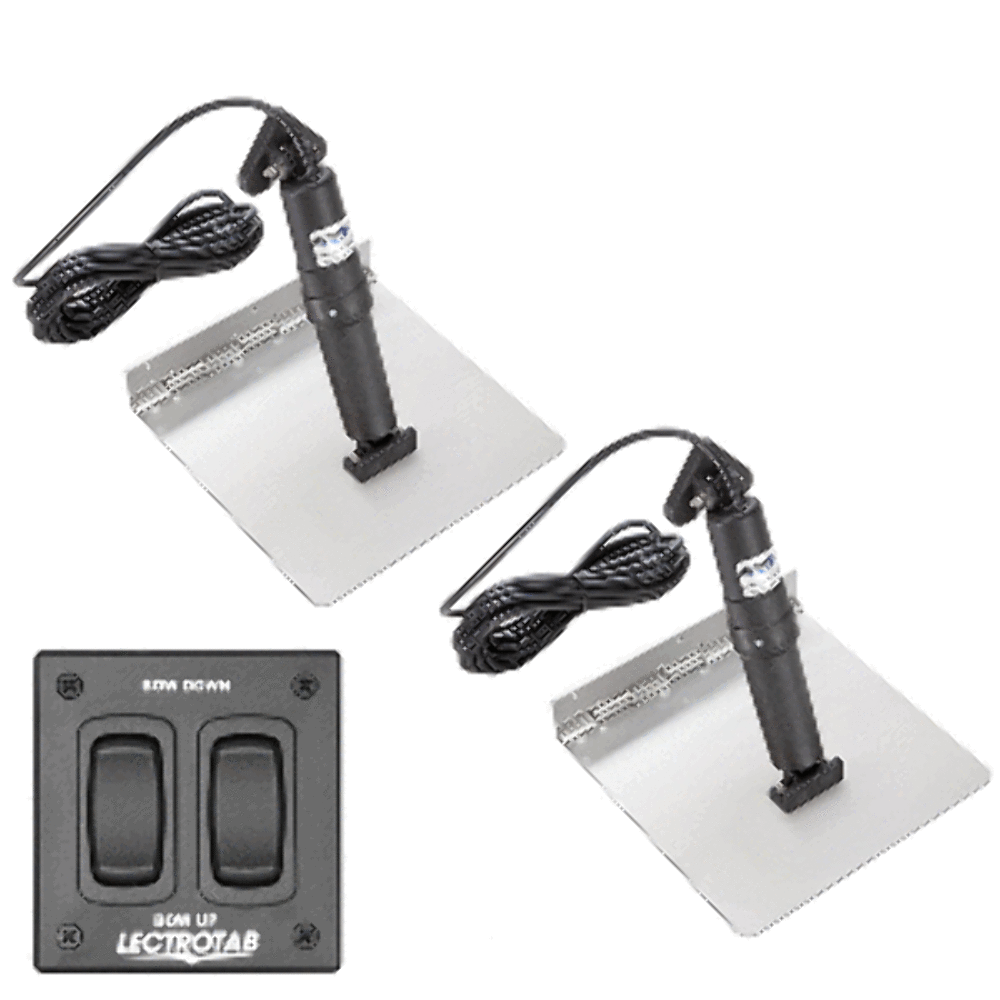

XKA St Steel Trim Tab Kit with Rocker Switch 9 x 12The Lectrotab St Steel trim tab design provides unmatched strength and reliability. All St Steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. Combined with a precision-engineered actuator this kit is built to combine quiet operation with a non-hydraulic maintenance free design. The unit is corrosion free ensures very accurate tab positioning provides maximum lift force and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly unlike hydraulic trim tabs there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released thus preventing actuator over-run.Features:Continuous rolled and pinned hinge provides added strength and eliminates the need for weldingUpper ram seal location cannot be damaged due to fouled ram or barnacle growthUtilizes internal pressure equalization systemInternal brake system prevents unwanted tab movement when under way or backing downQuiet operationActuators are fully load tested to push 1000 lbs of forceNon-metallic external structure which cannot corrode and will not deteriorate in the sun or under waterTechnical Specifications:Trim Tab Size (L x W) 9" x 12" (23 x 30 cm)Boat Length 16' to 25' (5 to 7.5 M)Trim Tab Material 12 gauge 304 St Steel Actuator DC Voltage 12 VActuator Stroke Length 2.25" (57 mm)Actuator Cable Length - 23' (7 M)Actuator Vertical Height 11.875" (302 mm)Rocker Switch Dimensions (W x H) 3.125" x 3.25" (79.4 x 82.5 mm)Rocker Switch Mounting Hole Cutout (H x W) 2.25" x 2" (57.5 x 50 mm)Rocker Switch Operating Voltage 12 or 24 VIn the Box:One (1) Flat Rocker SwitchTwo (2) St Steel tabsTwo (2) actuators w/23' (7 M) cablesInstruction Manual *Sold as a Kit
Manufacturer Part Number: XKAF9X12
Internal Code: 96263
Brochure: https://productimageserver.com/literature/brochure/96263BR.pdf
Instalation Guide:
Video:
