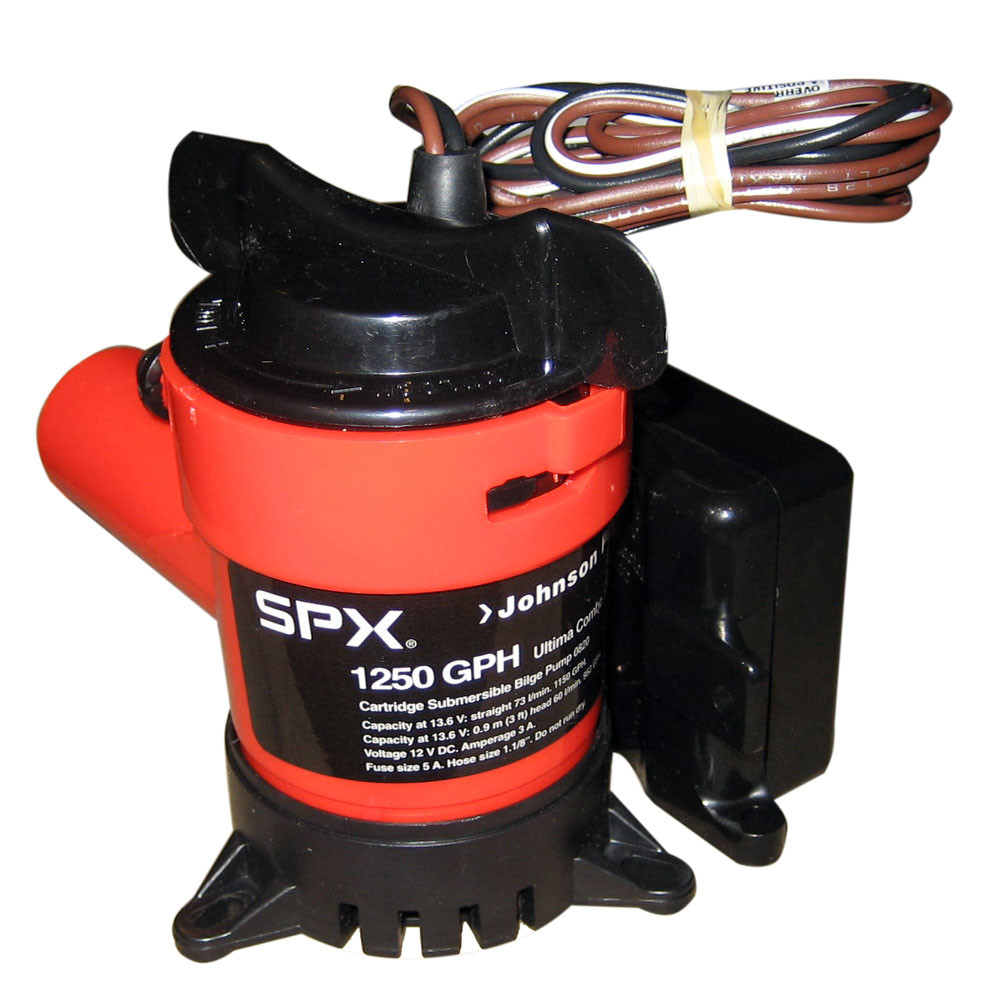

Johnson Pump 1250 GPH Ultima Combo Pump 1-1/8" Hose 12V 08203-00 Boat Marine

1250 GPH Ultima Combo Automatic Submersible Bilge Pump 12V

Johnson Pump Marine Ultima Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with the non-clogging electronic switch Ultima Switch for automatic operation. The electronic automatic switch Ultima Switch uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by level of water present in the bilge and automatically activates and deactivates the pump.

CE-Approved

Features:

• Pre-configured with an electronic Ultima Switch for automatic operation
• Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH
• Extremely energy efficient
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
• No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
• 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90deg smooth elbow Dura-Port as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Pump body: Thermoplastic
• Shaft seal: Lip seal
• Shaft: Stainless steel
• Voltage: 12v
• Wire size: 16GA
• Hose size: 1-1/8"
• Does not include Dura-port connection

Specifications

• Capacity 3ft (0.9 m) head (13.6V/27.2): 60 l/min 952 GPH
• Capacity straight (13.6V/27.2V): 73 l/min 1150 GPH
• Amperage: 3 A
• Fuse size: 5 A
• Connection: 1-1/8""
• Length: 4.41" (112 mm)
• Width: 4.25" (108 mm)
• Height: 3.35" (85 mm)
• Weight: 16 oz.
