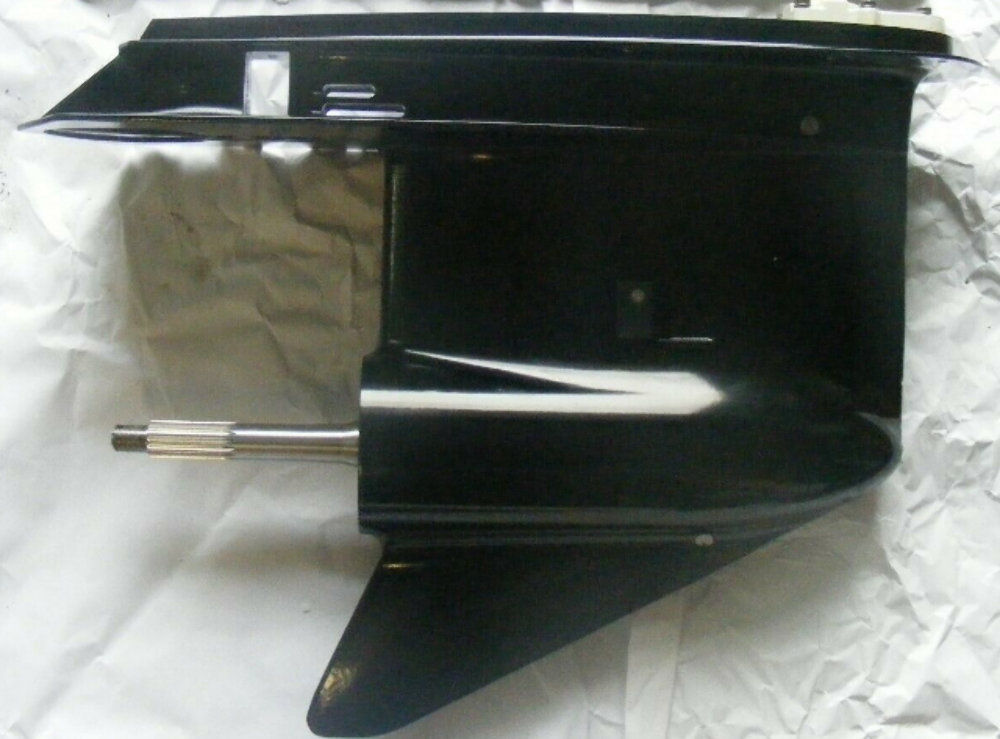

Johnson Evinrude 90-100-105-115-120-125-130-135-140 Lower Unit Foot Etec AF 2.25

DESCRIPTION:
- aftermarket LOWER UNIT.
- Design to fit MANY BUT NOT ALL engine V4 from 90 to 140HP, years 1992 & UP, using large gearcase with 4.75" bullet diameter and 15 splines prop shaft. (same size as V6 lower units.)
- Gear Ration 2.25:1

DRIVESHAFT NOTES:
- This lower unit DOES NOT include the upper driveshaft and the water pump.
- You will use your upper driveshaft, water pump and shift rod. If your old unit has a one piece shaft you will need to purchase an upper driveshaft.
- Uses the newer style stubshaft with a clip. If your upper shaft is not the newer style you will need to replace it.
- If you want a lower unit with drivesahft and water pump, we have it in another  listing.

DESCRIPTION AND INFORMATION:
- Fits 20" or 25" midsections.
- 15 spline propeller shaft for 15 spline propellers for large propellers above 14" diameter.
- 4-3/4" Oustside diameter in the bullet (behind the propeller)
- Gear ratio 2.25:1   Designed for V4 engines with large gearcase.
- Fits V4 Johnson/Evinrude with 4-3/4" bullet diameter (same as V6 case) and 15 splines.

FEATURES AND NOTES:
- Uses the Ocean Pro style water intakes
- Does not include Upper driveshaft. If your old unit has a one piece shaft you will need to purchase an upper driveshaft. Available in our ebay store.
- We use the newer style stubshaft with a clip. If your upper shaft is not the newer style you will need to replace it.
- Our unit does not include a Water Pump. Please scroll down to purchase the Water Pump Kit.
- Our unit does not include the shift shaft. You will need to install your old one and adjust it.
- You will need to use a 1991 or newer prop thrust washer.
- You may paint the unit to match your Outboard

APPLICATION LIST FOR "L" ENGINES OR 20" MIDSECTION:
