Johnson Evinrude 90-100-105-115-120-125-130-135-140 Lower Unit 25" L 1991-05 EI
$1,272.45
Product Description

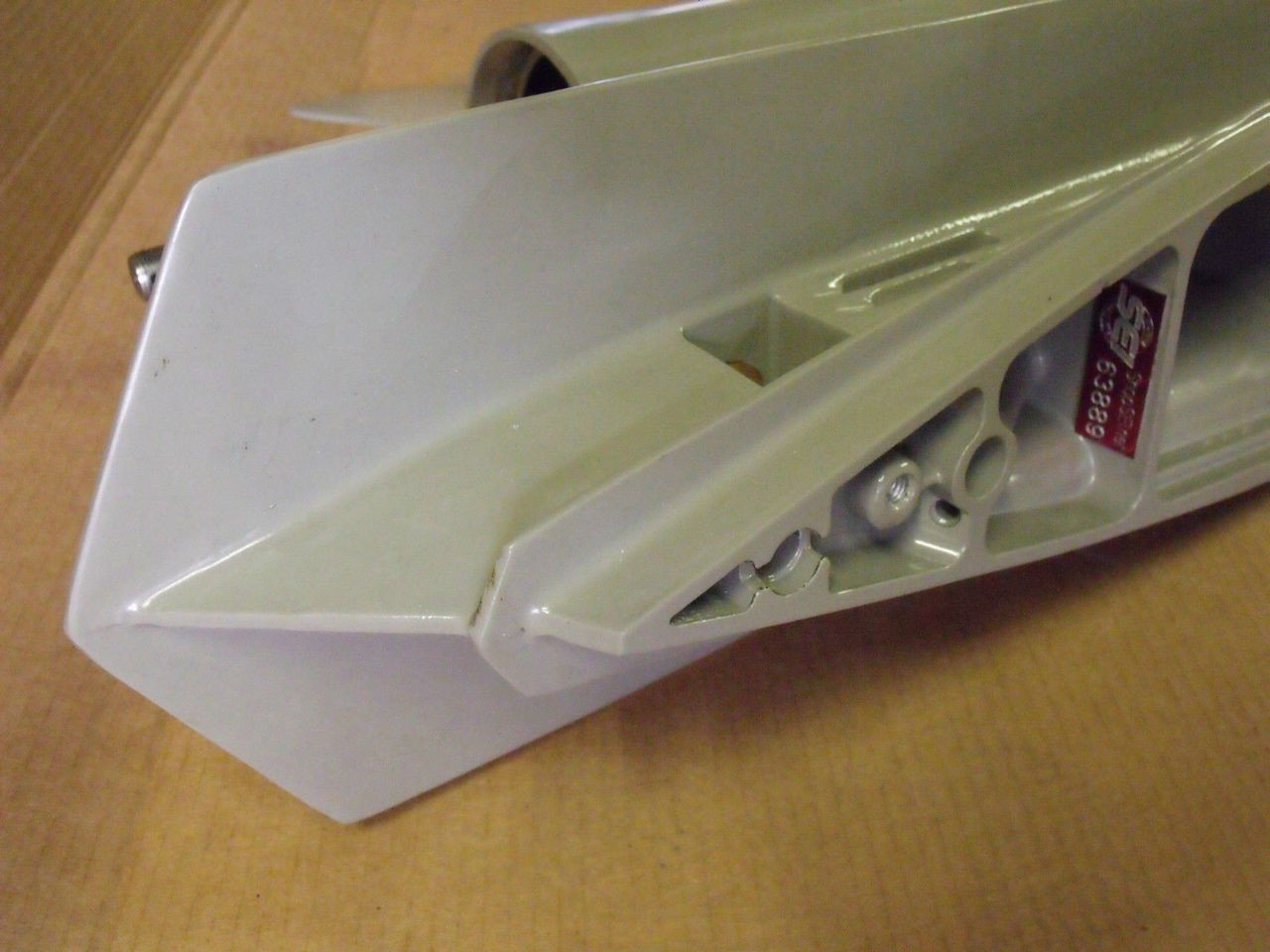

- NEW Johnson Evinrude 100-120-125-130-135-140 Lower Unit 25" Gearcase 1991 & UP EI Right Hand, Standard Rotation.
- NEW aftermarket LOWER UNIT.
- Design to fit MOST BUT MAYBE NOT ALL engine V4 from 90 to 140HP, years 1992 to 2005. Ready to be install once you receive it...
- This is a V4 lower unit with large gearcase housing (like V6) with gear ratio for V4.
- DOUBTS?? SEND US YOUR ENGINE MODEL NUMBER......
- 3 year NO fault warranty in the USA........
- Once you pay the order, we will install a NEW 20" or 25" driveshaft according to the length of your midsection. Then, we install a NEW water pump kit, pressure test and ad NEW Sierra gearcase oil. Then, we ad 2 coats of paint, waiting 24 hours per coat for perfect drying and finally create a custom box.
- SET UP PROCESS TAKES 3-4 DAYS.
- Please see important measurement below for fitting.
- General Information:
- 20" driveshaft for 20" midsections.
- 15 spline propeller shaft for 15 spline propellers.
- Gear ratio 2.25:1
- Designed for V4 engines with large gearcase 4 3/4 diameter in t he bullet or propeller with diameter above 14"
- IMPORTANT DIMENSIONS for you to compare to your lower unit:
- Drive shaft measurements:
- From top of lower unit housing (same as the bottom of water pump) to top of drive shaft 21 1/4 or 26 1/4". if your drive ends on 3/4 or 7/8 this lower unit do not fit (you need older style 1978 to 91), but we have those as well.
- Propeller shaft with 15 splines. Propeller bullet 4 3/4 external diameter.
- Shifter rod is not that big deal as you can use ours or yours.
