Johnson Evinrude 75-90-100-115-130-AA-AB-AF Lower Unit RH 25"Shaft 95&UPgearcase

LOWER UNIT COLOR NOTE:
- Lower unit comes NOW painted BLACK paint
- You may paint them to match your motor.

PLEASE SEND US A MESSAGE WITH YOUR ENGINE MODEL NUMBER.
We cannot ship until you get your model number or we are sure this lowe runit fits your engine. We want to avoid returns for not fitting as lower units and boxes get damaged

DESCRIPTION:

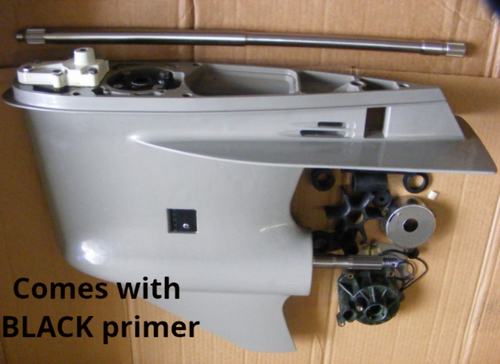

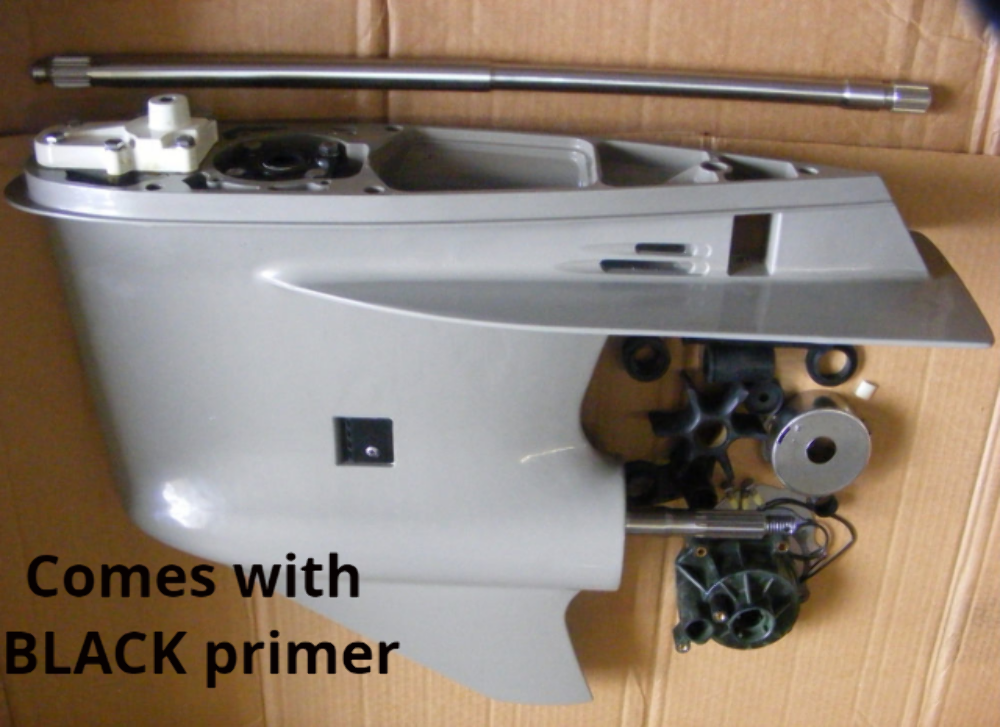

This Kit includes:
- 1 lower unit or gearcase
- 1 upper driveshaft for 25" engines
- 1 water pump

IMPORTANT NOTE: (Some assembling required)
You or your mechanic can assemble it.  Is simple: 1) Insert by hand the upper driveshaft and hit with a hammer for it to clip into the lower driveshaft locking sleeve. 2) Install the water pump. 3) screw in your old shifter rod and adjust it.  3) fill with oil.  4)  Optionally, paint the housing. (lower unit comes Black)

SPECIFICATIONS AND INSTALATION NOTES:
- Propeller shaft: 13 splines.
- Propeller bullet: 4-1/8" external diameter.
- Gear ratio: 2:1
- You will need to use a 1991 or newer prop thrust washer. You can use your old one whne installing the propeller.
- Replaces Johnson Evinrude 5004632
- On 2007 and Newer 115 and 130 HP motors you will need to remove the clips on the driveshaft before installing your shaft into the new unit.

APPLICATION:
Design to fit MOST BUT MAYBE NOT ALL engines:
Johnson Evinrude 3 Cyl and V4, most engines 75-90-100-115-130HP
For V4 engines, only 60 Degree engines powerhead.  Does NOT fit in 90 degree powerheads.
Most engines1995 & UP

Need more info?
Send us a message with engine model number
If necessary txt or what ap +1 (954) and also 610 and finally 0765
Send us a message, we answer quickly.

Satisfaction guaranteed in all products we sell.
Returns in lower unit for NOT fitting have restocking fees of 20%.
Please provide your engine model number (Serial number for Mercury).  Make sure you are ordering the correct lower unit for your engine.
Returns: 14 days for money back ONLY for NEW CONDITION and UNINSTALLED lower units.
