Product Description
BRAND: Iris Innovations
DESCRIPTION:

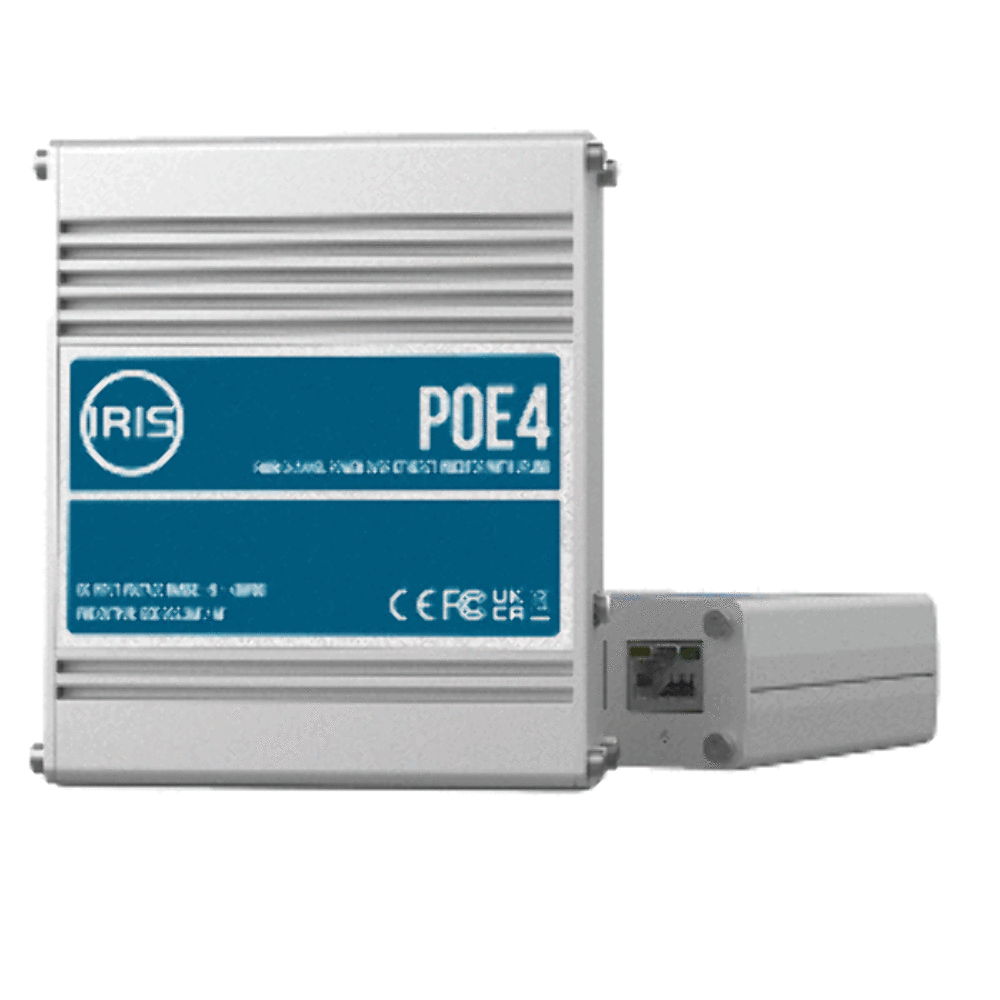

Four Channel Uplink Power Over Ethernet Switch IEEE802.3af & 3at Compliant 9-30VDC Input 48VDC OutputThe new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3afor 3at devices from battery sources such as boats and vehicles.The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port providing power to up to 4 devices at 15W each 2 devices at 30W each or 1 device at 30W and further 2 devices at 15W.The unit features a passive uplink port to enable connections to other network switch equipment routers or modems.The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices reducing cost and adding convenience.Features:Compact and robust housingWide input voltage range of 930VDCPerfect for boats and vehicles60W power budgetIEEE802.3af / 3at compliantUp to 30W per channelPlug and play operation no configuration required48VDC PoE output voltage to your devicesProvides power to devices up to a 100-meter cable lengthSimplifies installationsSpecifications:Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mmMaterial: Aluminium soft anodizedPoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)Total PoE Budget: 60W across 4 PoE PortsMaximum Cable Length: 100 MetersApprovals / Standards CE UKCA FCC IC REACH RoHS WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10Input Voltage Range: 9 30 VDCOutput Voltage: 48 VDCPower Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106WEnvironmental: IP30 Install in a dry dust free environment. Do not expose to moisture.
Manufacturer Part Number: POE4V2
Internal Code: 99651
Brochure:
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
Four Channel Uplink Power Over Ethernet Switch IEEE802.3af & 3at Compliant 9-30VDC Input 48VDC OutputThe new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3afor 3at devices from battery sources such as boats and vehicles.The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port providing power to up to 4 devices at 15W each 2 devices at 30W each or 1 device at 30W and further 2 devices at 15W.The unit features a passive uplink port to enable connections to other network switch equipment routers or modems.The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices reducing cost and adding convenience.Features:Compact and robust housingWide input voltage range of 930VDCPerfect for boats and vehicles60W power budgetIEEE802.3af / 3at compliantUp to 30W per channelPlug and play operation no configuration required48VDC PoE output voltage to your devicesProvides power to devices up to a 100-meter cable lengthSimplifies installationsSpecifications:Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mmMaterial: Aluminium soft anodizedPoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)Total PoE Budget: 60W across 4 PoE PortsMaximum Cable Length: 100 MetersApprovals / Standards CE UKCA FCC IC REACH RoHS WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10Input Voltage Range: 9 30 VDCOutput Voltage: 48 VDCPower Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106WEnvironmental: IP30 Install in a dry dust free environment. Do not expose to moisture.
Manufacturer Part Number: POE4V2
Internal Code: 99651
