Product Description
Brand: Humminbird

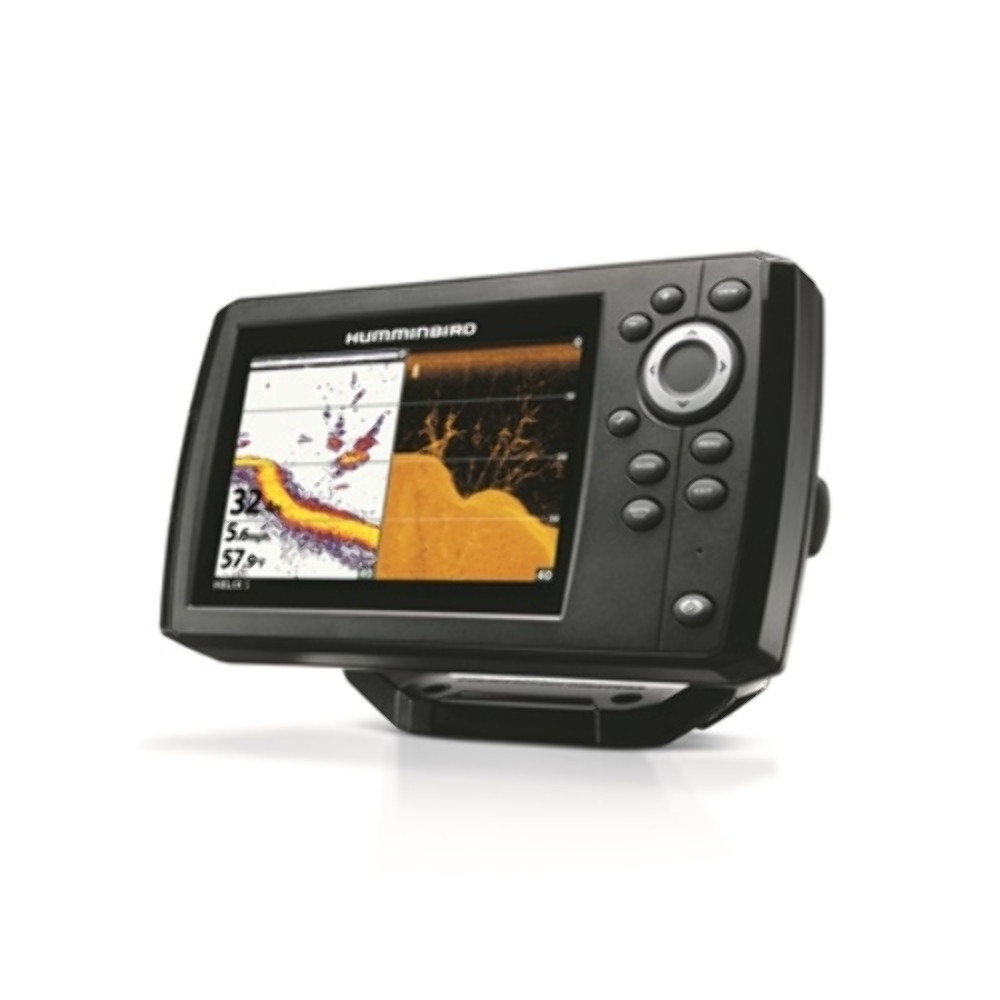

Description: HELIX 5 DI G2
- Display: 5” Diagonal 800H x 480V, Color TFT 500 watts (RMS), 4000 watts (PTP)
- Sonar: Down Imaging (350 ft), DualBeam PLUS (600 ft).
Features, Included:
• SwitchFire Sonar
• Custom View Selection
• Temperature Alarm
• Split Screen Zoom
• Split Screen Bottom
• Wide/Narrow Cone Lock Split Screen
• Custom Digital
• Instant Image Readout Update
• Large Digits View
• Freeze Frame
• Selective Fish ID+
• Real Time Sonar
• X-Press Menu System
Specification and more information:
* Display Size - Diagonal: 5".
* Display Pixel Matrix: 800H X 480V.
* Display Type: Color TFT.
* Display Colors Grayscale: 16-bit.
* Sonar Standard: Down Imaging/DualBeam PLUS.
* Standard Sonar Coverage: 16°, 28°, 45° & 75° @ -10db.
* Standard Sonar Frequency: 455/800/200/455 kHz.
* Sonar Optional: None.
* Target Separation: 2.5".
* Power Output RMS: 500 Watts.
* Power Output Peak to Peak: 4000 Watts.
* Depth Capability: 350 ft (DI) & 600 ft (2D).
* Temperature: Built-In Transducer.
* Speed: Optional.
* Backlight: LED.
* Unit Size - Gimbal Mount: 7.55"W x 4.64"H x 3.3"D.
* Unit Size - Indash Mount: 7.55"W x 4.28"D x 1.13"D.
* Mounting Options: Gimbal or Optional In-Dash.
* Transducer Standard: XNT 9 DI T.
* Transducer Mounting: Transom.
* Power Input: 10.8-20 VDC.
* Power Draw: 650 mA.
* PC Connect: Optional.
* SwitchFire Sonar: Included.
* Humminbird PC: Optional.
* Upgradable Internal Software: Optional.
* Split Screen Zoom: Included.
* Split Screen Bottom Lock: Included.
* Large Digits View: Included.
* Wide/Narrow Cone Split Screen: Included.
* Custom View Selections: Included.
* Custom Digital Readout: Included.
* Temperature Alarm: Included.
* Freeze Frame: Included.
* Instant Image Update: Included.
* Selective Fish ID+: Included.
* Real Time Sonar: Included.
* Triplog: Optional.
* X-Press Menu System: Included.
* Card Reader Available: No.
Manufacturer PN: 410200-1
Internal Code: 4023405
Returns IN NEW ITEMS accepted in 30 days"""ONLY""" if they have NOT being installed and are in similar condition as when
they were shipped. If you missed parts of the item, item CANNOT be returned.
